Vortech 2008 Bullitt V-3 Si-Trim "V-Power" System (Satin)

SKU: VOR-4FU218-050L

Manufacturer: Vortech

7118.99 $

Be the first to review this product

Availability: In stock

Free Shipping on this item!

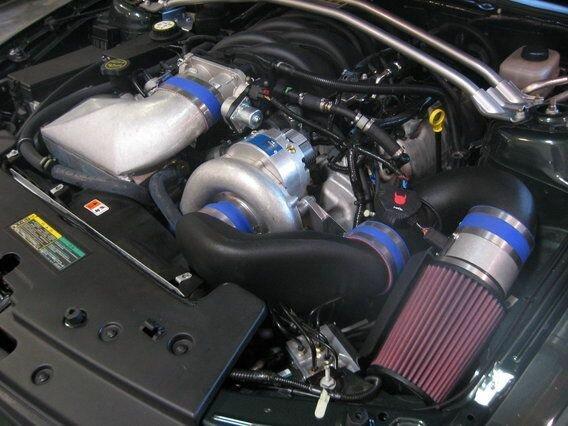

Vortech 2008 Bullitt V-3 Si-Trim "V-Power" System (Satin)

*image is only a representation and may not be accurate
Vortech 2008 Bullitt V-3 Si-Trim "V-Power" System (Satin)

V-3 Si-Trim

Boost Pressure:
-10-11 PSI at redline
-3.60" drive pulley

8-rib supercharger drive design allows for maximum belt traction and stability
-Maintains the factory automatic drive belt tensioner.
-Includes OEM quality A/C pulley, power steering pulley, alternator pulley, idlers and crank damper pulley

Supplied Diablosport Predator programmer re-flashes the ECM with a safe, custom Vortech calibration for 91-octane fuel. Other benefits include:
-Live data monitoring and diagnostics
-Logging capability
-Reading and resetting DTC?s

Fuel system upgrade includes:
-High flow 60 lb/hr replacement fuel injectors
-255 lph "in-tank" fuel pump with harness. Used in conjunction with the OEM in-tank pump to provide a dual-pump configuration.

Air inlet assembly includes:
-Roto-molded ducts
-Silicone sleeves
-Stainless steel clamps
-98 mm MAF meter housing with filter
-Diablosport MAF interface adapter for extended meter range
-Air filter and shield

Includes replacement engine coolant pipes and hose assemblies
Billet aluminum supercharger mounting bracket assembly includes idlers, drive belt and all hardware

Large charge cooler assembly includes:
-Welded charge cooler core (*new* 5.46" x 11" air-side face x 4" thick) assembly with cast tanks -Molded silicone discharge elbow, Vortech race compressor bypass valve, silicone sleeves and stainless steel clamps
-Charge cooler surge tank with hoses, clamps and plumbing
-High-flow Bosch water circulation pump for closed loop cooling
-Large capacity, dual pass water cooler. Dual pass design and increased volume allows for increased heat exchange and improved performance during extended heavy throttle operation.

Installation time is rated at 10-13 hours

Please Note:
=-Supercharged horsepower and torque data shown is a calculated estimate based on percentage increases from actual rear wheel hp/tq measurements. Higher boost and power levels are available for modified engines.

Due to the fuel system design on this vehicle, special ECM reprogramming will be required when additional aftermarket parts are added such as an MAF meter, enhanced air inlet ducting, smaller supercharger drive pulleys, large diameter headers/exhaust etc.

2008 Bullitt models require REV. N/D-10 programmer #5A003-035
CARB E.O. number is pending
Warranty Information
1-Year Supercharger Limited Warranty Included with all superchargers except race/heavy-duty models. More information (PDF).
3-Year Supercharger Limited Warranty
Included with engine-oil-fed superchargers if purchased with a complete street-legal system. Not available with tuner kits. Available with V-3 systems for an additional $50.00. More information (PDF).
3-Year/36,000-Mile Powertrain Limited Warranty
Available with complete street legal systems sold and installed by a Vortech Top-Tier Installer. Not available with tuner kits. More information.
Manufacturer Vortech
Free Shipping Yes

Write Your Own Review

Only registered users can write reviews. Please, log in or register

  • Mustang GT 2005,2006,2007,2008,2009
