The ZT-2 Datalogging system gives nGauge users an affordable, easy to use, Plug-n-Play option for Advanced Datalogging. The ZT-2 allows users to log many sensors right on the device, including: wideband (Air/Fuel Ratio), Boost, fuel pressure, ethanol percentage, and many other 0-5V sensors. With the ZT-2 system, the user will have the ability to view any of these external sensors in real time on the Gauges screen of the nGauge, as well as record them in datalogs with the touch of a button. Installation takes just minutes by hooking up a 12V power and ground wire.
Supported Sensors for Logging:
Wideband (Air/Fuel Ratio)
Boost/Vacuum
Exhaust Gas Temperature
Throttle Position
Ethanol Percentage
0-5 Volt Sensors
Air/Fluid Temperature
Oil/Fuel Pressure

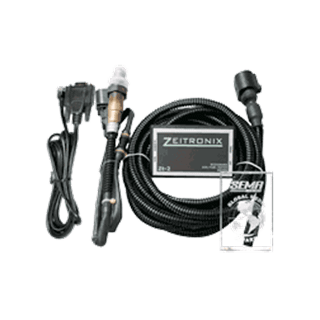

Included Items:
Wideband Oxygen Sensor
Datalogging Controller
Wiring Hardware
Datalogging Software
