Zone Offroad 19-24 RAM 3500 4.5 Inch Radius Arm 3 Inch Rear Block Without Overload Diesel 8-Bolt T-Case Fox Adventure Shocks Radius Arm Bracket Diesel 8-Bolt T-Case Nitro Shocks - ZOND84F
Take your RAM 3500 to new heights with this 4.5 Inch radius arm lift kit from Zone Offroad. Kits include everything needed from full length coil springs and heavy duty radius arms to steering correction and rear lift to level the stance.
Get the look, performance, and capability your truck deserves with clearance for up to 37 Inch tires.
Quick Specs:
- Front Lift Height 4.5 Inch
- Rear Lift Height 2 Inch or 3 Inch
- Material Steel
- Front Lift Method Coil Springs
- Lift Type Suspension
- Wheel Size 20 x 9
- Back Spacing 5.5 Inch
- Max Tire Size 3 37 x 12.5
- Wheel Size 2 18 x 9
- Back Spacing 2 5.5 Inch
- Max Tire Size 2 37x 12.5
- Wheel Size 3 20 x 9
- Back Spacing 3 4.5 Inch
- Max Tire Size 3 37 x 12.5
- Finish Powdercoat
Features:
- High strength progressive rate front coil springs for a great ride on any terrain
- Heavy duty 1/4 Inch Inch steel, laser cut, internally gusseted radius arms improve strength, offer more ground clearance and correct caster
- HD track bar relocation bracket to correctly position front axle under the truck
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and t-case indexing ring to correct front driveline angles
- Nitro series gas or FOX adventure series IFP gas shocks to improved ride and offroad performance
- Allows clearance for up to 37 tires

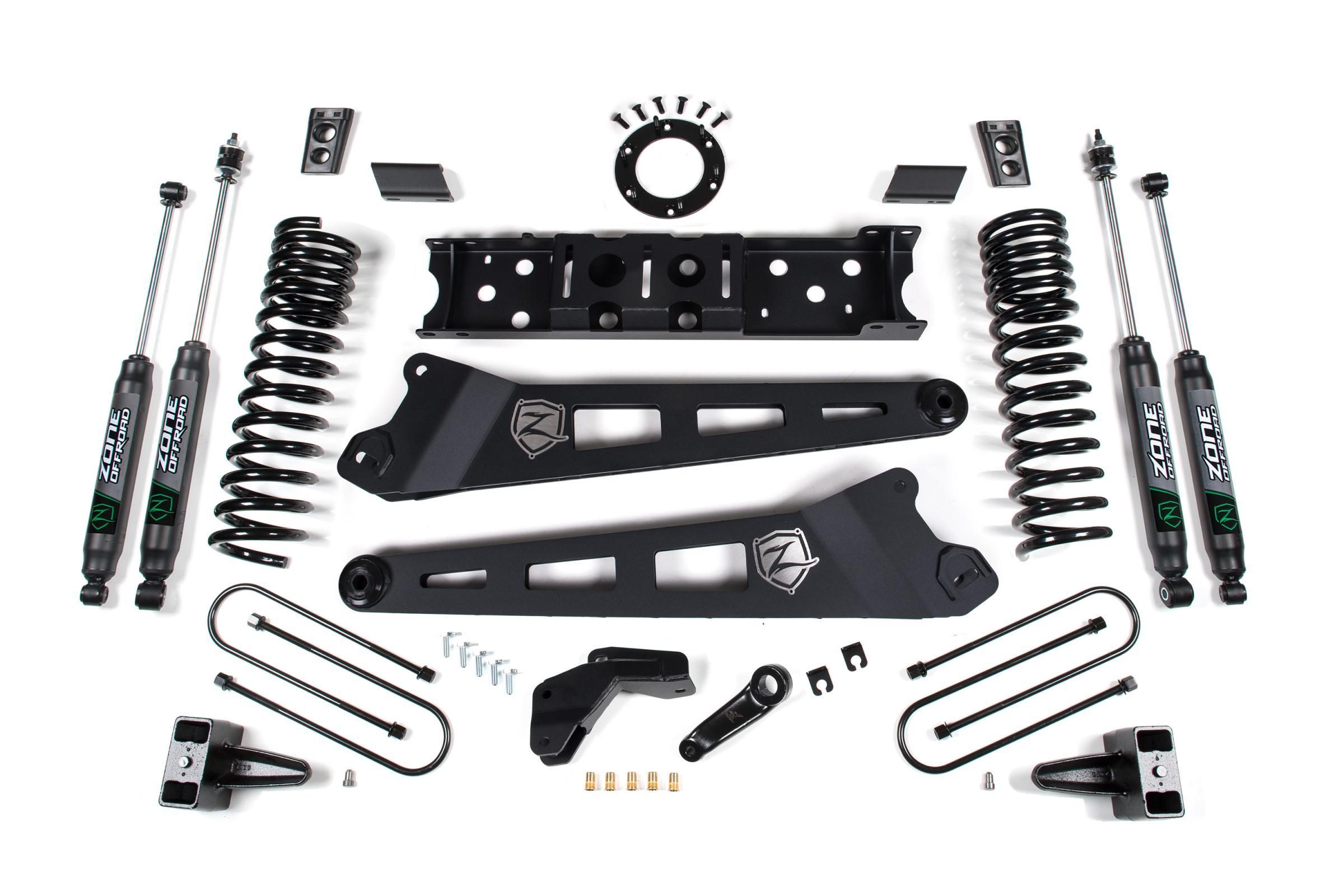

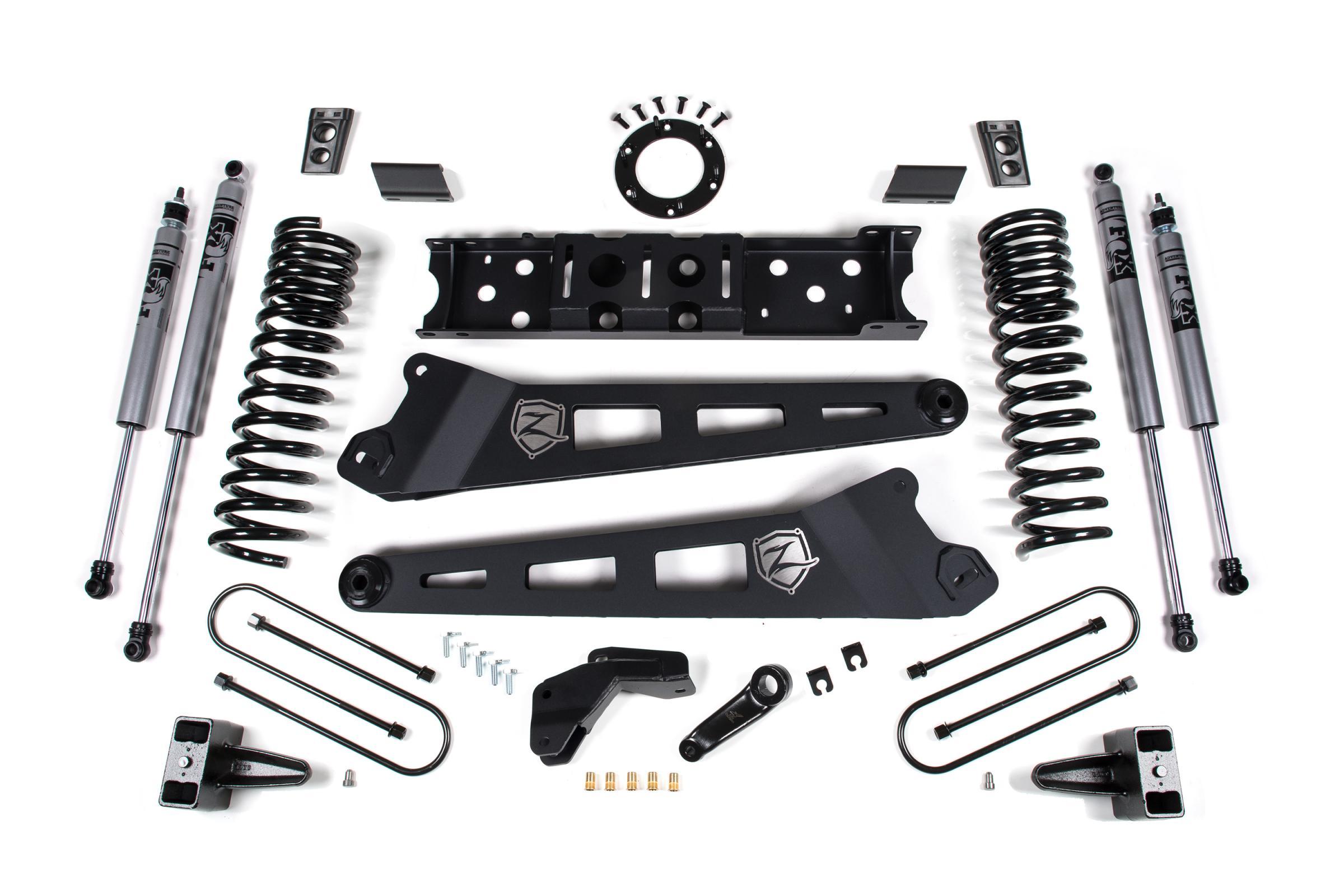

Kit Components:
- FOX98450700 Fox Adv Shock 25.64 x 16.05 x 2-S50/EB1 2 810156368189
- FOX98450759 Fox Adv Shock 30.05 x 18.46 x 2-EB1/EB1 2 810156368066
- ZOND1305 19-24 RAM 3500 3 Inch Rear Box Without Overload 1 711745605978
- ZOND1403 19-24 RAM 2500 / 19-24 RAM 3500 4.5 Inch Replacement Radius Arm Box Kit 1 711745594289
- ZOND1410 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Replacement Radius Arm Box Kit 2 711745594296
- ZOND3401 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Coils 4.5 Inch Diesel 5.5 Inch Gas 2 711745598560
- ZOND5823 19-24 RAM 3500 T-Case Index Kit 8 Bolt 1 711745606050
