Zone Offroad 99 K1500 00-06 Silverado/Sierra 1500 6 Inch Lift Kit Fox Adventure Shocks - ZONC3F
Ready for the big time? Then this is your 6 Inch Lift Kit. Designed for easy installation, value, reliability, and to stand out, which is easy when you can clear 3 Inch Inch tires.
Get the look and performance you want out of your 4WD 1999 - 2006 Chevy/GM 1500 Truck.
Quick Specs:
- Front Lift Height 6 Inch
- Rear Lift Height 5 Inch
- Front Lift Method Torsion Bar Drop
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size 16 x 8
- Back Spacing 4.5 Inch
- Max Tire Size 3 Inch x 12.5
- Wheel Size 2 17 x 9
- Back Spacing 2 5 Inch
- Max Tire Size 2 3 Inch x 12.5
- Wheel Size 3 Inch20 x 9
- Back Spacing 3 Inch5.75 Inch
- Max Tire Size 3 Inch3 Inch x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels No
- Welding Required Yes

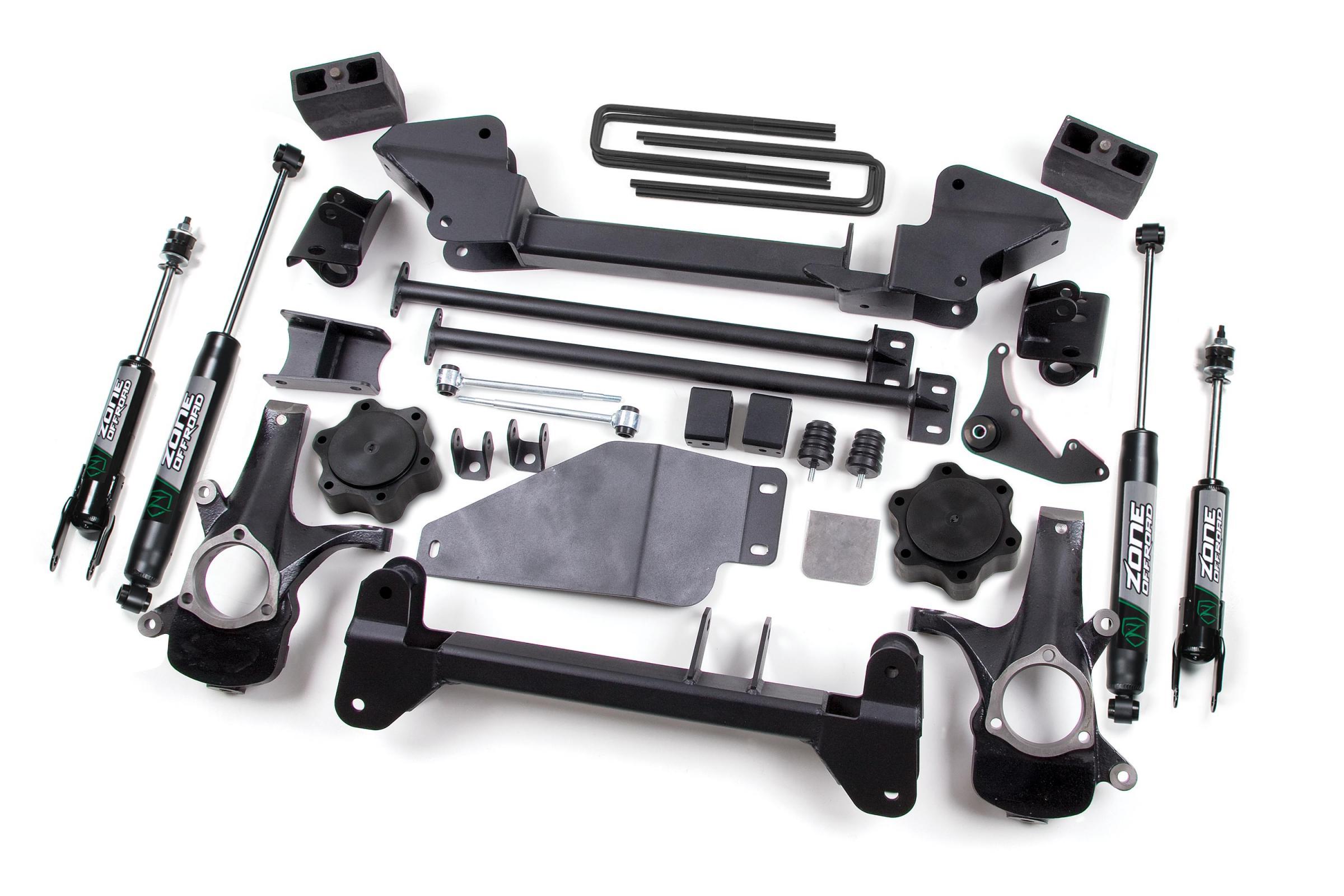

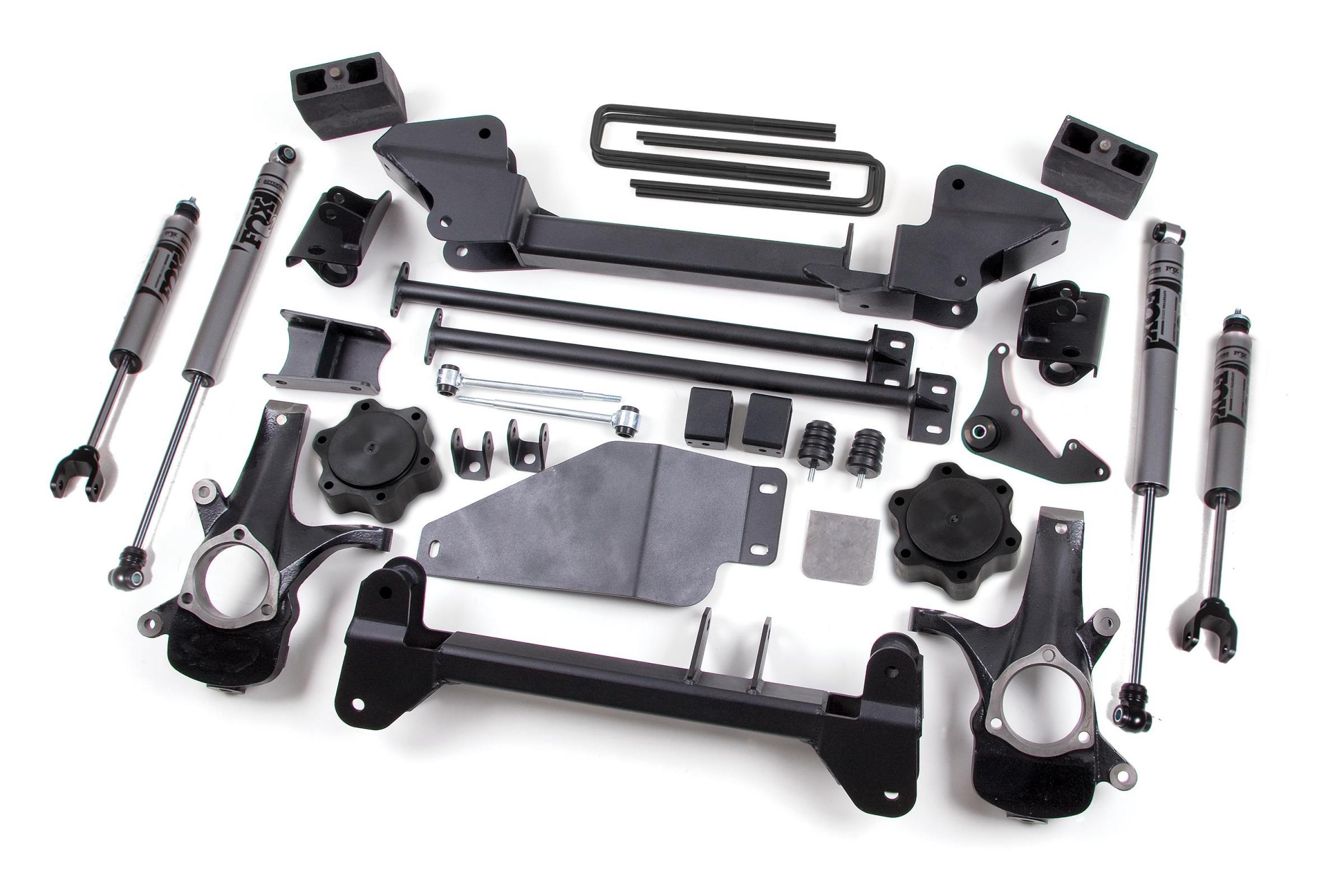

In The Box:
- All Necessary Mounting / Installation Hardware
- Crossmembers
- CV Axle Spacers
- Differential Drop Brackets
- Rear Lift Block & U-Bolt Kit
- Skid Plate
- Steering Knuckles
Features:
- Heavy-duty differential skid slate improves offroad protection.
- High-strength, 1/4 Inch steel construction crossmembers correct lower control arm geometry.
- High-strength, CNC machined, replacement Steering Knuckles improve strength while correcting steering angles.
- Multi-point differential relocation brackets secure front differential for improved CV operating angles.
- Rear crossmember support kickers add overall strength and rigidity to system.
Kit Components
- FOX98450602 Fox Adv Shock 21.73 x 14.63 x 2-S50/Clev 2 810156368059 FOX98450759
- Fox Adv Shock 30.05 x 18.46 x 2-EB1/EB1 2 810156368066
- ZONC2610 99-06 GM K1500 6 Inch Box Kit (1of3) 1 711745597044
- ZONC2611 99-06 GM K1500 6 Inch Box Kit (2of3) 1 711745597051
- ZONC2612 99-06 GM K1500 6 Inch Box Kit (3of3) 1 711745597068
