Zone Offroad 88-98 K1500/K2500 92-97 Yukon 95-98 Tahoe 6 LUG 4WD 6 Inch Lift Kit With Nitro Shocks - ZONC14N
Turn heads and drop jaws when you lift your Chevy with this 6 Inch Lift Kit. This kit has everything you need to clear 35 Inch tires and all the pieces and parts for optimal steering and drivetrain geometry.
Fits 4WD 1988-1998 Chevy/GM K1500 truck & SUVs.
Features:
- Heavy-duty differential skid slate improves offroad protection.
- High-strength, 1/4 Inch steel construction crossmembers correct lower control arm geometry.
- Lift system does not change the front track width of the vehicle.
- Multi-point differential relocation brackets secure front differential for improved CV operating angles.
- Relocation bracket allows for reinstallation of the factory spare tire.
- Upper control arm relocation brackets correct front suspension geometry.
Quick Specs:
- Front Lift Height 6 Inch
- Rear Lift Height 5 Inch
- Material 1/4 Inch Steel
- Front Lift Method Torsion Bar Drop
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size Stock
- Back Spacing Stock
- Max Tire Size 35 x 12.5
- Wheel Size 2 17 x 9
- Back Spacing 2 6 Inch
- Max Tire Size 2 35 x 12.5
- Wheel Size 3 20 x 9
- Back Spacing 3 6 Inch
- Max Tire Size 3 35 x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels Yes
- Welding Required No

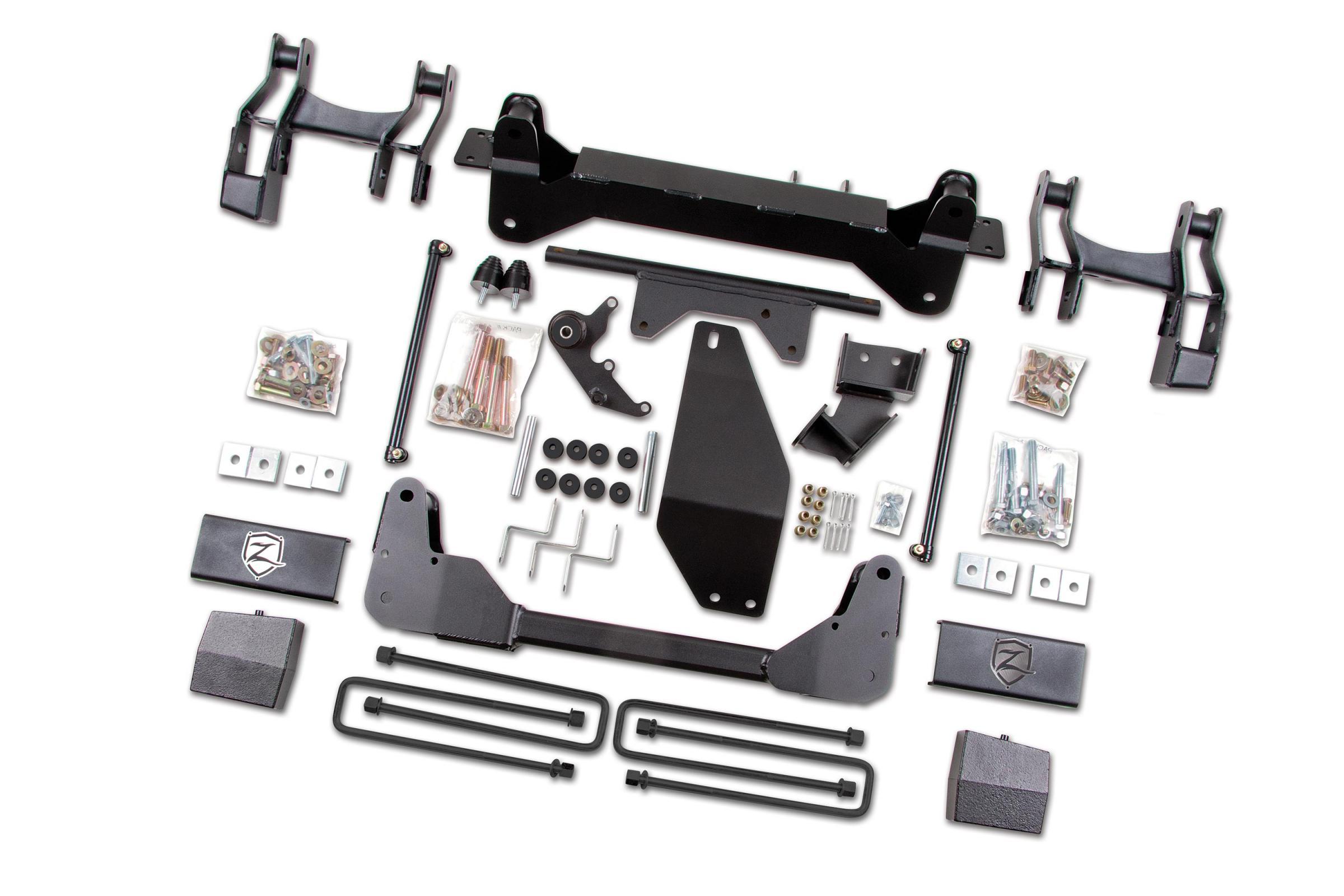

In The Box:
- All Necessary Mounting / Installation Hardware
- Differential Drop Brackets
- Frame Crossmembers
- Rear Lift Block & U-Bolt Kit
- Skid Plate
- Tie Rod End Adjuster
- Torsion Bar Crossmember Drop Brackets

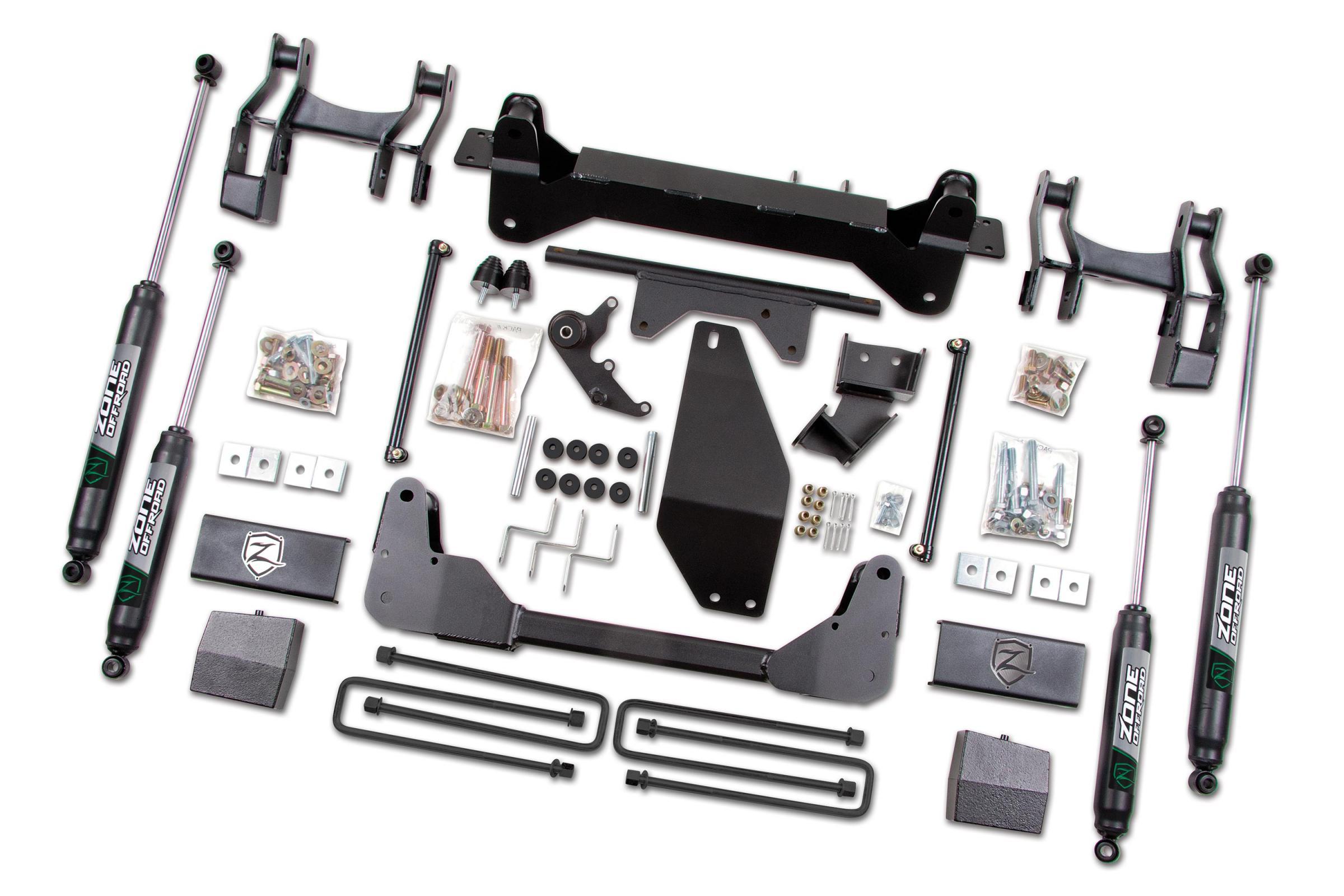

Kit Components:
- ZON7600 Nitro- 24.80 x 14.80 x 2 EB1/EB1 2 711745595286
- ZON7609 Nitro- 30.95 x 18.15 x 2-3/8 BP8/EB1 2 711745595354
- ZONC2640 1988-1998 Chevy/GMC1500 6 Inch Front Box (1of3) 1 711745597235
- ZONC2641 1988-1998 Chevy/GMC1500 6 Inch Front Box (2of3) 1 711745597242
- ZONC2642 1988-1998 Chevy/GMC1500 6 Inch Front Box (3of3) 1 711745597259
- ZONC2649 1988-1998 Chevy/GMC 1500 5.0 Inch Rear Box Kit 1 711745597297
