Zone Offroad 4 Inch Leaf Spring Lift Kit 88-91 Chevy 1/2 Ton SUV 4 Inch Lift Kit - ZONC15N
With ample additional ground clearance and room for up to 35 Inch tires, you'll be well-equipped for a trip down the road less traveled with this 4 Inch Lift Kit, complete with leaf spring & block lift kit for your classic 1988-1991Chevy/GM K1500 SUV.
Features:
- Brake line relocation brackets allow re-use of factory brake lines.
- Heavy-duty replacement front leaf springs provide lift and great ride quality.
- High-strength, black e-coated U-bolts.
- Rear lift block and longer U-bolts for easy installation and level stance.
- Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.
Quick Specs:
- Front Lift Height 4 Inch
- Rear Lift Height 4 Inch
- Front Lift Method Leaf Springs
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size 15 x 8
- Back Spacing 3.5 Inch
- Max Tire Size 35 x 12.5
- Wheel Size 2 16 x 8
- Back Spacing 2 3.5 Inch
- Max Tire Size 2 35 x 12.5
- Wheel Size 3 Inch17 x 9
- Back Spacing 3 4.5 Inch
- Max Tire Size 3 285 / 75
- Is Adjustable No
- Cutting Required No
- Accommodates Factory Wheels No
- Welding Required No

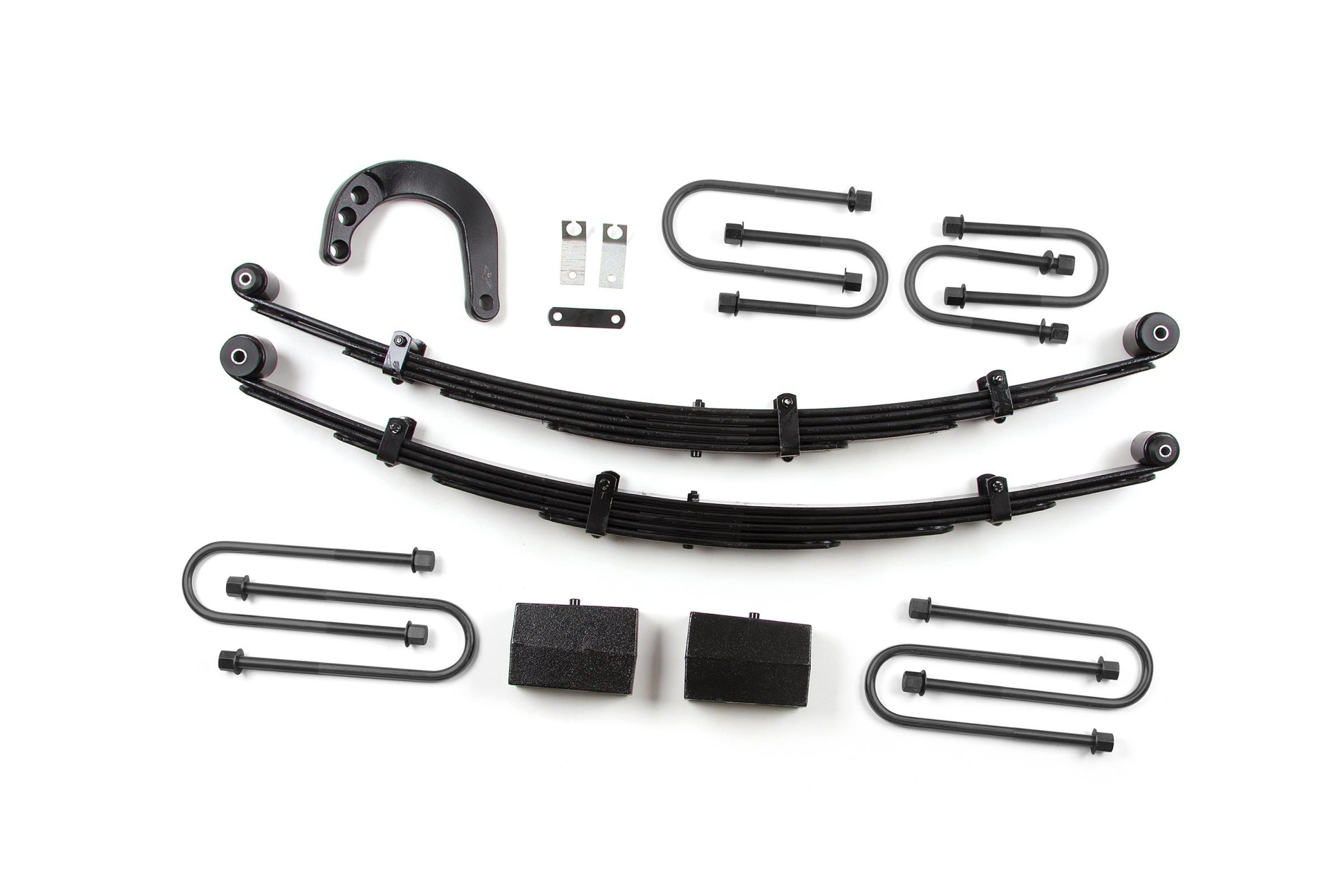

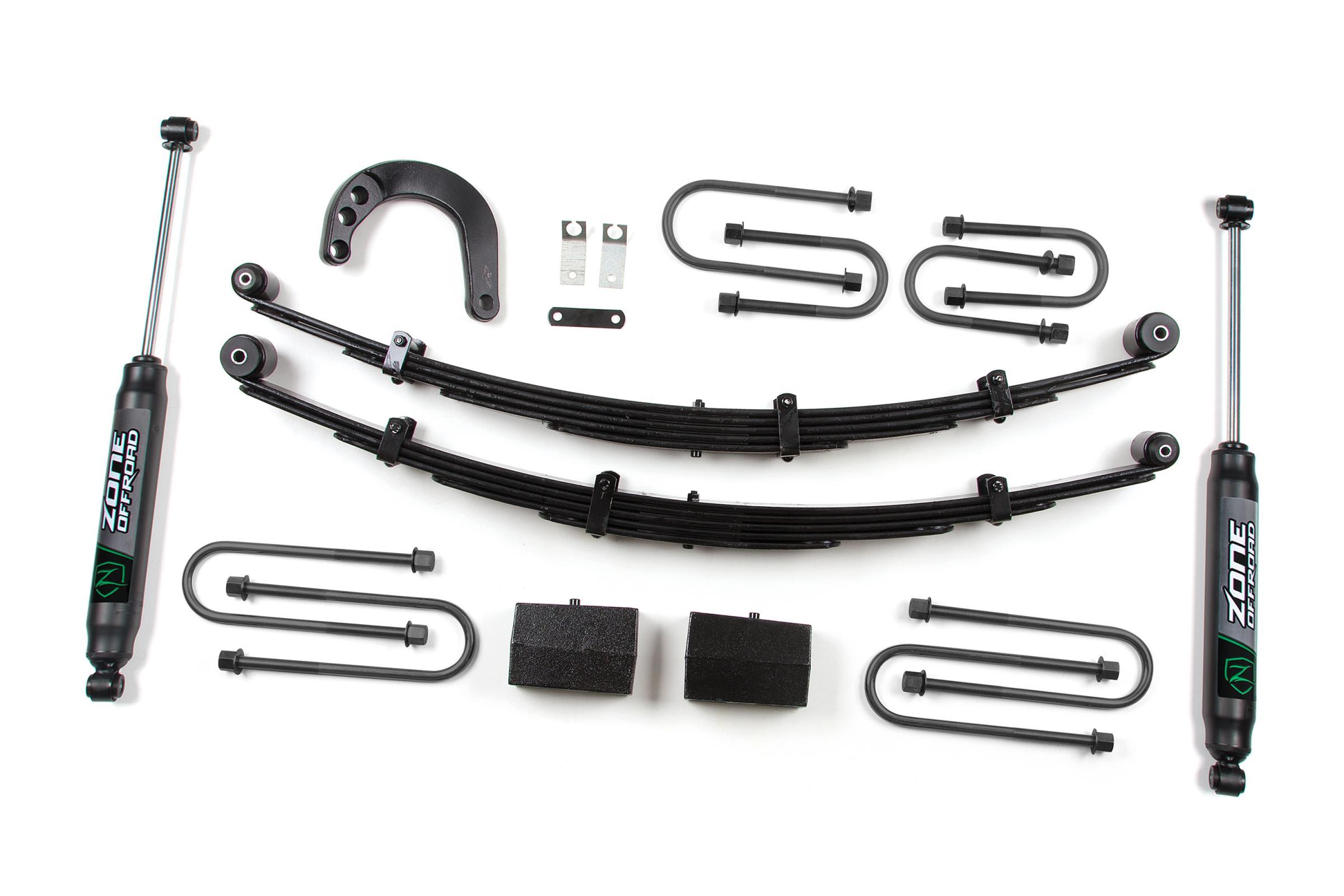

Kit Components:
- ZON7610 Nitro- 23.20 x 14.20 x 2-3/8 EB1/EB1 2 711745595361
- ZON7639 Nitro- 29.8 x 17.6 x 2-3/8 EB1/EB1 2 711745595446
- ZONC0401 1973-1987 Chevy/GMC 1500 4 Inch Front Leaf Spring 2 711745596382
- ZONC1403 88-91 Chevy 1/2 Ton 4-6 inch SUV Box Kit 1 711745596726
