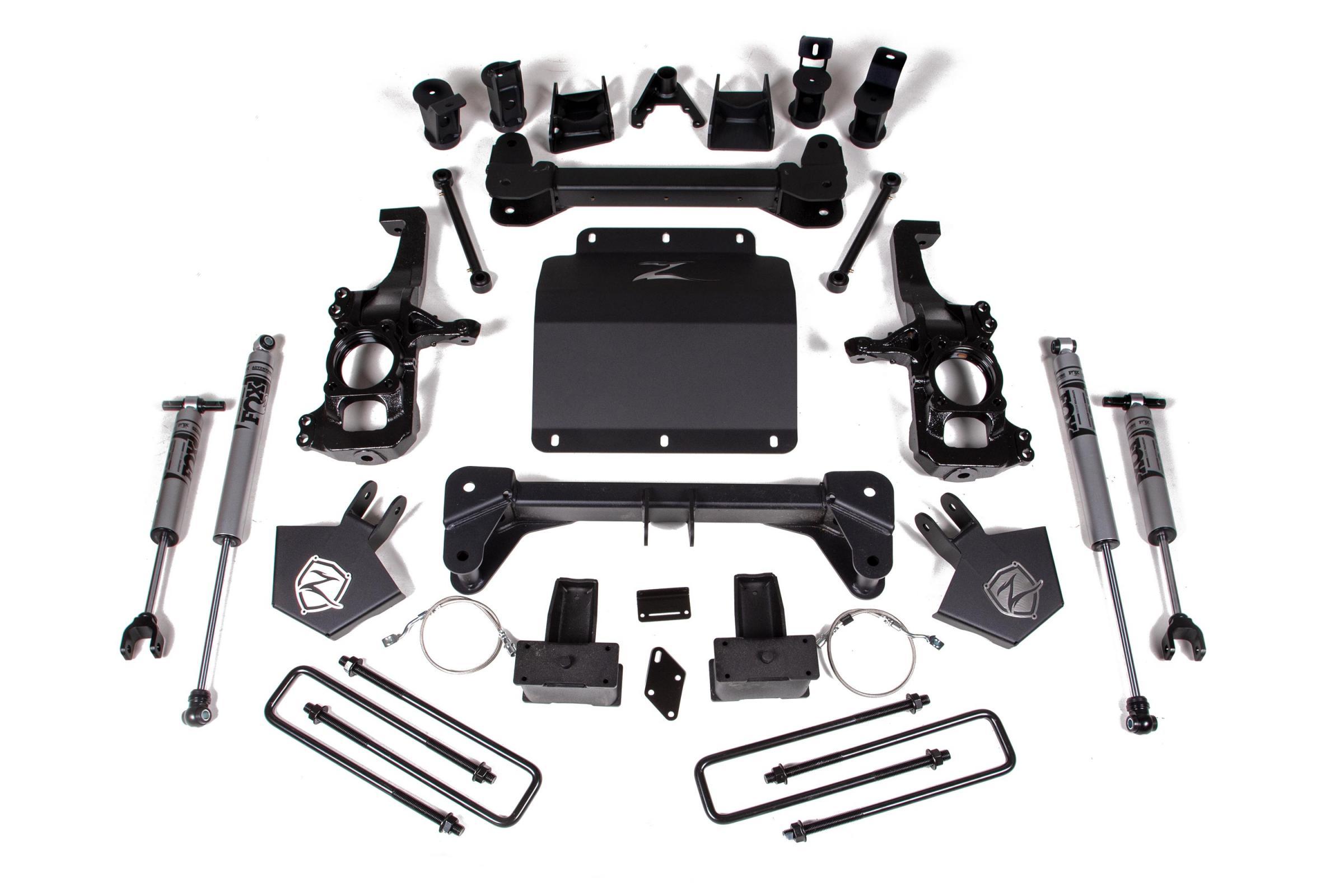

Zone Offroad 20-24 Silverado/Sierra 2500/3500 HD 5 Inch Lift Kit With Overload Fox Adventure Shocks - ZONC50F
Take your GM 2500/3500HD to new heights with this 5 Inch lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to differential relocation and and rear block kit to level out the stance.
Get the look, performance, and capability your truck deserves with clearance for up to 37 Inch tires.
Quick Specs:
- Front Lift Height 5 Inch
- Rear Lift Height 4.5 Inch
- Material 1/4 Inch Steel
- Front Lift Method Knuckle & Drop Cross-Member
- Rear Lift Method Block Kit
- Lift Type Suspension
- Wheel Size 20 x 9
- Back Spacing 5-5.5 Inch
- Max Tire Size 37x 12.5
- Wheel Size 2 20 x 10
- Back Spacing 2 5-5.5 Inch
- Max Tire Size 2 3 Inch x 12.5
- Wheel Size 3 17 x 9
- Back Spacing 3 4.5-4.625 Inch
- Max Tire Size 3 Inch3 Inch x 12.5
- Finish Powdercoat
In The Box:
- Brake Lines
- Differential Relocation Brackets
- Frame Crossmembers - Front and Rear
- Lift Blocks - Rear
- Skid Plate
- Steering Knuckles
- Sway Bar Relocation Brackets
- Torsion Bar Crossmember Drop
Features:
- Maintains ride quality and handling characteristics
- Improves ground clearance while correcting suspension-steering-driveline geometry
- High strength 1/4 Inch thick steel crossmembers and differential skid plates
- CNC machined ductile iron steering knuckles to maintain ESC System compatibility
- Zone Offroad branded front skidplate and torsion bar relocation brackets
- Allows clearance for up to 3 Inch Inch tires to be installed
Kit Components:
- FOX98450614 Fox Adv Shock 23.28 x 15.68 x 2-BP/Clevis 2 810156368097
- FOX98450759 Fox Adv Shock 30.05 x 18.46 x 2-EB1/EB1 2 810156368066
- ZONC2458 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 4.5 Inch Rear Block Kit With Overload 1 711745605923
- ZONC2500 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD Knuckle Box Kit Drv 1 711745594203
- ZONC2501 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD Knuckle Box Kit Pass 1 711745594210
- ZONC2502 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD Front Box Kit 1of3 1 711745594227
- ZONC2503 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD Front Box Kit 2of3 1 711745594234
- ZONC2504 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD Front Box Kit 3of3 1 711745594241
