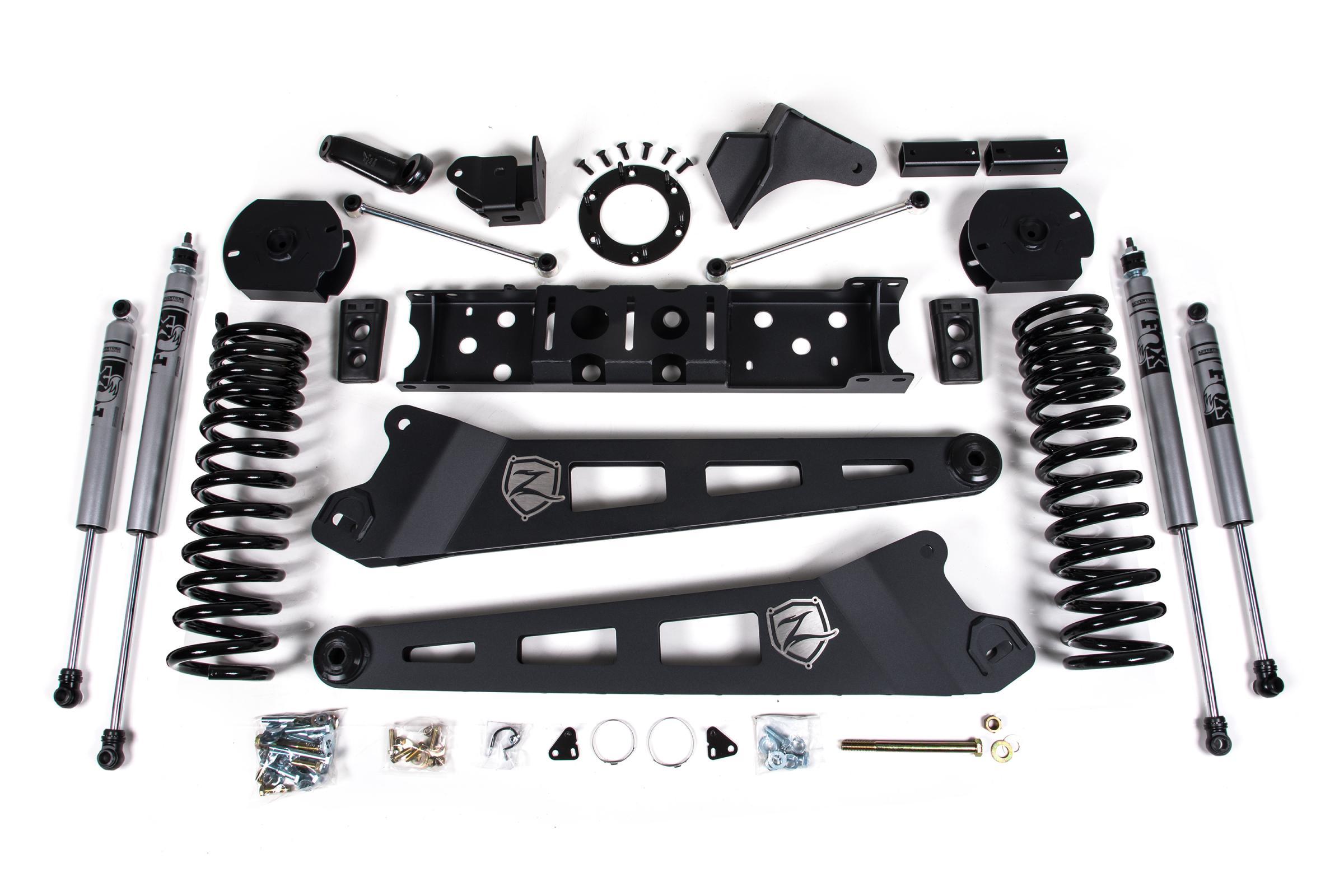

Zone Offroad 19-24 RAM 2500 4.5 Inch Radius Arm Diesel 6-Bolt T-Case Fox Adventure Shocks - ZOND78F
Up front, a pair of progressive rate, diesel-specific, 4.5 Inch coil springs provides the extra height and smooth handling in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles.
Polyurethane bump stops limit up-travel, while brake line relocation brackets will allow your suspension to easily reach Inchfull droop Inch. To correct the front suspension geometry at the new height, a pair of heavy-duty replacement radius arms is provided that bolt directly into the factory location.
These new arms are massive upgrade to the factory stamped units, built from 1/4 Inch American made steel, and internally gusseted with a lower cam adjustment to dial in front end caster.
A heavy-duty replacement transmission crossmember as well as a transfer case indexing ring repositions the front driveline output to allow use of the factory drivelines by correcting angles and allowing you to maintain use of 4WD. In the rear, 2.5 Inch heavy-duty coil spacers are supplied to level out the stance and allow you to retain factory ride quality without effecting tow capacity.
Extended rear sway bar end links and new bump stops are included to compensate for the lift, and a track bar bracket re-centers the rear axle.
Quick Specs:
- Front Lift Height 4.5 Inch
- Rear Lift Height 2.5 Inch
- Material Steel
- Front Lift Method Strut Spacers
- Rear Lift Method Coil Springs
- Lift Type Lift Kit
- Wheel Size 20 x 9
- Back Spacing 4.5 Inch
- Max Tire Size 35 x 12.5
- Wheel Size 2 20 x 9
- Back Spacing 2 5.5 Inch
- Max Tire Size 2 35 x 12.5
- Finish Powdercoat
- Cutting Required Yes
- Accommodates Factory Wheels Yes
In The Box:
- Coil Spring Spacers - Rear
- Coil Springs - Front
- Sway Bar Relocation Brackets
- Pitman Arm
- HD Radius Arms
- Track Bar Brackets - Front & Rear
Features:
- Heavy duty 1/4 Inch steel, laser cut, internally gusseted radius arms improve strength, offer more ground clearance and correct caster
- High strength progressive rate front coil springs for a great ride on any terrain
- Front and Rear HD track bar relocation brackets to correctly position both axles under the truck
- Forged drop pitman arm to correct steering angles
- HD transmission crossmember and t-case indexing ring to correct front driveline angles
- Nitro series gas or FOX adventure series IFP gas shocks to improved ride and offroad performance
- Allows clearance for up to 35 Inch tires
Kit Components:
- FOX98450700 Fox Adv Shock 25.64 x 16.05 x 2-S50/EB1 2 810156368189
- FOX98450753 Fox Adv Shock 26.85 x 16.76 x Special/EB1 2
- ZOND1258 2014-2024 Ram 2500 2.5 Inch Rear Spacer Box Kit 1 711745594272
- ZOND1403 19-24 RAM 2500 / 19-24 RAM 3500 4.5 Inch Replacement Radius Arm Box Kit 1 711745594289
- ZOND1410 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Replacement Radius Arm Box Kit 2 711745594296
- ZOND3401 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Coils 4.5 Inch Diesel 5.5 Inch Gas 2 711745598560
- ZOND5612 19-24 RAM 2500 / 19-24 RAM 3500 T-Case Index 6 Bolt Diesel 1 711745594418
