Zone Offroad 17-19 Ford F-250/350 Super Duty 6 Inch Diesel 3 Leaf Main With Nitro Shocks - ZONF52N
Take your Super Duty to new heights with this 6 Inch lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arms to steering correction and rear lift to level the stance.
Get the look, performance, and capability your truck deserves with clearance for 38 Inch tires.
Quick Specs:
- Front Lift Height 6 Inch
- Rear Lift Height 5 Inch
- Front Lift Method Coil Springs & Replacement Radius Arms
- Rear Lift Method Add-A-Leaf & Cast Block
- Lift Type Lift Kit
- Wheel Size 17 x 10
- Back Spacing 5 Inch
- Max Tire Size 38x13.5
- Wheel Size 2 18 x 10
- Back Spacing 2 5 Inch
- Max Tire Size 2 38x13.5
- Wheel Size 3 20 x 10
- Back Spacing 3.5 Inch
- Max Tire Size 38x13.5
- Cutting Required No
- Welding Required No

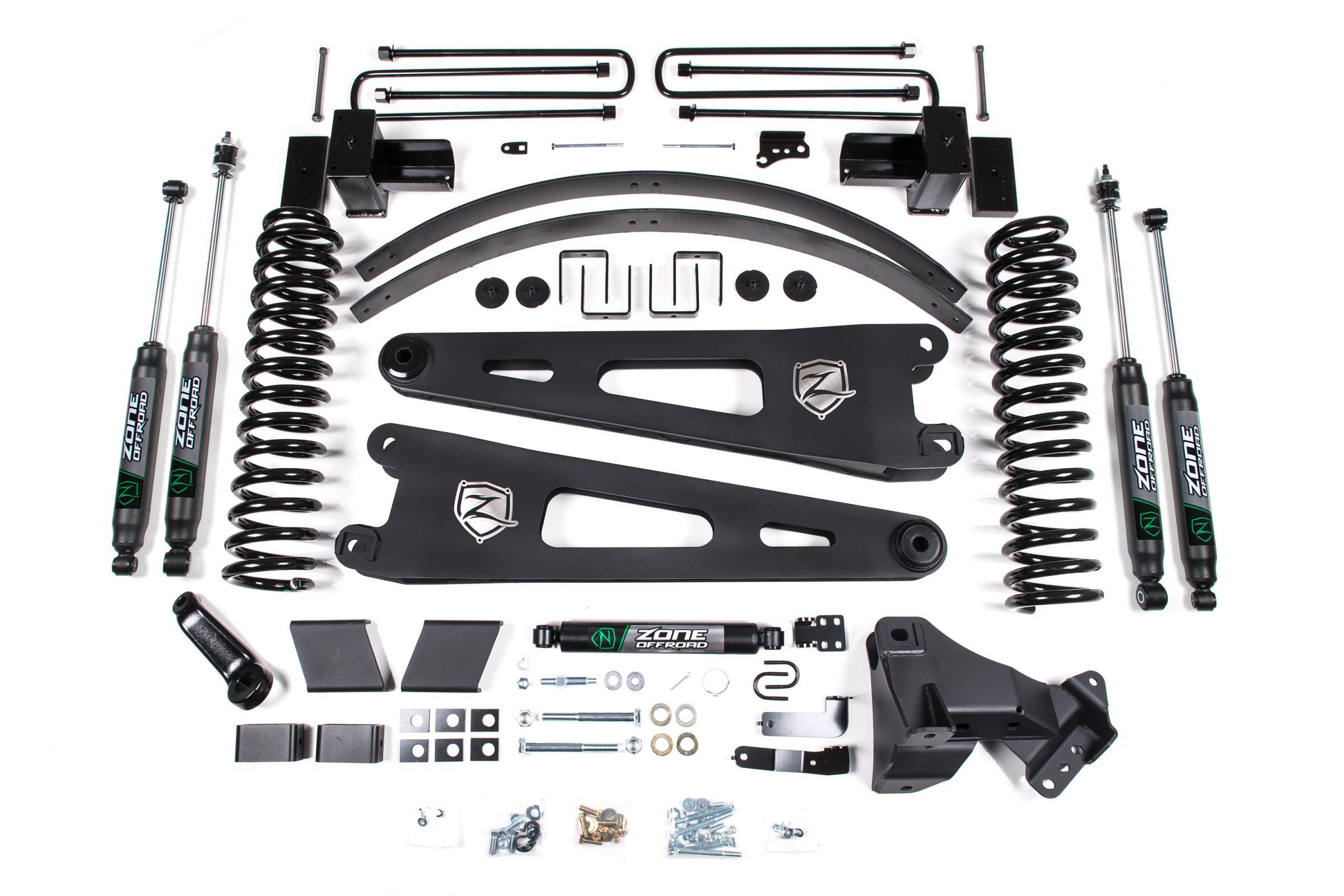

In The Box:
- Add-A-Leaf's
- All Necessary Mounting / Installation Hardware
- Coil Springs
- Dropped Pitman Arm
- Rear Lift Block & U-Bolt Kit
- Sway Bar Relocation Brackets
- Radius Arms
Features:
- High strength front coil springs improve ride quality
- HD radius arm to correct caster while maximizing ground clearance
- Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
- Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles
- Replacement rear lift blocks, add-a-leafs and u-bolts to lift and level the stance
Kit Components:
- ZON7302 2017-2024 F250 Single Stabilizer Zone 1 711745595194
- ZON7718 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595590
- ZON7752 Nitro- 26.20 x 15.60 x 2-3/8 S1/EB1 2 711745595699
- ZONF1601 2005-2022 Ford Super Duty Radius Arm (One) 2 711745599291
- ZONF1609 2017 F250 Rear 6 Inch Block Kit 1 711745599338
- ZONF1613 2005-2024 Super Duty 6 Inch Diesel Coil(one) 2 711745599369
- ZONF1614 2017-2024 Ford F250/F350 4-6 Inch Radius Arm Front Box Kit 1 711745599376
