Zone Offroad 16-23 Toyota Tacoma 4 Inch Front 3 Inch Rear Lift Kit With Nitro Shocks - ZONT8N
Take your Tacoma to new heights with this 4 Inch lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance.
Get the look, performance, and capability your truck deserves with clearance for up to 33 Inch tires.
Quick Specs:
- Front Lift Height 4 Inch
- Rear Lift Height 3 Inch
- Front Lift Method Strut Spacer & Cross-Member
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size 18 x 9
- Back Spacing 4.5 Inch
- Max Tire Size 33 x 12.5
- Wheel Size 2 20 x 9
- Back Spacing 2 4.5 Inch
- Max Tire Size 2 33 x 12.5
- Wheel Size 3 22 x 9
- Back Spacing 3 4.5 Inch
- Max Tire Size 33 x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels No
- Welding Required Yes

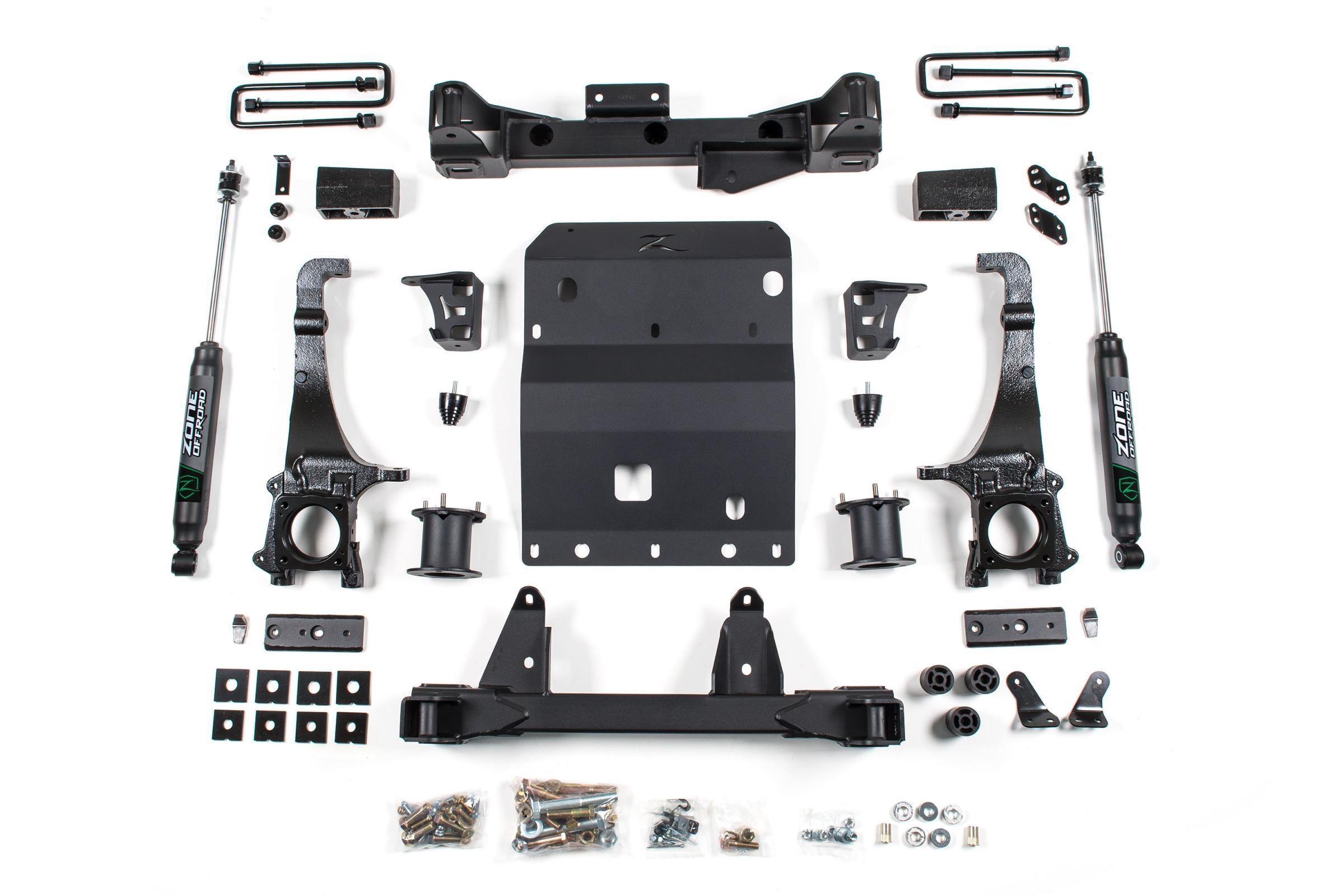

In The Box:
- All Necessary Mounting / Installation Hardware
- Crossmembers
- Rear Lift Block & U-Bolt Kit
- Steering Knuckles
- Strut Spacers
Features:
- High strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Full width belly skid plate offers improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Bump stop, sway bar and brake line relocation brackets to correct operating angles
Kit Components:
- ZON7954 Nitro- 26.50 x 15.60 x 2-3/8 S1/EB1 2 711745596092
- ZONT2309 05-23 Toyota Tacoma 3 Inch Rear Block Kit 1 711745601789
- ZONT2413 2016-2023 Toyota Tacoma Box Kit (2of3) 1 711745601826
- ZONT2600 05-23 Toyota Tacoma Box Kit (1of3) 1 711745601888
- ZONT2612 2016-2023 Toyota Tacoma Box Kit (3of3) 1 711745601925
