Zone Offroad 2012 RAM 1500 4 Inch Front 4 Inch Rear Lift Kit With Nitro Shocks - ZOND22N
Take your Ram 1500 to new heights with this 4 Inch lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear coil spacers to level out the stance.
Get the look, performance, and capability your truck deserves with clearance for up to 35 Inch tires.
Quick Specs:
- Front Lift Height 4 Inch
- Rear Lift Height 4 Inch
- Front Lift Method Upper Strut Mounts
- Rear Lift Method Coil Spacer
- Lift Type Lift Kit
- Wheel Size 17 x 9
- Back Spacing 4.5 Inch
- Max Tire Size 35 x 12.5
- Wheel Size 2 18 x 9
- Back Spacing 2 5 Inch
- Max Tire Size 2 35 x 12.5
- Wheel Size 3 20 x 9
- Back Spacing 3.5 Inch
- Max Tire Size 3 35 x 12.5
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels No
- Welding Required No

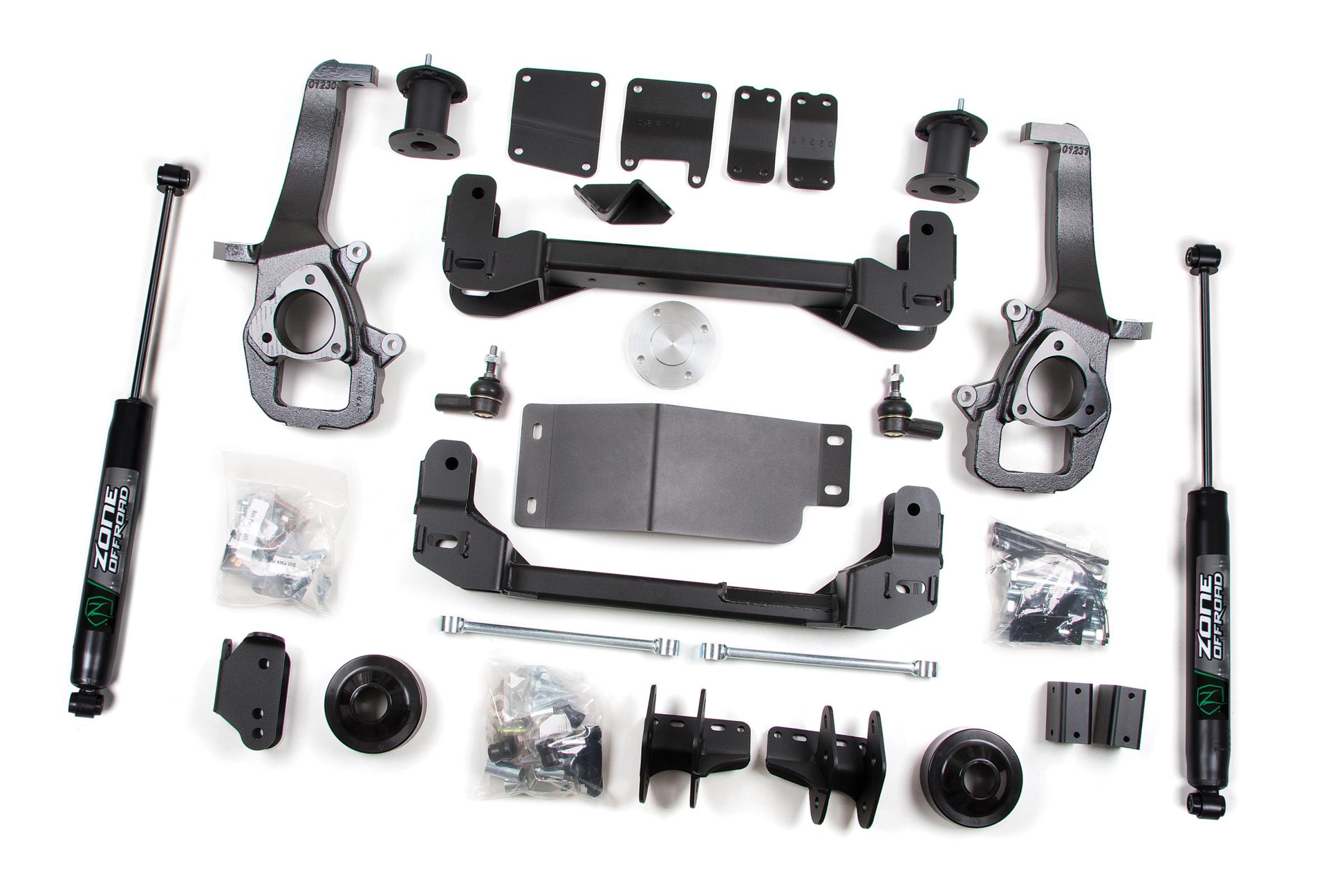

In The Box:
- Crossmembers
- Differential Drop Brackets
- Skid Plate
- Steering Knuckles
- Strut Spacers
- Tie Rod End(s)
- Two Options: Coil Springs or Coil Spring Spacers
Features:
- Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
- Heavy-duty differential skid slate improves offroad protection.
- High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
- Rear 2 Inch spacers or 3 Inch coil springs available to achieve desired stance.
- Top-mount strut spacers set ride height, maintain ride quality, and are easy to install.
Kit Components:
- ZON7757 Nitro- 27.90 x 16.55 x 2-3/8 EB1/EB1 2 711745595729
- ZOND2408 09-12 Dodge Rear Box Kit 1 711745598362
- ZOND2411 2012 Dodge 1500 4 Inch Box Kit 4 of 5 1 711745598386
- ZOND2610 06-12 Dodge Front Box (1of4) 1 711745598492
- ZOND2611 06-12 Dodge Front Box (2of4) 1 711745598508
- ZOND2612 2012 Dodge 1500 Box 3 of 5 1 711745598515
