Zone Offroad 2012 Dodge 1500 6 Inch Front 3 Inch Rear Strut Spacer Lift Kit With Nitro Shocks - ZOND19N
Ready for the big time? Then this is your 6 Inch Lift Kit. Designed for easy installation, value, reliability, and to stand out, which is easy when you can clear huge 37 Inch tires.
Get the look and performance you want out of your 4WD 2012 Dodge / Ram 1500 Truck.
Quick Specs:
- Front Lift Height 6 Inch
- Rear Lift Height 3 Inch or 5 Inch
- Front Lift Method Strut Spacers
- Rear Lift Method Coil Springs
- Lift Type Lift Kit
- Wheel Size 17 x 9
- Back Spacing 4.5 Inch
- Max Tire Size 37 x 12.5
- Wheel Size 2 18 x 9
- Back Spacing 2 5 Inch
- Max Tire Size 2 37 x 12.5
- Wheel Size 3 20 x 9
- Back Spacing 3.5 Inch
- Max Tire Size 3 37 x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels No
- Welding Required No

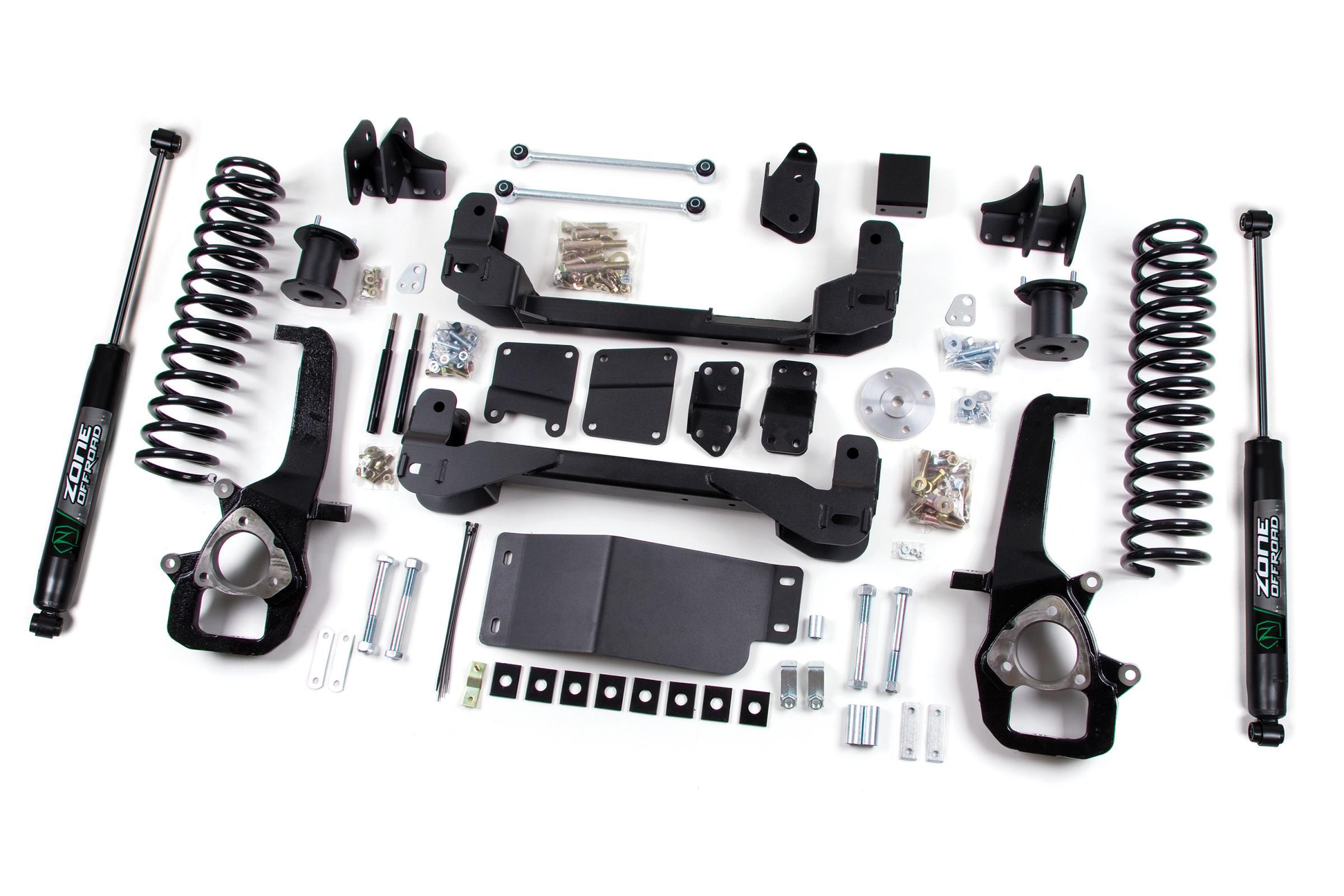

In The Box:
- Control Arm Relocation Brackets
- Crossmembers
- Differential Drop Brackets
- Skid Plate
- Steering Knuckles
- Sway Bar Links
- Tie Rod End(s)
- Two Options: Coil Springs or Coil Spring Spacers
Features:
- This kit includes a 3 Inch rear lift spring for a level rear end; a 5 Inch rear lift spring is available in a InchTail High Rear End Inch version of this kit.
- Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
- Heavy-duty differential skid slate improves offroad protection.
- High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
- Top mount strut and preload spacers set ride height and maintain ride quality.
Kit Components:
- ZON7757 Nitro- 27.90 x 16.55 x 2-3/8 EB1/EB1 2 711745595729
- ZOND2408 09-12 Dodge Rear Box Kit 1 711745598362
- ZOND2610 06-12 Dodge Front Box (1of4) 1 711745598492
- ZOND2611 06-12 Dodge Front Box (2of4) 1 711745598508
- ZOND2612 2012 Dodge 1500 Box 3 of 5 1 711745598515
- ZOND2614 2012 Dodge 1500 6 Inch Box Kit 4 of 5 1 711745598522
