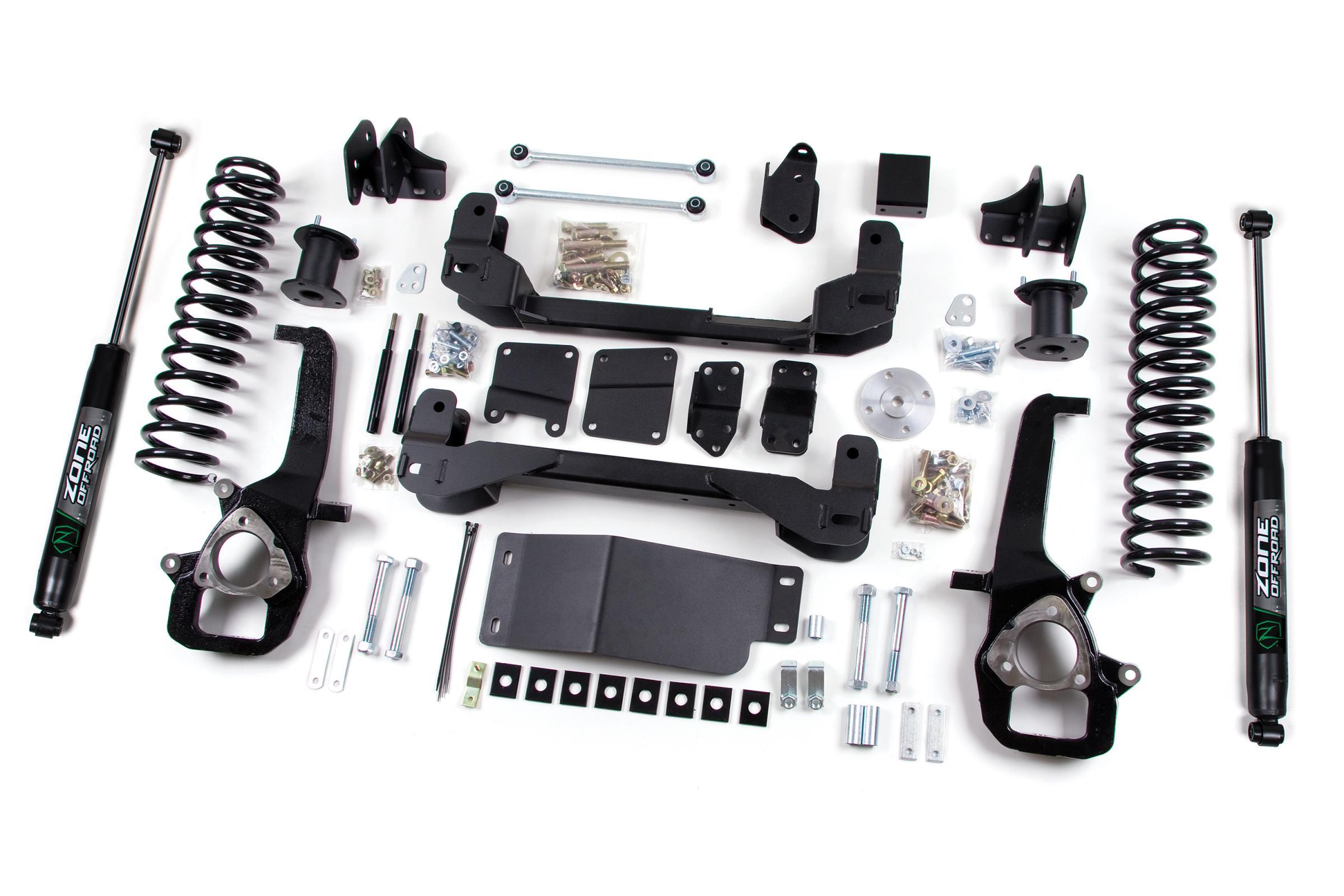

Zone Offroad 13-15 Dodge RAM 1500 6 Inch Front 3 Inch Rear Lift Height Strut Spacer Lift Kit With Nitro Shocks - ZOND40N
Stand out with a brand new, quality, yet affordable 6 Inch suspension lift that lets you clear big 3 Inch Inch tires. Built for everyday driving but sturdy enough for off-road abuse.
Get the look and performance you want out of your 4WD 2013- 2018 Dodge / Ram 1500 Truck.
Quick Specs:
- Front Lift Height 6 Inch
- Rear Lift Height 3 Inch or 5 Inch
- Front Lift Method Strut Spacers
- Rear Lift Method Coil Springs
- Lift Type Lift Kit
- Wheel Size 17 x 9
- Back Spacing 4.5 Inch
- Max Tire Size 37 x 12.5
- Wheel Size 2 18 x 9
- Back Spacing 2 5 Inch
- Max Tire Size 2 37 x 12.5
- Wheel Size 3 20 x 9
- Back Spacing 3.5 Inch
- Max Tire Size 3 37 x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Welding Required No
In The Box:
Coil Springs
Control Arm Relocation Brackets
Crossmembers
Differential Drop Brackets
Skid Plate
Steering Knuckles
Sway Bar Links
Tie Rod End(s)
Features:
- This kit includes a 3 Inch rear lift spring for a level rear end; a 5 Inch rear lift spring is available in a Tail High Rear End Inch version of this kit.
- Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
- Heavy-duty differential skid slate improves offroad protection.
- High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
- Top mount strut and preload spacers set ride height and maintain ride quality.
Kit Components:
- ZON7757 Nitro- 27.90 x 16.55 x 2-3/8 EB1/EB1 2 711745595729
- ZOND2408 09-12 Dodge Rear Box Kit 1 711745598362
- ZOND2612 2012 Dodge 1500 Box 3 of 5 1 711745598515
- ZOND2614 2012 Dodge 1500 6 Inch Box Kit 4 of 5 1 711745598522
- ZOND2620 2013 Dodge 1500 Box Kit (1of5) 1 711745598539
- ZOND2621 2013 Dodge 1500 Box Kit (2of5) 1 711745598546
