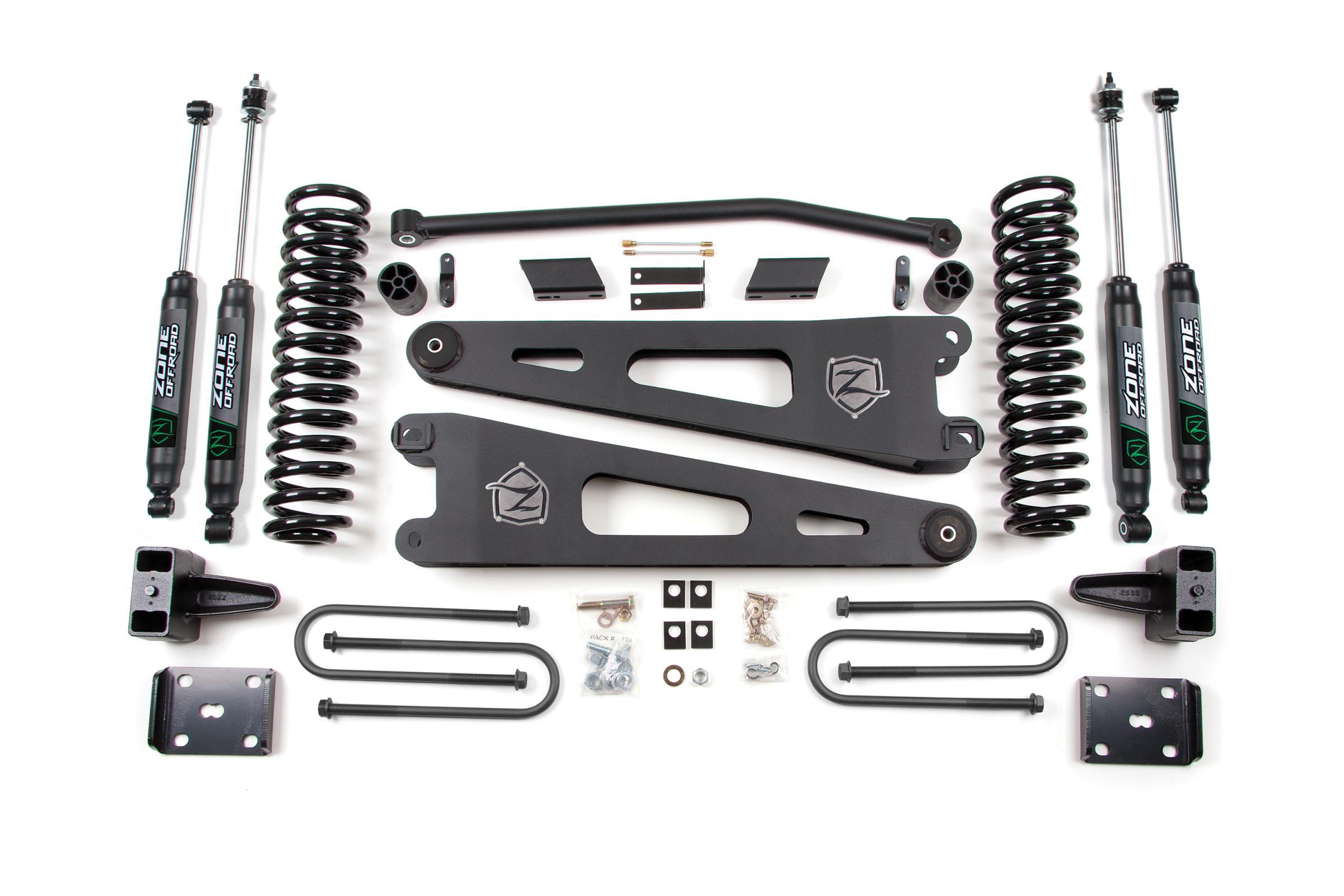

Zone Offroad 11 Ford F-250/F-350 Super Duty 4 Inch Radius Arm Lift Kit Diesel With Overload With Nitro Shocks - ZONF27N
Take your Super Duty to new heights with this 4 Inch radius arm lift kit from Zone Offroad. Kits include everything needed from full length coil springs and HD replacement radius arms to steering correction and rear lift to level the stance.
Get the look, performance, and capability your truck deserves with clearance for up to 35 Inch tires.
Quick Specs:
- Front Lift Height 4 Inch
- Rear Lift Height 3 Inch
- Front Lift Method Radius Arm Drop
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size 17 x 9
- Back Spacing 4.5 Inch
- Max Tire Size 35 x 12.5
- Wheel Size 2 18 x 9
- Back Spacing 2 4.5 Inch
- Max Tire Size 2 35 x 12.5
- Wheel Size 3 20 x 9
- Back Spacing 3 4.5 Inch
- Max Tire Size 3 35 x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels See Notes
- Welding Required No
In The Box:
- All Necessary Mounting / Installation Hardware
- Coil Springs
- Rear Lift Block & U-Bolt Kit
- Sway Bar Relocation Brackets
- Track Bar
- Radius Arms
Features:
- Full length replacement coil springs add additional ride height while maintaining ride quality.
- Heavy-duty track bar re-centers front axle, adds strength and limits lateral movement.
- High-strength, 1/4 Inch steel construction corrects caster, improves tire clearance, and maximizes ground clearance.
- High-strength, black e-coated U-bolts.
- Rear lift block and longer U-bolts for easy installation and level stance.
Kit Components:
- ZON7712 Nitro- 24.50 x 14.50 x 2-3/8 S50/EB2 2 711745595538
- ZON7763 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595798
- ZONF1308 11 Ford F250/350 4 Inch Rear With Overload 1 711745599109
- ZONF1413 2005-2022 Ford F250/350 4 Inch Front Coil Diesel (One) 2 711745599215
- ZONF1424 2011-2016 Ford Super Duty Radius Arm Box Kit 1 711745599284
- ZONF1601 2005-2022 Ford Super Duty Radius Arm (One) 2 711745599291
