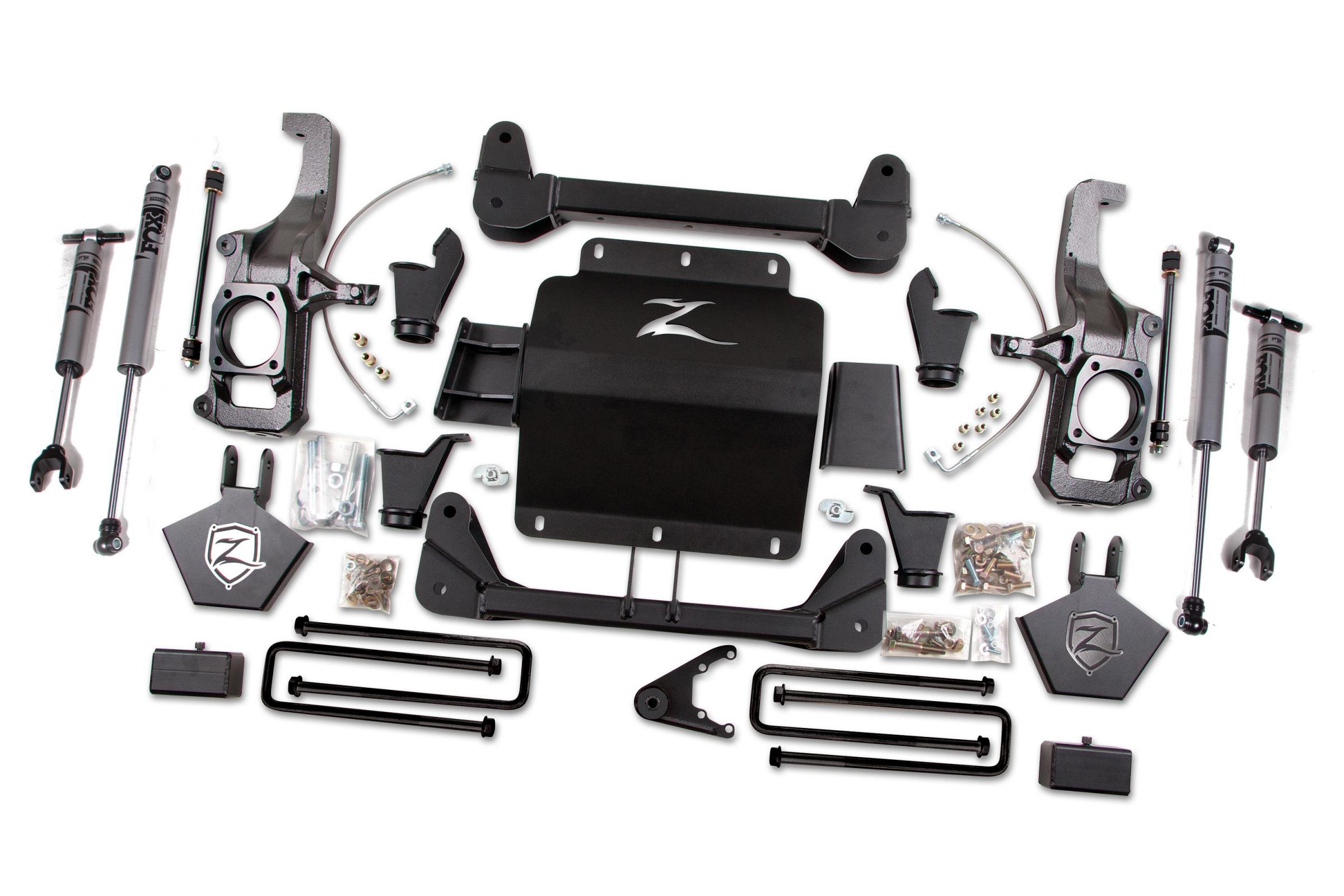

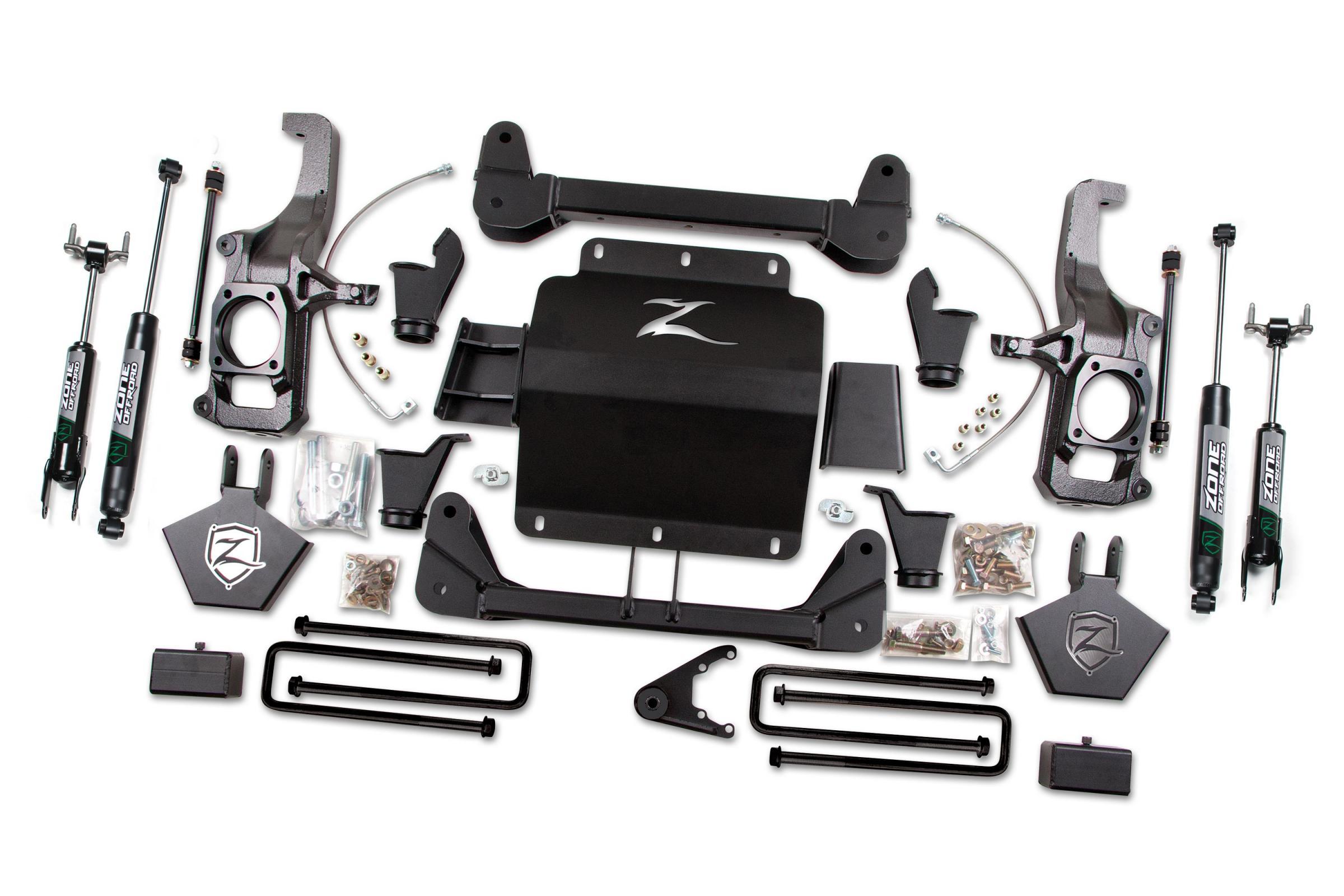

Zone Offroad 11-19 Silverado/Sierra 2500HD/3500HD 5.0 Inch Torsion Bar Drop Lift Kit Without Top Overload With Fox Adventure Shocks - ZONC12F
Turn heads and drop jaws with this 5 Inch lift kit for your truck that gives you clearance for tires up to 35 Inch. This kit has everything you need to raise and level your 2011-2019 Chevy/GM 2500HD /3500HD truck.
If you're going to do it, do it right.
Features:
- Heavy-duty differential skid slate improves offroad protection.
- High-strength, 1/4 Inch steel construction crossmembers corrects lower control arm geometry.
- High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
- No differential trimming required.
- Rear lift block and longer U-bolts for easy installation and level stance.
Quick Specs:
- Front Lift Height 5 Inch
- Rear Lift Height 3 Inch
- Material Steel
- Front Lift Method Torsion Bar Drop
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size 17 x 9
- Back Spacing 4.75 Inch
- Max Tire Size 35 x 12.5
- Wheel Size 2 20 x 9
- Back Spacing 2 6 Inch
- Max Tire Size 2 285 x 65
- Wheel Size 3 20 x 9
- Back Spacing 3 6 Inch
- Max Tire Size 3 35 x 12.5
- Finish Powdercoat
- Cutting Required Yes
- Accommodates Factory Wheels See Notes
- Welding Required No
In The Box:
- All Necessary Mounting / Installation Hardware
- Crossmembers
- Differential Drop Brackets
- Skid Plate
- Steering Knuckles
- Torsion Bar Relocation Brackets
Kit Components:
- FOX98450613 Fox Adv Shock 24.91 x 16.12 x 2-BP/Clev 2 810156368349
- FOX98450759 Fox Adv Shock 30.05 x 18.46 x 2-EB1/EB1 2 810156368066
- ZONC2630 2011-2019 Chevy/GMC HD 5.0 Inch Front Box Kit (1of5) 1 711745597167
- ZONC2631 2011-2019 Chevy/GMC HD 5.0 Inch Front Box Kit (2of5) 1 711745597174
- ZONC2632 2011-2019 Chevy/GMC HD 5.0 Inch Front Box Kit (3of5) 1 711745597181
- ZONC2633 2011-2019 Chevy/GMC HD 5.0 Inch Front Box Kit (4of5) 1 711745597198
- ZONC2634 2011-2019 Chevy/GMC HD 5.0 Inch Front Box Kit (5of5) 1 711745597204
- ZONC2639 2011-2019 Chevy/GMC HD 3 Inch Rear w/o Top Overload 1 711745597228
