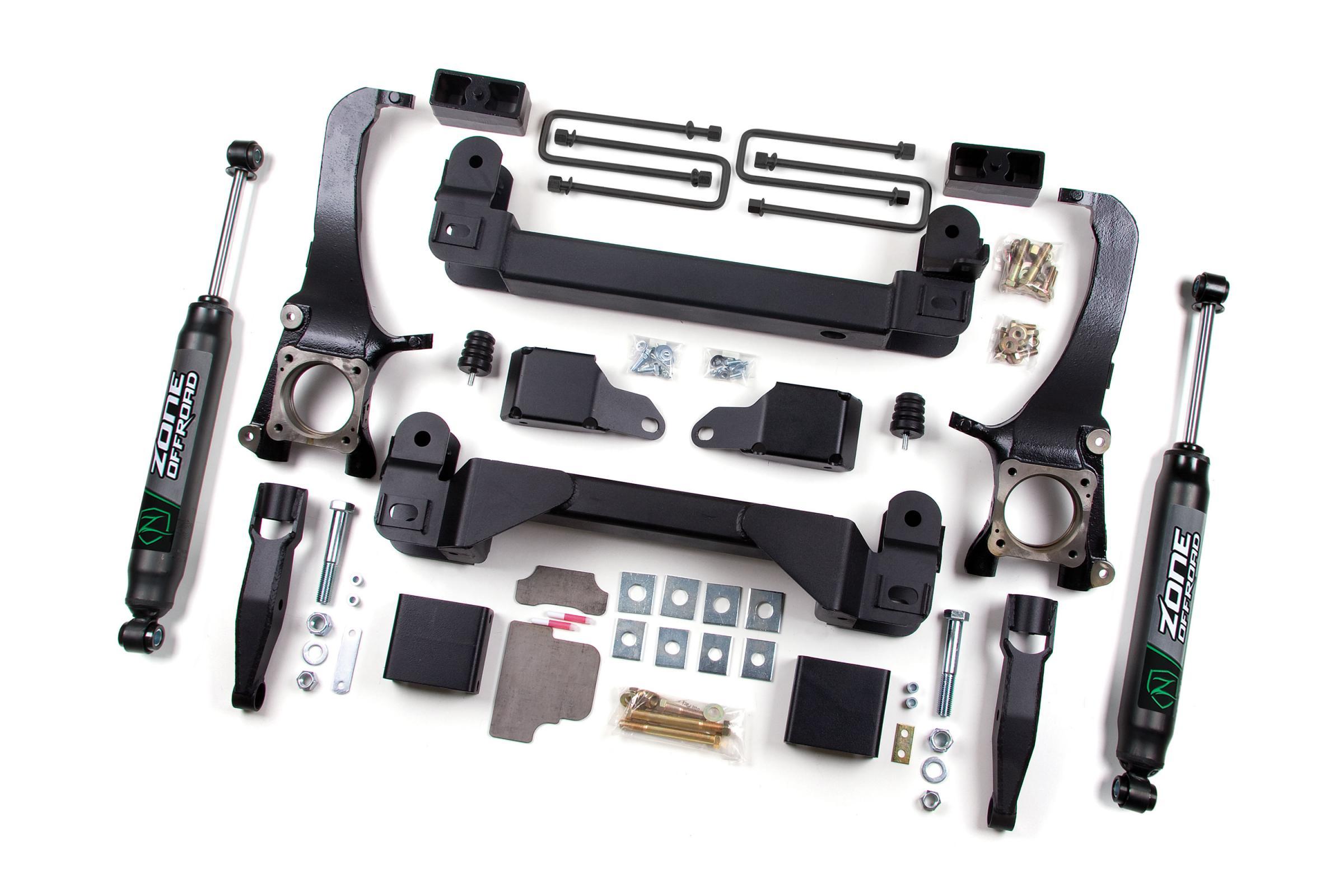

Zone Offroad 07-15 Toyota Tundra 5.0 Inch Lift Kit With Nitro Shocks - ZONT1N
The Tundra has some serious power, take advantage of it with this 5 Inch Lift Kit that makes your truck an off road machine. Iron knuckles and heavy-duty, boxed crossmembers integrate with differential mounts to lock everything together.
Fits 2007 - 2015 Toyota Tundra
Quick Specs:
- Front Lift Height 5 Inch
- Rear Lift Height 3 Inch
- Front Lift Method Knuckle & Drop Cross-Member
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size 18 x 9
- Back Spacing 5.5 Inch
- Max Tire Size 35 x 12.5
- Wheel Size 2 20 x 9
- Back Spacing 2 6.25 Inch
- Max Tire Size 2 35 x 12.5
- Wheel Size 3 22 x 9
- Back Spacing 3 6.25 Inch
- Max Tire Size 3 35 x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels No
- Welding Required No
In The Box:
- All Necessary Mounting / Installation Hardware
- Crossmembers
- Lower Strut Extensions
- Rear Lift Block & U-Bolt Kit
- Steering Knuckles
- Tie Rod End(s)
Features:
- High strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles to corect steering geometry and maintain ESC system compatibility
- Lower strut extensions to provide lift and install easily
- Weld-in chassis plates add strength and rigidity
- Rear lift blocks and u-bolts to lift and level the stance
- Sway bar, brake line, and bump stop relocation brackets to correct operating angles
Kit Components:
- ZON7952 Nitro- 27.50 x 16.20 x 2-3/8 S50/EB2 2 711745596078
- ZONT2500 07-15 Toyota Tundra 5.0 Inch Box Kit (1of4) 1 711745601833
- ZONT2501 07-21 Toyota Tundra 5.0 Inch Box Kit (2of4) 1 711745601840
- ZONT2502 07-21 Toyota Tundra 5.0 Inch Box Kit (3of4) 1 711745601857
- ZONT2503 07-21 Toyota Tundra 5.0 Inch Box Kit (4of4) 1 711745601864
