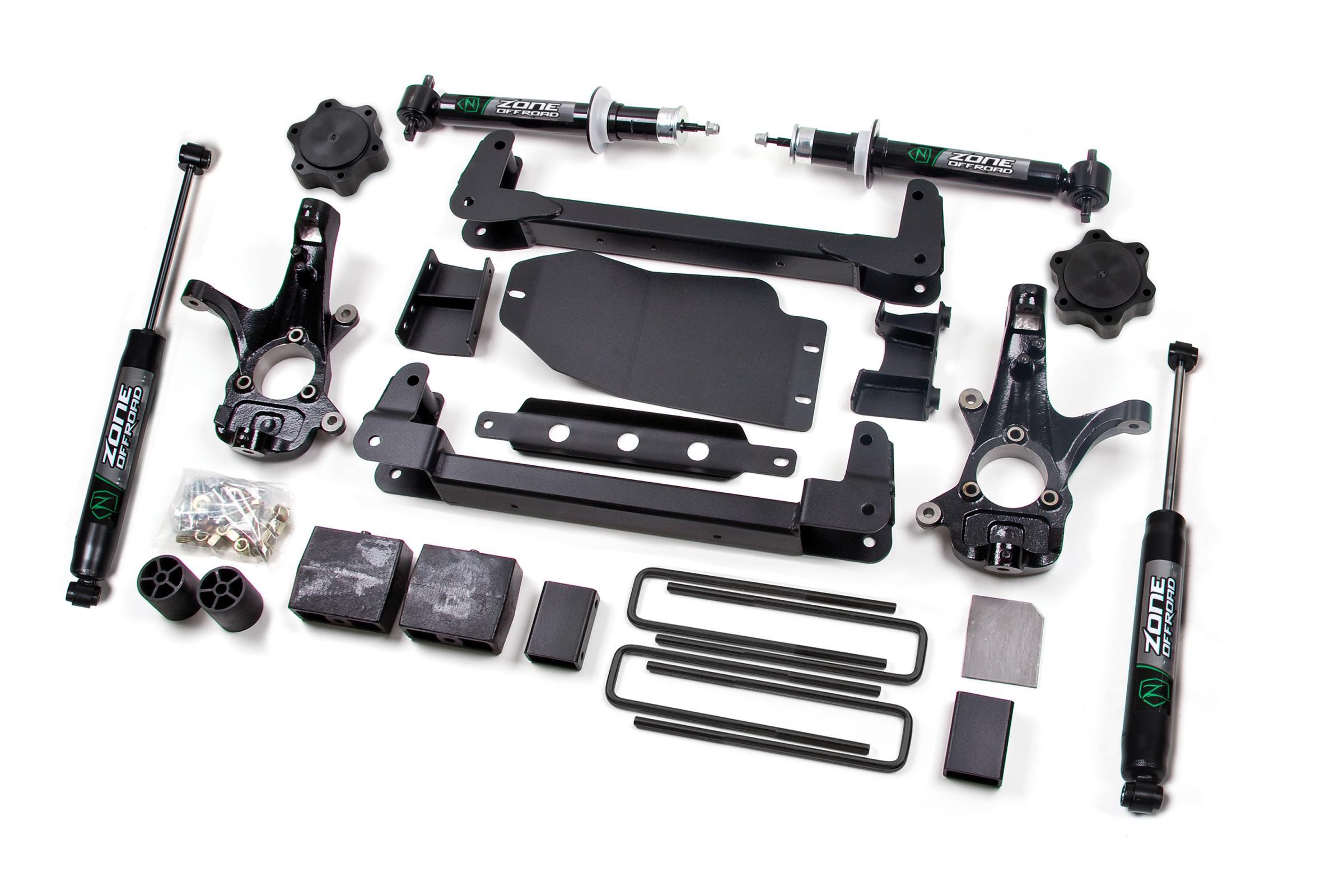

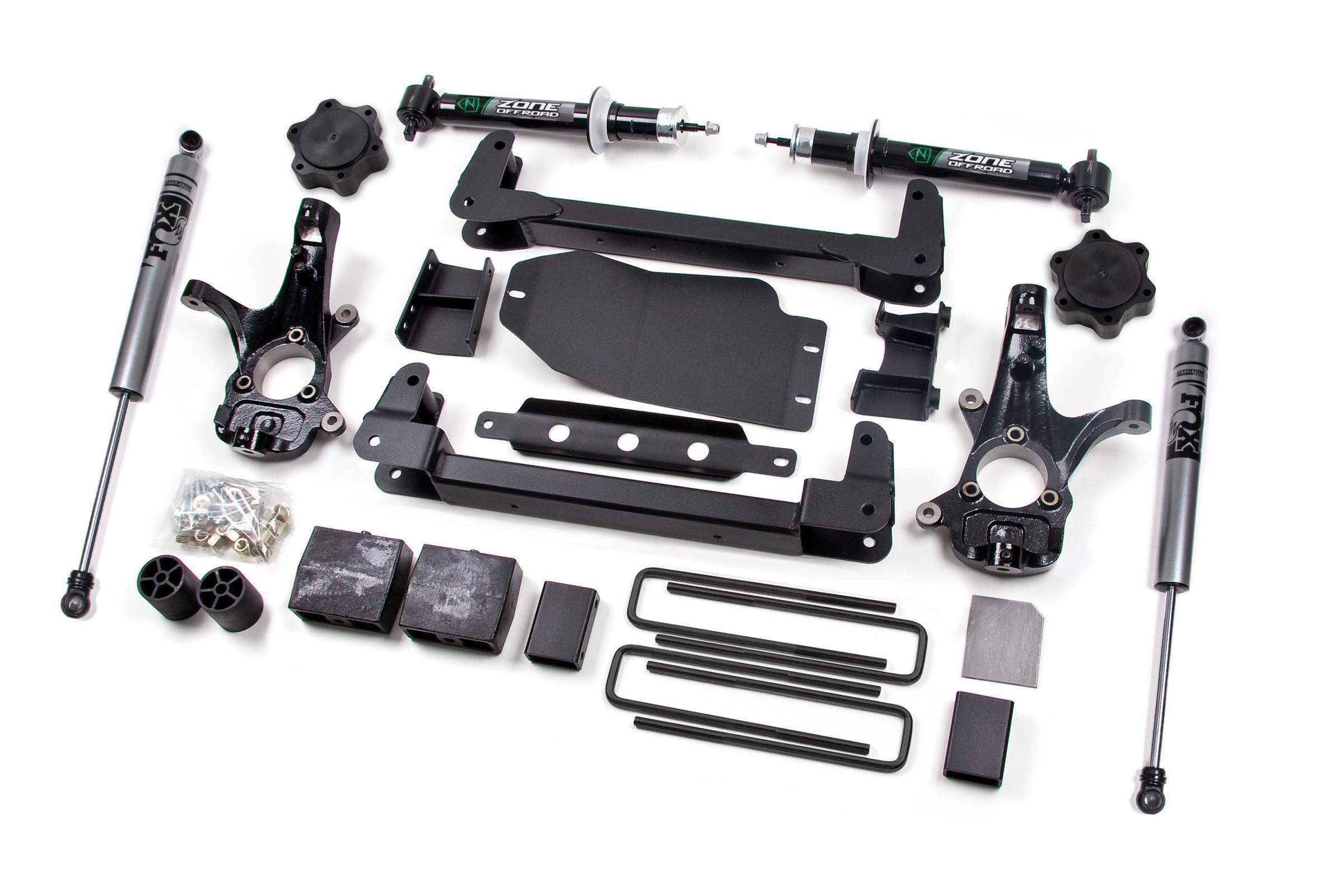

Zone Offroad 07-13 Silverado/Sierra 1500 6 Inch Lift Kit With Fox Adventure Shocks - ZONC1F
Take your Silverado/Sierra 1500 to new heights with this 6.5 Inch lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to nitro gas struts and and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35 Inch tires.
Quick Specs:
- Front Lift Height 6.5 Inch
- Rear Lift Height 5 Inch
- Front Lift Method Knuckle & Strut Spacer
- Rear Lift Method Add-A-Leaf & Cast Block
- Lift Type Lift Kit
- Wheel Size 17 x 9
- Back Spacing 5 Inch
- Max Tire Size 35 x 12.5
- Wheel Size 2 18 x 9
- Back Spacing 2 5 Inch
- Max Tire Size 2 35 x 12.5
- Wheel Size 3 20 x 9
- Back Spacing 3 5.75 Inch
- Max Tire Size 3 35 x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required Yes
- Accommodates Factory Wheels No
- Welding Required Yes
Features:
- Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
- Heavy-duty differential skid slate improves offroad protection.
- High pressure, extended length, replacement front struts improve performance on and offroad.
- High-strength, 1/4 Inch steel construction crossmembers correct lower control arm geometry.
- High-strength, CNC machined, replacement Steering-Knuckles improve strength while correcting steering angles.
- Multi-point differential relocation brackets secure front differential for improved CV operating angles.
- Proudly made in the USA.
- Rear lift block and longer u-bolts for easy installation and level stance.
- Weld-in frame support plate for additional strength.
In The Box:
- All Necessary Mounting / Installation Hardware
- Crossmembers
- CV Axle Spacers
- Differential Drop Brackets
- Rear Lift Blocks
- Skid Plate
- Steering Knuckles
- U-Bolts
- Zone Nitro Series Struts
Kit Components:
- FOX98450759 Fox Adv Shock 30.05 x 18.46 x 2-EB1/EB1 2 810156368066
- ZONC2600 2007-2013 Chevy/GMC 1500 4.5/6.5in Box Kit (1of3) 1 711745596955
- ZONC2601 2007-2013 Chevy/GMC 1500 4.5/6.5in Box Kit (2of3) 1 711745596962
- ZONC2606 2007-2013 Chevy/GMC 1500 4.5/6.5in Box Kit (3of3) 1 711745597013
