Zone Offroad 07-13 Chevy 1500 2WD 3.5 Inch Lift Kit With Nitro Shocks UCA - ZONC30N
This lift kit is built around heavy-duty replacement upper control arms that dwarf the factory components and provide a significantly improved range of motion. These upgraded UCA's are made from fully welded, 1/8 Inch steel plate and CNC-machined ball joint and bushing mounts.
The high-quality MOOG ball joints can handle heavy-duty use, and they work in conjunction with stock-style rubber mount bushings to provide a quiet ride. A fully integrated front differential drop and differential skid plate system relocates the differential for optimal driveline angles.
Strut spacers provide a full 3.5 Inch of lift and install easily on the factory struts without the need of a strut compressor. A rear 3 Inch block and U-bolt system nets 2 Inch of rear lift and provides an athletic level vehicle stance
Quick Specs:
- Front Lift Height 3.5 Inch
- Front Lift Method Upper Control Arms
- Rear Lift Method Block Kit
- Lift Type Lift Kit
- Wheel Size 17 x 9
- Back Spacing 5 Inch
- Max Tire Size 285 / 70
- Finish Powdercoat
In The Box:
- Strut Spacer - Front
- Lift Blocks - Rear
- Upper Control Arms
Features:
- Fully welded, heavy duty upper control arms that dwarf the factory arms.
- CNC-machined UCA bushing and ball joint cups.
- OE rubber bushings and greasable factory style ball joints for quiet, reliable, and low maintenance operation.
- Improved UCA range of motion compared to stock arms
- UCAs utilize replaceable ball joints

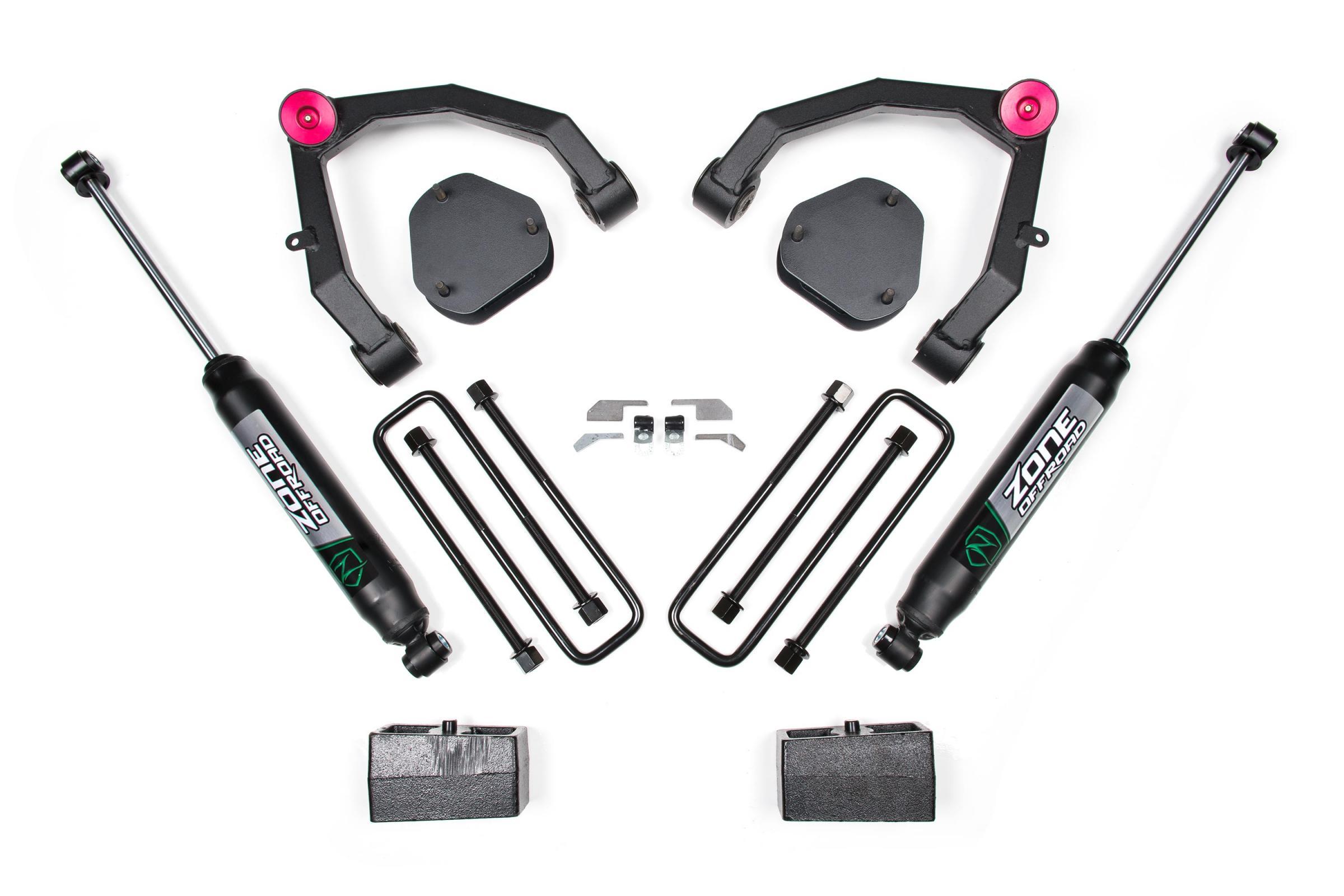

Kit Components:
- ZON7719 Nitro- 26.20 x 15.65 x 2-3/8 EB1/EB1 2 711745595613
- ZONC1309 2007-2013 Chevy/GMC 3 Inch Rear Block Kit 1 711745596627
- ZONC2351 07-13 Chevy 1500 2WD 3.5 Inch Box Kit 1 711745596832
