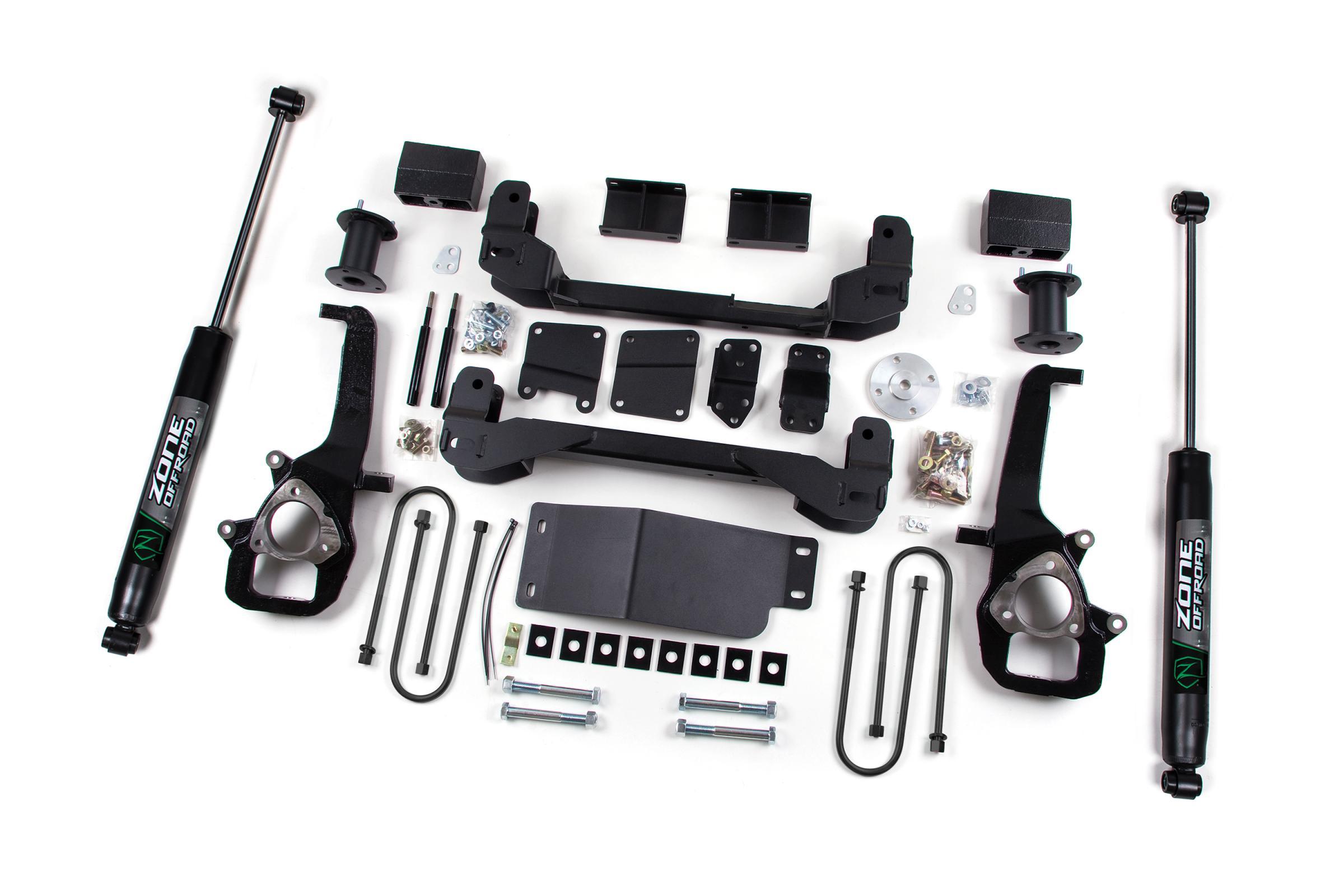

Zone Offroad 06-08 Dodge 1500 4 Inch Lift Kit With Nitro Shocks - ZOND3N
Make a statement with this 4 InchLift Kit that will let you clear those 35 Inch tires. The strut top spacer combined with the rear block kit drastically reduces installation time as well as maintains the factory ride quality for your 4WD 2006 - 2008 Dodge / Ram 1500 Truck.
Quick Specs:
- Front Lift Height 4 Inch
- Rear Lift Height 3 Inch
- Front Lift Method Strut Spacers
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size 17 x 9
- Back Spacing 4.5 Inch
- Max Tire Size 35 x 12.5
- Wheel Size 2 18 x 9
- Back Spacing 2 5 Inch
- Max Tire Size 2 35 x 12.5
- Wheel Size 3 20 x 9
- Back Spacing 3.5 Inch
- Max Tire Size 3 35 x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels No
- Welding Required No
In The Box:
- All Necessary Mounting / Installation Hardware
- Crossmembers
- Differential Drop Brackets
- Driveshaft Spacer
- Rear Lift Block & U-Bolt Kit
- Skid Plate
- Steering Knuckles
Features:
- High strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles to corect steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential relocation brakets to correct CV operating angle
- Differential skid plate offers improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Bump stop, sway bar and brake line relocation brackets to correct operating angles
Kit Components:
- ZON7757 Nitro- 27.90 x 16.55 x 2-3/8 EB1/EB1 2 711745595729
- ZOND2400 06-08 Dodge 1500 4 Inch Front Box Kt (4of4) 1 711745598348
- ZOND2409 06-08 Dodge 1500 4 Inch Rear Box Kit 1 711745598379
- ZOND2602 06-11 Dodge 1500 4-6 inch Frnt Bx Kt (3of4) 1 711745598447
- ZOND2610 06-12 Dodge Front Box (1of4) 1 711745598492
- ZOND2611 06-12 Dodge Front Box (2of4) 1 711745598508
