Zone Offroad 05-15 Toyota Tacoma 4 Inch Front 3 Inch Rear Lift Kit With Nitro Shocks - ZONT4N
Raise it up with this 4 Inch Lift Kit made for serious off road adventure. Featuring a combination of strut spacers, iron knuckle for the front and cast blocks for the rear.
This kit clears your 4WD 2005 - 2015 Toyota Tacoma for tires up to 33 Inches with some trimming.
Quick Specs:
- Front Lift Height 4 Inch
- Rear Lift Height 3 Inch
- Front Lift Method Knuckle & Strut Spacer
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size 18 x 9
- Back Spacing 4.5 Inch
- Max Tire Size 33 x 12.5
- Wheel Size 2 20 x 9
- Back Spacing 2 4.5 Inch
- Max Tire Size 2 33 x 12.5
- Wheel Size 3 22 x 9
- Back Spacing 3 4.5 Inch
- Max Tire Size 33 x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels No
- Welding Required No

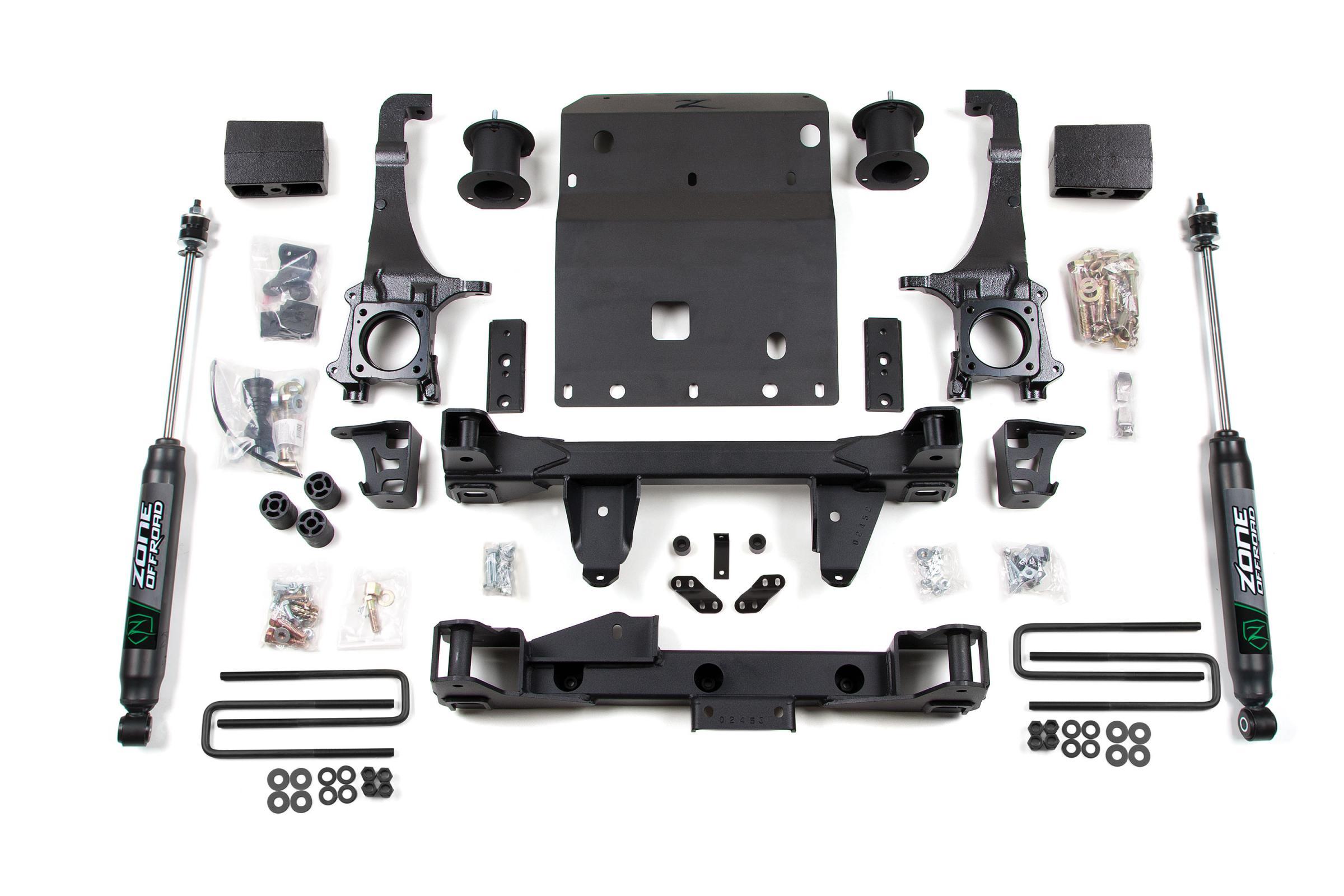

In The Box:
- All Necessary Mounting / Installation Hardware
- Crossmembers
- Rear Lift Block & U-Bolt Kit
- Steering Knuckles
- Strut Spacers
Features:
- High strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles to corect steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Full width belly skid plate offers improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Bump stop, sway bar and brake line relocation brackets to correct operating angles
Kit Components:
- ZON7954 Nitro- 26.50 x 15.60 x 2-3/8 S1/EB1 2 711745596092
- ZONT2309 05-23 Toyota Tacoma 3 Inch Rear Block Kit 1 711745601789
- ZONT2401 2005-2015 Toyota Tacoma Box Kit (2of3) 1 711745601796
- ZONT2600 05-23 Toyota Tacoma Box Kit (1of3) 1 711745601888
- ZONT2602 2005-2015 Toyota Tacoma Box Kit (3of3) 1 711745601901
