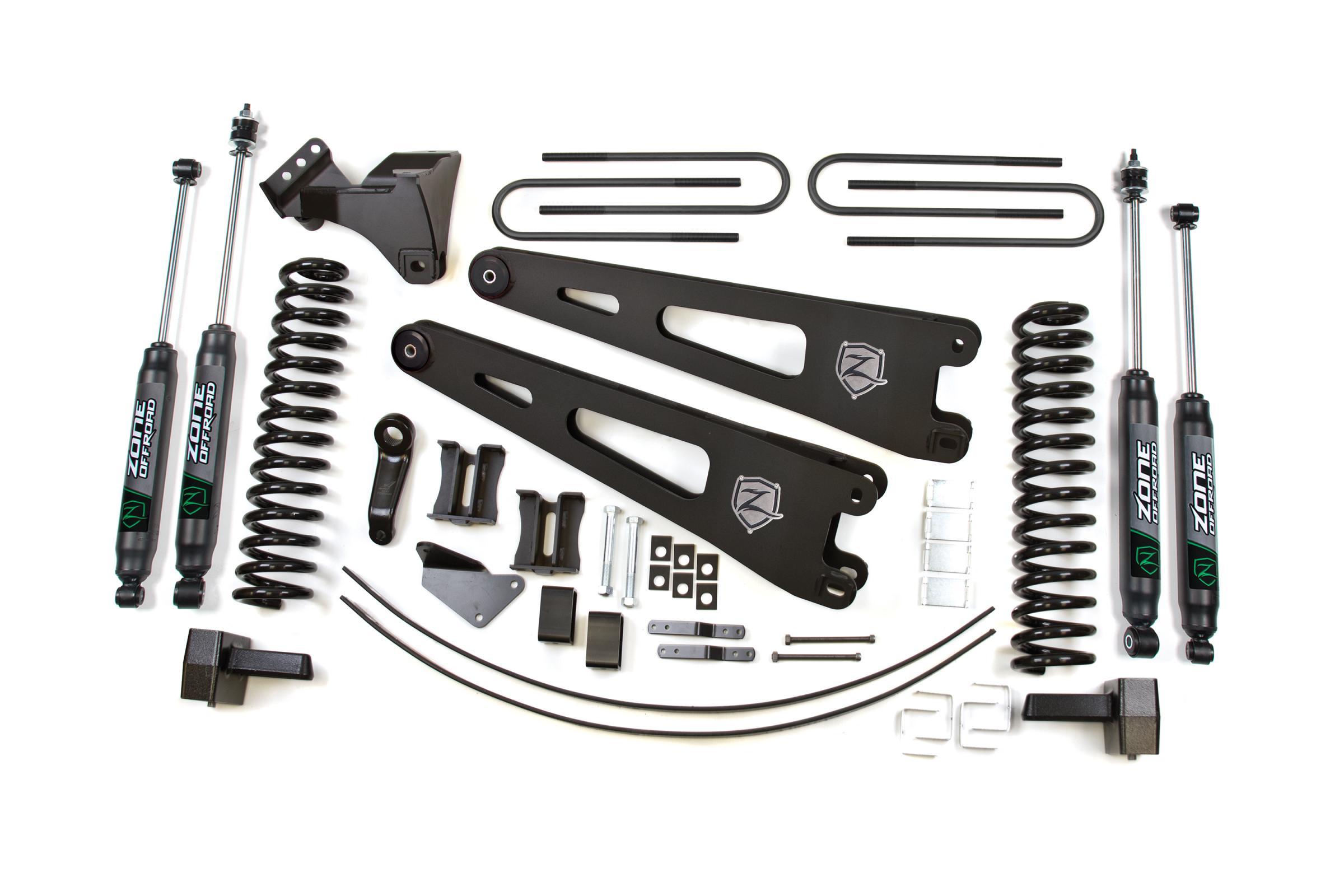

Zone Offroad 05-07 Ford F-250/F-350 Super Duty 6 Inch Lift Kit Gas With Nitro Shocks - ZONF39N
Prepare to have everyone looking up at you with this 6 Inch Radius Arm Lift Kit that lets you clear huge 37 Inch tires. Built for everyday driving but sturdy enough for off-road abuse. Get the look and performance you want out of your Gas 4WD 2005 - 2007 Ford F-250 / F-350.
Quick Specs:
- Front Lift Height 6 Inch
- Rear Lift Height 4 Inch
- Front Lift Method Radius Arm Drop
- Rear Lift Method Add-A-Leaf & Cast Block
- Lift Type Lift Kit
- Wheel Size 17 x 9
- Back Spacing 4.5 Inch
- Max Tire Size 37 x 12.5
- Wheel Size 2 18 x 9
- Back Spacing 2 4.5 Inch
- Max Tire Size 2 37 x 12.5
- Wheel Size 3 20 x 9
- Back Spacing 3 4.5 Inch
- Max Tire Size 3 37 x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels See Notes
- Welding Required No
In The Box:
- Add-A-Leaf's
- All Necessary Mounting / Installation Hardware
- Coil Springs
- Dropped Pitman Arm
- Rear Lift Block & U-Bolt Kit
- Sway Bar Relocation Brackets
- Radius Arms
Features:
- Brake line relocation brackets allow re-use of factory brake lines.
- Bump stop extensions properly limit up-travel, protecting your vehicle.
- Heavy-duty radius arms improve strength, allow additional tire clearance and increase ground clearance over radius arm drop kits.
- High-strength, 1/4 Inch steel radius arms correct caster, improve tire clearance, and maximize ground clearance.
- Rear Add-A-Leaf Kit provides additional lift and improves weight capacity.
- Rear lift block and longer U-bolts for easy installation and level stance.
- Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.
- Sway bar relocation brackets maintain operating angle for reduced body roll.
Kit Components:
- ZON7750 Nitro- 27.40 x 16.20 x 2-3/8 S50/EB2 2 711745595675
- ZON7763 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595798
- ZONF1414 05-09 Ford F250/350 4 Inch Rear Box Kit 1 711745599222
- ZONF1601 2005-2022 Ford Super Duty Radius Arm (One) 2 711745599291
- ZONF1602 05-07 Super Duty 6 Inch Box Kit 1 711745599307
- ZONF1623 2005-2024 Super Duty 6 Inch Gas Coil (one) 2 711745599406
- ZONF6218 05-07 Super Duty Add-a-leaf 1 711745599970
