Zone Offroad 05-07 Ford F-250/F-350 Super Duty 4 Inch Radius Arm Lift Kit With Nitro Shocks Diesel - ZONF21N
Climb up and stand out from the crowd with this 4 Inch Radius Arm Lift Kit that lets you clear 35 Inch tires. You'll definitely make a statement with this kit complete with bullet proof radius arms & cast blocks for your 4WD Diesel 2005 - 2007 Ford F-250 / F-350.
Quick Specs:
- Front Lift Height 4 Inch
- Rear Lift Height 3 Inch
- Front Lift Method Radius Arm Drop
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size 17 x 9
- Back Spacing 4.5 Inch
- Max Tire Size 35 x 12.5
- Wheel Size 2 18 x 9
- Back Spacing 2 4.5 Inch
- Max Tire Size 2 35 x 12.5
- Wheel Size 3 20 x 9
- Back Spacing 3 4.5 Inch
- Max Tire Size 3 35 x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels See Notes
- Welding Required No

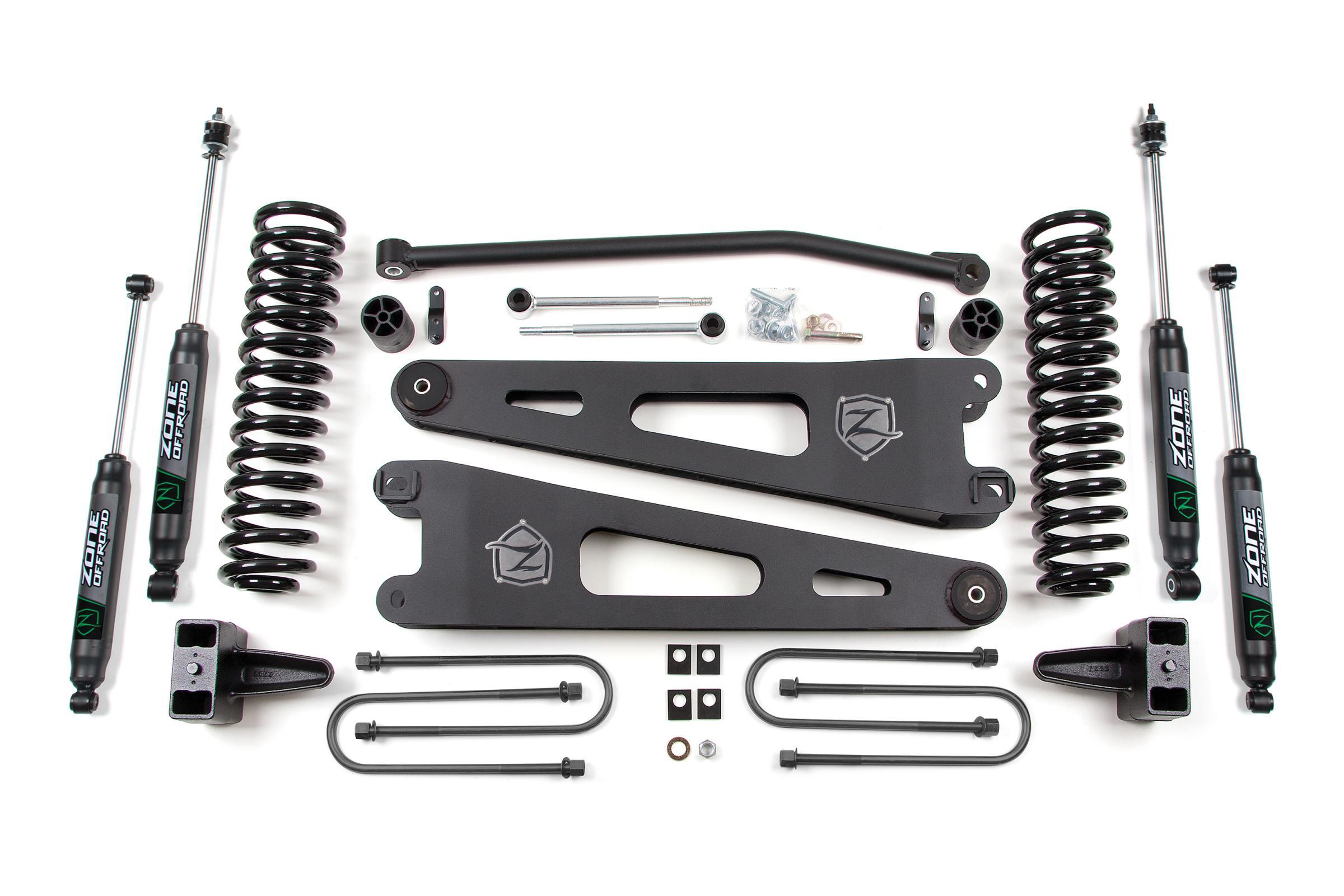

In The Box:
- All Necessary Mounting / Installation Hardware
- Coil Springs
- Rear Lift Block & U-Bolt Kit
- Sway Bar Relocation Brackets
- Track Bar
- Radius Arms
Features:
- Full length replacement coil springs add additional ride height while maintaining ride quality.
- Heavy-duty track bar re-centers front axle, adds strength and limits lateral movement.
- High-strength, 1/4 Inch steel construction corrects caster, improves tire clearance, and maximizes ground clearance.
- High-strength, black e-coated U-bolts.
- Rear lift block and longer U-bolts for easy installation and level stance.
Kit Components:
- ZON7712 Nitro- 24.50 x 14.50 x 2-3/8 S50/EB2 2 711745595538
- ZON7763 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595798
- ZONF1413 2005-2022 Ford F250/350 4 Inch Front Coil Diesel (One) 2 711745599215
- ZONF1414 05-09 Ford F250/350 4 Inch Rear Box Kit 1 711745599222
- ZONF1421 05-07 Ford Super Duty Box Kit 1 711745599253
- ZONF1601 2005-2022 Ford Super Duty Radius Arm (One) 2 711745599291
