Zone Offroad 05-07 Ford F-250/F-350 Super Duty 4 Inch Lift Kit With Nitro Shocks - ZONF5N
Take your Super Duty to new heights with this 4 Inch lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arm relocation brackets to HD track bar and rear lift to level the stance.
Get the look, performance, and capability your truck deserves with clearance for up to 35 Inch tires.
Quick Specs:
- Front Lift Height 4 Inch
- Rear Lift Height 5 Inch
- Front Lift Method Coil Springs & Bracket Kit
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size 17 x 9
- Back Spacing 4.5 Inch
- Max Tire Size 35 x 12.5
- Wheel Size 2 18 x 9
- Back Spacing 2 4.5 Inch
- Max Tire Size 2 35 x 12.5
- Wheel Size 3 20 x 9
- Back Spacing 3 4.5 Inch
- Max Tire Size 3 35 x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels See Notes
- Welding Required No

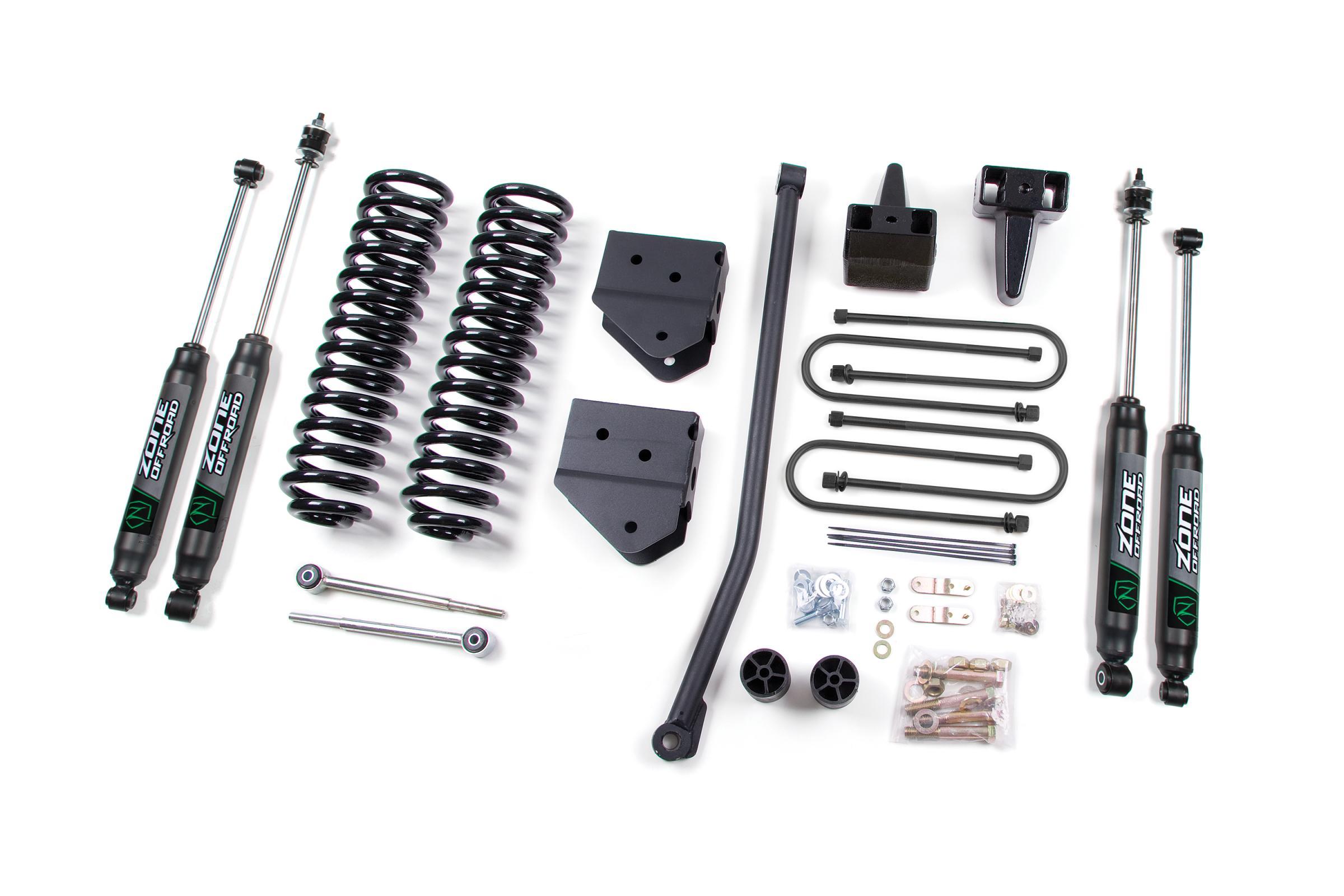

In The Box:
- All Necessary Mounting / Installation Hardware
- Coil Springs
- Radius Arm Drop Brackets
- Rear Lift Block & U-Bolt Kit
- Sway Bar Relocation Brackets
- Track Bar
Features:
- Full length replacement coil springs add additional ride height while maintaining ride quality.
- Heavy-duty track bar re-centers front axle, adds strength and limits lateral movement.
- High-strength, black e-coated U-bolts.
- Radius arm drop brackets correction position front axle allowing use of the factory radius arms.
- Rear lift block and longer U-bolts for easy installation and level stance.
Kit Components:
- ZON7712 Nitro- 24.50 x 14.50 x 2-3/8 S50/EB2 2 711745595538
- ZON7763 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595798
- ZONF1411 05-07 Ford F250/350 4 Inch Front Box Kit 1 711745599192
- ZONF1413 2005-2022 Ford F250/350 4 Inch Front Coil Diesel (One) 2 711745599215
- ZONF1414 05-09 Ford F250/350 4 Inch Rear Box Kit 1 711745599222
