Zone Offroad 02-05 Dodge RAM 1500 5.0 Inch Lift Kit With Nitro Shocks - ZOND14N
Turn heads and drop jaws with this 5 Inch Lift Kit for your truck that gives you clearance for tires up to 35 Inch. This kit has everything you need to raise and level your 4WD 2002 - 2005 Dodge Ram 1500 Truck.
If you're going to do it, do it right.
Quick Specs:
- Front Lift Height 5 Inch
- Rear Lift Height 3 Inch
- Front Lift Method Knuckle & Drop Cross-Member
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size 17 x 9
- Back Spacing 4.5 Inch
- Max Tire Size 35 x 12.5
- Wheel Size 2 18 x 9
- Back Spacing 2 4.5 Inch
- Max Tire Size 2 35 x 12.5
- Wheel Size 3 20 x 9
- Back Spacing 3.5 Inch
- Max Tire Size 3 35 x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels No
- Welding Required No

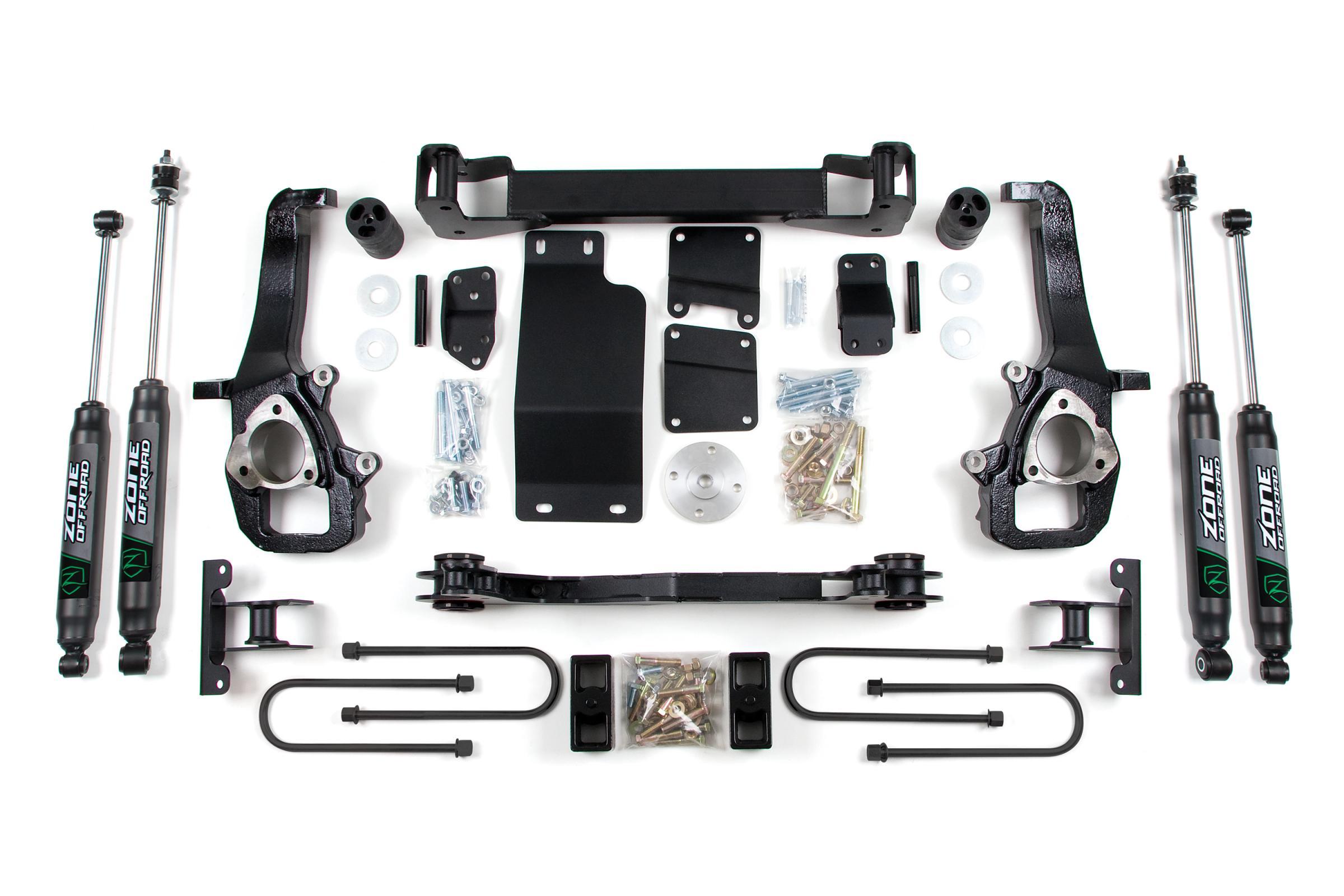

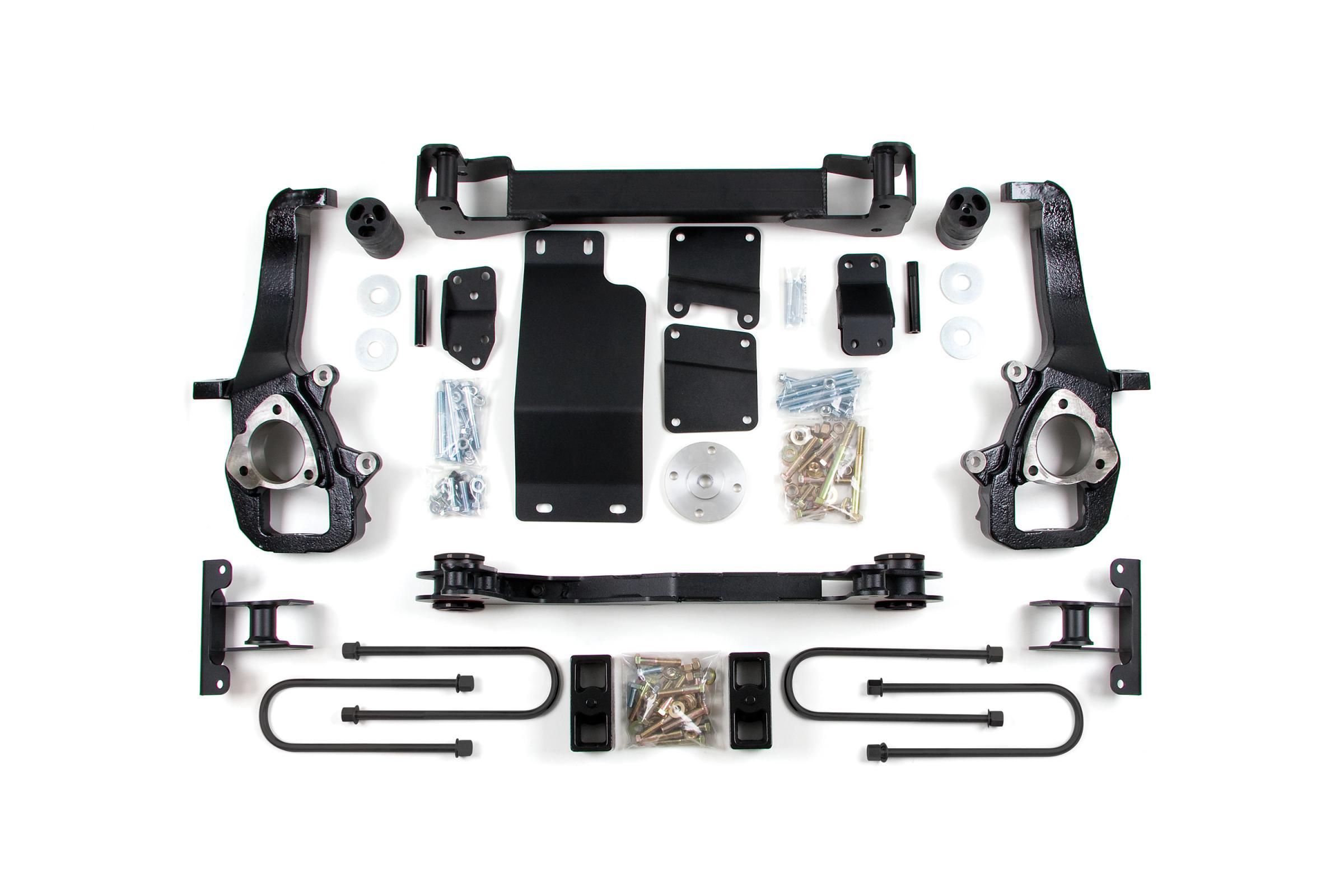

In The Box:
- All Necessary Mounting / Installation Hardware
- Crossmembers
- Differential Drop Brackets
- Rear Lift Block & U-Bolt Kit
- Skid Plate
- Steering Knuckles
- Tie Rod End(s)
Features:
- Heavy-duty differential skid slate improves offroad protection.
- High-strength, 1/4 Inch steel construction crossmembers corrects lower control arm geometry.
- High-strength, CNC machined, replacement Steering-Knuckles improve strength while correcting steering angles.
Kit Components:
- ZON7711 Nitro- 19.50 x 13.17 x 2 EB1/EB1 2 711745595514
- ZON7769 Nitro- 30.95 x 18.20 x 2-3/8 EB1/EB1 2 711745595828
- ZOND2500 02-05 Dodge 1500 Box Kit (3of4) 1 711745598393
- ZOND2501 02-05 Dodge 1500 Box Kit (4of4) 1 711745598409
- ZOND2509 02-05 Dodge 1500 Rear Box Kit 1 711745598416
- ZOND2600 02-05 Dodge 1500 4-6 inch Frnt Bx Kt (1of4) 1 711745598423
- ZOND2601 02-05 Dodge 1500 4-6 inch Frnt Bx Kt (2of4) 1 711745598430
- ZOND5201 02-05 Dodge Ram 1500 Shock Extension 1 711745598669
