Competition kits do not include fuel system upgrades, calibration or spark plug
Kit Description
Since 1987, Whipple Superchargers™ have been the pioneers and leaders of twin-screw supercharging. Whipple was the first to bring positive displacement technology to fuel injected, emissions legal GM applications. With over 30 years of GM twin-screw supercharging experience, Whipple's team have now engineered the most powerful intercooled twin-screw SC system available today for your Chevrolet Camaro.With all the latest technology, the all new Whipple system makes more power than any other positive displacement supercharger system on the market giving you tire frying, neck whipping power that will give you a grin from ear to ear. The new Whipple system is 100% complete and is designed for stock engines but has enough capability to work with heavily modified engines. The all-new system features Whipple's massive oversized air-to-water intercooler for unmatched cooling capacity, a unique front feed W175ax (a whopping 2.9 liters) integrated Whipple twin-screw supercharger that reaches 99% volumetric efficiency and industry leading power potential.The unique intercooled bypass system offers better acceleration and less than 1hp of consumption during cruising for excellent fuel economy. The system also includes an aluminum high flow intake manifold . While others claim, Whipple Superchargers simply deliver more power per pound of boost than any other supercharger on the market today.

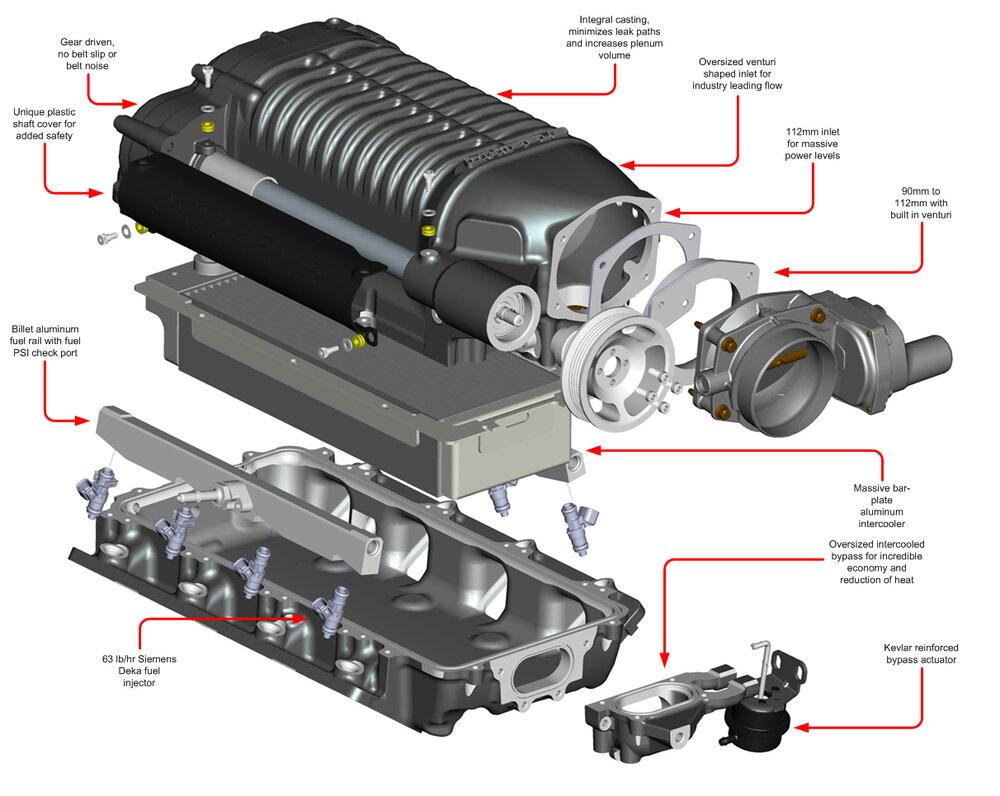

Exclusive Features:
The most powerful 50-state emissions legal option available
No other upgrades required, just massive power right out of the box
Front entry W175ax (2.9 liters) Whipple twin-screw supercharger that significantly outperforms competitions 1.9L and 2.3L roots-type systems
Front feed supercharger utilizes precision ground helical cut gears vs a problematic belt
Carbon fiber hood vent standard
Integrated casting to minimize bolt on pieces, adapters, leaks and flow restrictions
Integrated Crusher™ venturi shaped inlet for maximum airflow capacity and minimal rotor cavitation
Integrated Crusher™ 112mm round inlet outflows smaller 90 and 93mm inlets such as other Eaton based systems
Integrated Crusher™ 112mm round inlet for optional 102mm throttle bodies
Integrated design allows for oversized intercooler core compared to other smaller intercooler cores giving Whipple lower air charge temps which allows more boost and timing to be run on pump gas
Massive air-to-water aluminum bar-plate intercooler offers more cooling than any other positive displacement system available
Oversized fabricated aluminum intercooler reservoir for repeatable power levels
Whipple Superchargers massive oversized intercooled air-bypass system for industry leading reduction of burst knock and incredible fuel economy, no ridiculous fabbed steel tubes or systems that circulate hot air
Carbon fiber hood vent included
Self-contained oversized oil system for dramatically reduced oil temps in even the most demanding conditions

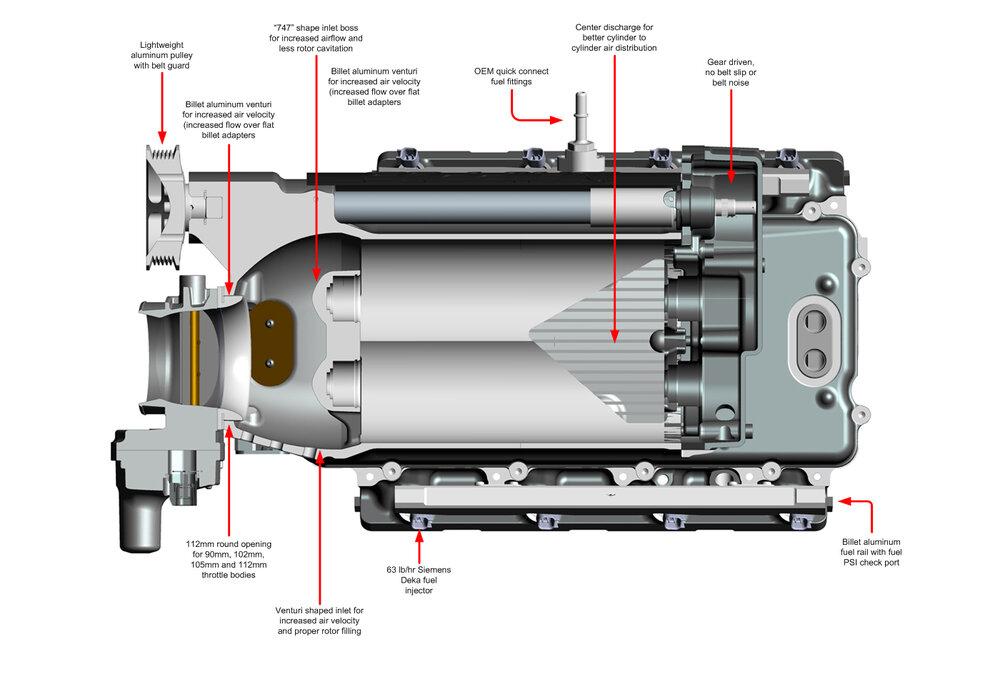

Exclusive 3x5 rotor combo for significant increase in airflow under the curve than less efficient 4x6 rotor combo
Zero turn inlet allows for decreased induction losses when compared to rear inlet systems and 180deg bends
Center discharge port for better cylinder to cylinder distribution then other twin-screws with cobbled together billet adapters and forward facing discharge
Discharge down design allows for less pressure loss which gives more power at lower boost levels
Top mount design allows for cooler operation then upside down SC's that conduct heat from engine and are trapped by runners and covers, causing hotter manifold temps and less power per pound of boost
More boost at the "hit" than any other twin-screw
Flat torque curve for incredible acceleration
Custom fuel pump module for proper fuel flow calibration
High density heat exchanger for incredible intercooler water temps
Fits under factory hood with no modifications
No internal modifications required
Completed installation looks factory installed, not some cobbled together kit with multiple billet adapters
Kits come complete with all necessary parts and hardware for installation
Unique oil level sight glass for easy oil level and quality check, no dipstick to bind or misread
Plug and play wiring with male and female connections
High flow air filter system (50-state legal filter system)
High flow fuel injectors included
Proven 6-rib belt system with heavy duty spring loaded tensioner and adjustable idler system
Optional 10-rib belt system with matching billet pulleys
Stainless steel jack-shaft with unique plastic cover (or optional carbon fiber) for increased safety
OEM quick connect fittings for easy installation, no ugly brass or steel fittings on the SC
Complete kits, Tuner kits and Hot Rod kits are available
Available in wrinkle black, polish or any custom color
Easily upgradeable with bigger throttle bodies (102mm or 109mm)
Instant boost at the touch of the throttle
3 minute pulley changes
Optional 3 year, 36,000 mile warranty
The Whipple Advantage
Since 1987, Whipple Superchargers™ have been the pioneers and leaders of twin-screw supercharging. Whipple was the first to bring positive displacement technology to fuel injected, emissions legal GM applications. Known for the highest quality, most powerful supercharger systems, Whipple used its 26+ years of GM twin-screw supercharging experience to engineer the most powerful intercooled twin-screw SC system available today for your Chevrolet Z28 Camaro.
With all the latest technology, the all new Whipple system makes more power than any other positive displacement supercharger system on the market giving you tire frying, neck whipping power that will give you a grin from ear to ear while still being 50-state emissions legal and backed by an optional 3-year 36,000 mile warranty. The new Whipple system is 100% complete and is designed for stock engines but has enough capability to work with heavily modified engines.
The system features Whipple's massive oversized air-to-water intercooler for unmatched cooling capacity, a unique front feed W175ax (a whopping 2.9 liter displacement) integrated Whipple twin-screw supercharger that reaches 99% volumetric efficiency and industry leading power potential. The unique intercooled bypass system offers better acceleration and less than 1hp of consumption during cruising for excellent fuel economy. The system also includes aluminum high flow intake manifold. While others claim, Whipple Superchargers simply deliver more power per pound of boost than any other supercharger on the market today and lead the industry in fit and finish, with second to none quality and packaging.
Whipple Fuel System
Competition Systems do not include fuel injectors or spark plugs
The Whipple front feed system is far superior to rear inlet based SC systems for a very simple reason, less inlet restrictions. While some companies make phony claims about how many bends they have, the fact is simple, the front entry systems do not require multiple 90deg bends or one sweeping 180deg bend before the SC inlet, which causes unequal rotor filling and lower volumetric efficiency. For 50-state emissions legal systems, the Whipple front entry system requires 1 less bend (3 to 4) then any rear entry SC. With other cold air intake systems, it's 2 less bends (1 to 3). Others just show pictures of the air tube, but forget to mention the SC inlet which makes 2 90 deg bends, while also restricting plenum volume so they can clear the firewall. The Whipple system also uses a round (round flows significantly more then oval or rectangle shapes) 112mm opening vs. other systems that utilize lower flowing rectangle opening.
