Fuel: FLEX
Horsepower: 750
Flow Rate (lph): 450
Flow Rate (gph): 119
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 87
Max System Pressure (kPa): 600
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 0 degree outlet fitting to inlet orientation

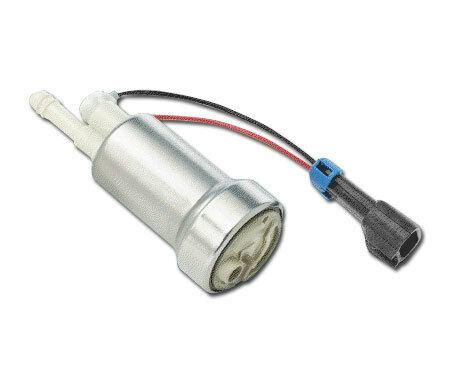

The new 39/50 DCSS pump has been designed around the proven 39mm armature ("motor") that has been used for many years. Coupled with the proven armature are two sets of turbine blades set in parallel on a single impeller shaft. This design allow fuel to pass through two high pressure pumping channels delivering fuel in a manner to work with the high pressure demand of today's direct injection system. This pump is also compatible with E85 fuel.
Technical Pump Specifications
Overall pump lehgth: 121mmMain Housing Dia.: 39mmLower Housing Dia.: 50mmFuel inlet Dia.: 11mm ODFuel Outlet Dia.: 11mm ODFlow rate: 465LPH @ 40PSITest Voltage: 13.5 VoltsNOTE: THE WALBRO F90000274 AND F90000267 FUEL PUMP FLOW RATES AND PHYSICAL DIMENSIONS ARE IDENTICAL. THE WALBRO F90000274 SIMPLY HAS A DIFFERENT INTERNAL RELIEF VALVE PERMITTING HIGHER FUEL PRESSURES.
**NOTE: Will NOT work in factory fuel pump housings!
