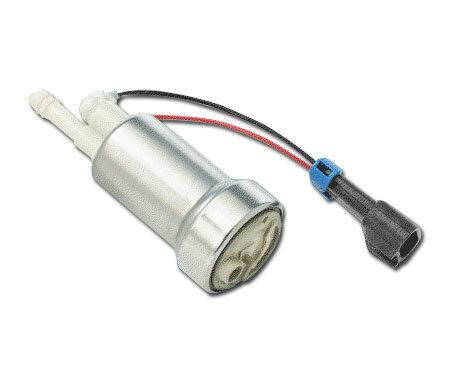

Walbro 305 LPH DCSS Twin Turbine High Pressure Fuel Pump (E85 Compatible)

Walbro 305 LPH DCSS Twin Turbine High Pressure Fuel Pump (E85 Compatible)

 The new 39/50 DCSS pump has been designed around the proven 39mm armature ("motor") that has been used for many years. Coupled with the proven armature are two sets of turbine blades set in parallel on a single impeller shaft. This design allow fuel to pass through two high pressure pumping channels delivering fuel in a manner to work with the high pressure demand of today's direct injection system. This pump is also compatible with E85 fuel.

Technical Pump Specifications
Overall pump lehgth: 121mm
main Housing Dia.: 39mm
Lower Housing Dia.: 50mm
Fuel inlet Dia.: 11mm OD
Fuel Outlet Dia.: 11mm OD
Flow Rate: 305 lph @ 40 psi
Test Voltage: 13.5V (8.9 amps)

Recommended for vehicles 500hp+

*NOTE*: WILL NOT WORK IN FACTORY FUEL PUMP HOUSINGS!
