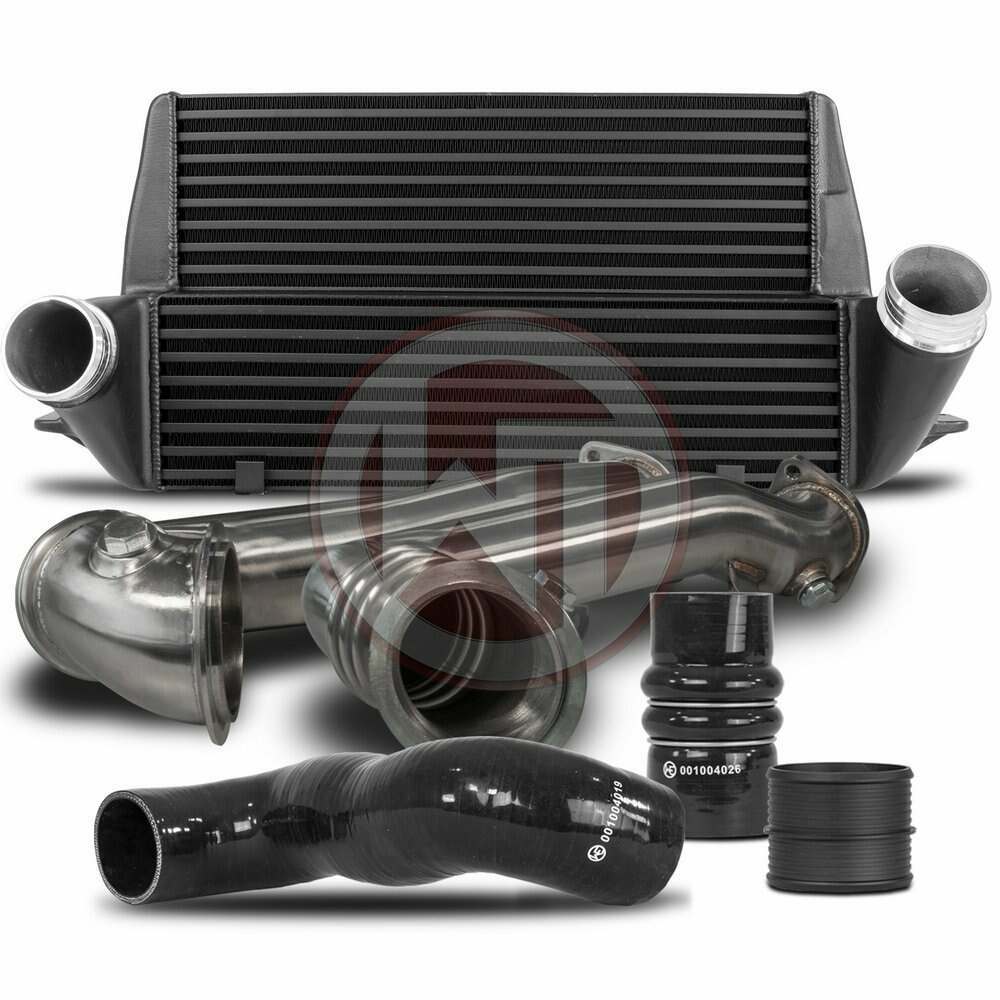

Wagner Tuning Competition Package EVO3 BMW E-series N54 engine - 700001060
The competition package for the BMW E-serie consists of the Intercooler Upgrade Kit EVO3 and the N54 downpipe kit and fits the following vehicles.
BMW 335 (x)i E90/E91/E92/93 2006-2011
BMW 335is E92 2009-2013
BMW 135i E82/E88 2008-2013
BMW 1erM E82 2011-2013
Intercooler Upgrade Kit 200001113The BMW Competition Intercooler Kit EVO III has the following core dimensions (510mm x 303mm x 180mm / stepped, 20,65L)(20Inch x 11,9Inch x 7,09Inch / stepped, 1260,14Inch³) . The high performance intercooler core provides a 162% larger frontal area and 182% more volume compared to the stock mounted intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the endtank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. We use our award winning WAGNERTUNING Competition Intercooler Core which is made specifically for this application. Constructed of the highest quality Tube Fin intercooler cores with inside turbulators combined with cast aluminum endtanks optimized by CFD for best possible internal airflow. The stock click connections have been eleminated and increased to a connection diameter of Ø70mm/2,756Inch ( for In- and Outlet, so this kit comes with reinforced silicone hoses. The result is excellent cooling properties and a lot less pressure drop then the stock intercooler. Despite of it´s size the weight of the complete intercooler is only 13,2kg. This Intercooler Kit is the best choice when it comes to performance gains and low intake temperatures and also the right thing for racing. All of our intercooler use an anti corrosion protective coating with perfect thermal heat dissapating character. Optimal cooling with clearly more power. Kit is ready for installation, 100% perfect fit. Easy installation, only some little adjustments at the plastic cooler support are necessary. All of our products undergo rigorous quality control.
kit comes with:
1 intercooler black
2 silicone hoses, HD
1 aluminum adapter
1 mounting material
1 installation instruction
Downpipe kit BMW N54 Engine 500001002true 70mm Downpipes
made from 1.4301 (SS304) stainless steel
no catalytic converters*
1:1 exchange to OEM units
CAD designed
for track and test
with flex part
*ECU will need to be coded to avoid engine management light errors.
Fitment - BMW 1er E81/E82/E87/E88 135i, BMW 1er E81/E82/E87/E88 M Coupé N54B30, BMW 3er E90/E91/E92/E93 335i N54
