Wagner Tuning Comp. Intercooler Kit Mitsubishi EVO X 2,5 inch - 200001097
Competition Intercooler Kit for Mitsubishi EVO X prepared for 2,5 in charge pipes
The high performance intercooler has the following core dimension (530mm x 318mm x 100mm) and thus offers a 19% larger cooling surface and 70% more charge air volume compared to the original intercooler. The newly developed competition core supports a very high ratio of airflow and is also very light. The weight of complete intercooler is only 10,3kg. The endtanks of the intercooler are made ??of cast aluminum and have been optimized under flow analyzes in the CAD system. With the help of additional air baffles, inside inlet, providing for a uniform filling of the intercooler. The stock click connections have been eleminated and increased to a connection diameter of Ø70mm for in- and outlet. The result is excellent cooling properties with minimum back pressure. So this kit is just the right thing for racing. It is mounted to the original mounting points and is easy to perform (real plug & play). Optimum cooling of the charged air with a clear increase in performance!
stock intercooler: cooling surface 1421cm² / charge air volume 9,9L
WAGNERTUNING intercooler: cooling surface 1685cm² / charge air volume 16,9L

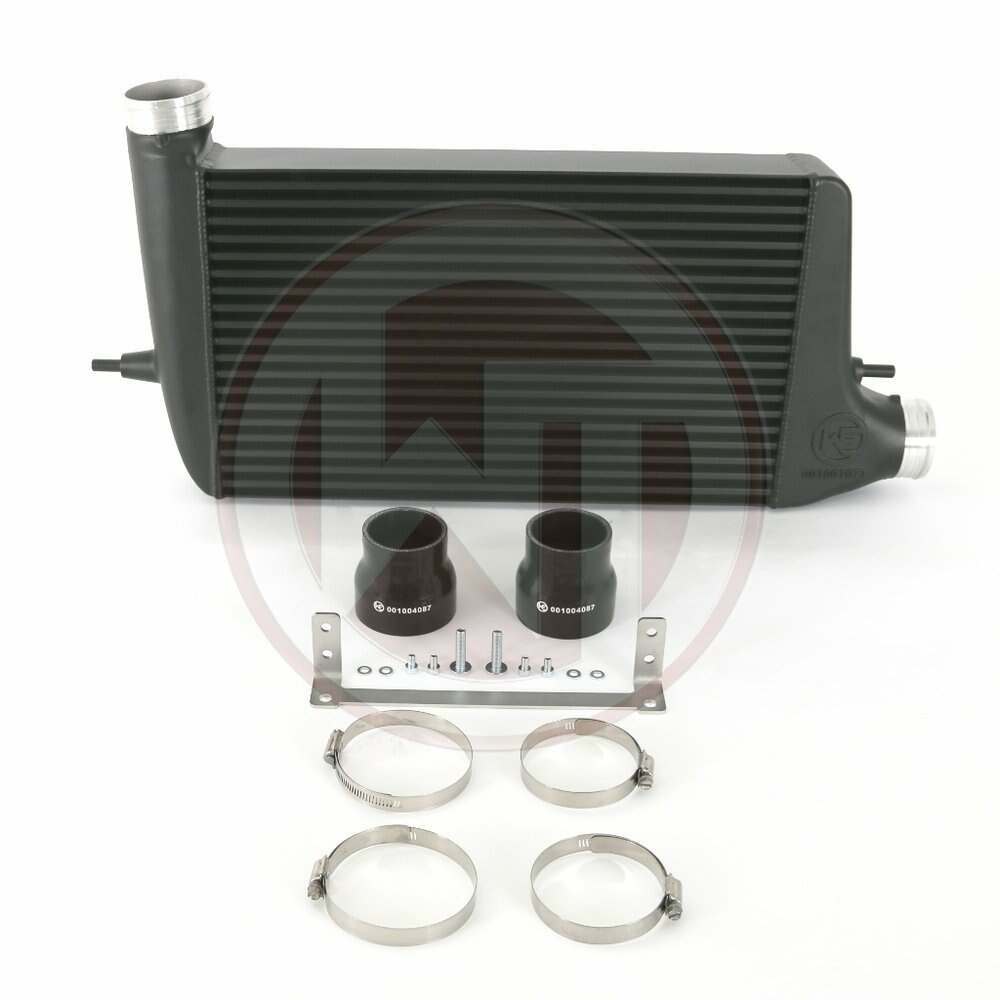

packing list:
1 intercooler painted black
2 silicone hoses (Ø2,75 in - Ø2,5 in)
1 mounting material
1 installation instruction
Fitment - Mitsubishi Lancer EVOLUTION X
