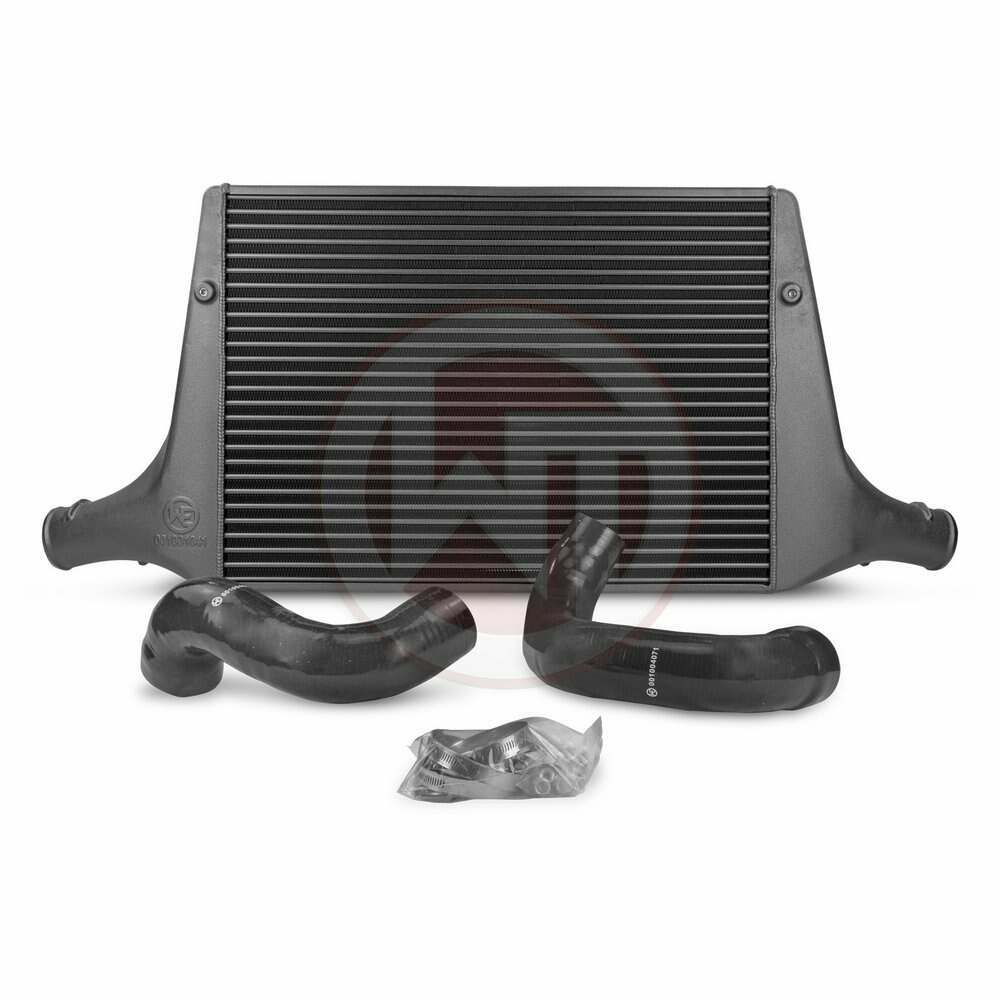

Wagner Tuning Competition Intercooler Kit Audi SQ5 3,0Bi TDI - 200001084
Competition Intercooler Kit for
Audi SQ5 3,0BiTDI 8R 230KW/313PS 2012-2015 (CGQB)
Audi SQ5 3,0BiTDI Competition 8R 240KW/326PS 2015- (CVUB)
Audi SQ5 3,0BiTDI Plus 8R 250KW/340PS 2015- (DEHA)
Audi Q5 3,0TDI 8R 180KW/245PS 2011-2014 (CDUD)
Audi Q5 3,0TDI 8R 190KW/258PS 2013- (CTBA)
This competition intercooler has the following core size (610mm x 440mm x 65mm= 17,446L / 24Inch x 17,3Inch x 2,56Inch = 1064,62Inch³), providing 178% more frontal area and 158% more volume compared to the stock mounted intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improving the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. Despite of it´s size the weight of the complete intercooler is only 9,1kg.
Constructed of the highest quality TUBE and FIN intercooler cores with inside turbulators combined with cast aluminum end tanks optimized by CFD for best possible internal airflow.
The inlets and outlets of the intercooler have been increased to Ø 67mm (2,64Inch), so this kit comes with reinforced silicone hoses. This intercooler is the best choice when it comes to performance gains and low intake temperatures. A lot less pressure drop then OEM intercooler.
Anti Corrosion protective Coating with perfect thermal heat dissapating character.
Optimal cooling with clearly more power. Kit is ready for installation, 100% perfect fit. Fitment is easy, replacing the OEM intercooler. All of our products undergo rigorous quality control.
OEM Intercooler: Cooling Surface 1207,5cm² / Charge-Air-Volume 9,05L
WT EVO 2 Competition: Cooling Surface 2684cm² / Charge-Air-Volume 17,4L
kit comes with:
1 intercooler
2 silicone Hoses [67mm (2,64Inch) in and outlet]
4 hose clamps 1 mounting material
1 installation instructions
Fitment - Audi SQ5 8R 3.0 BiTDI, Audi Q5 8R 3.0 TDI
