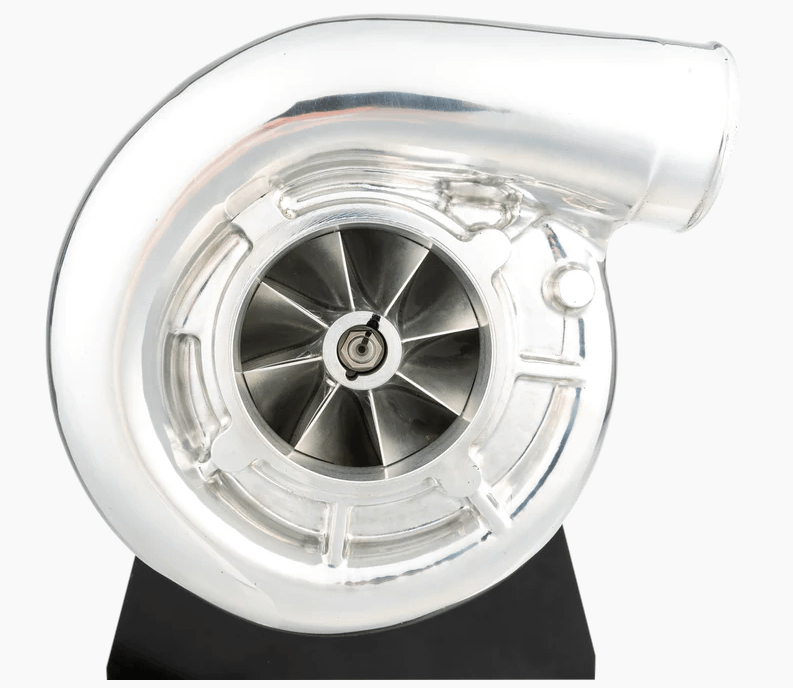

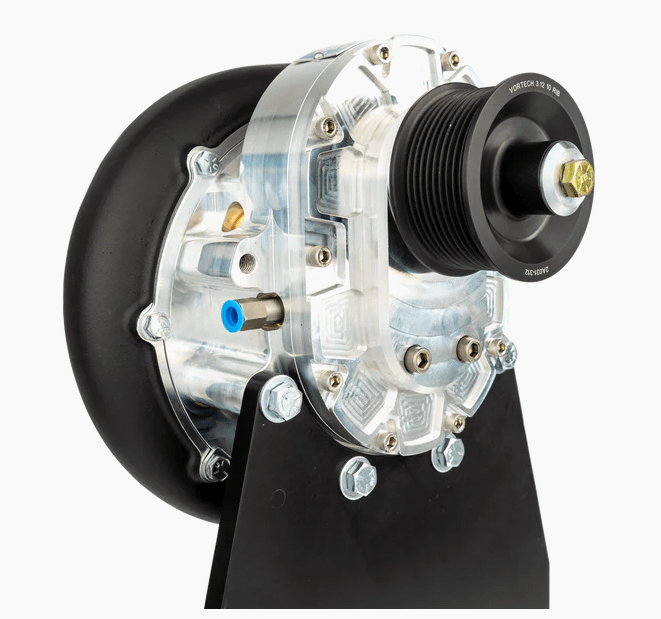

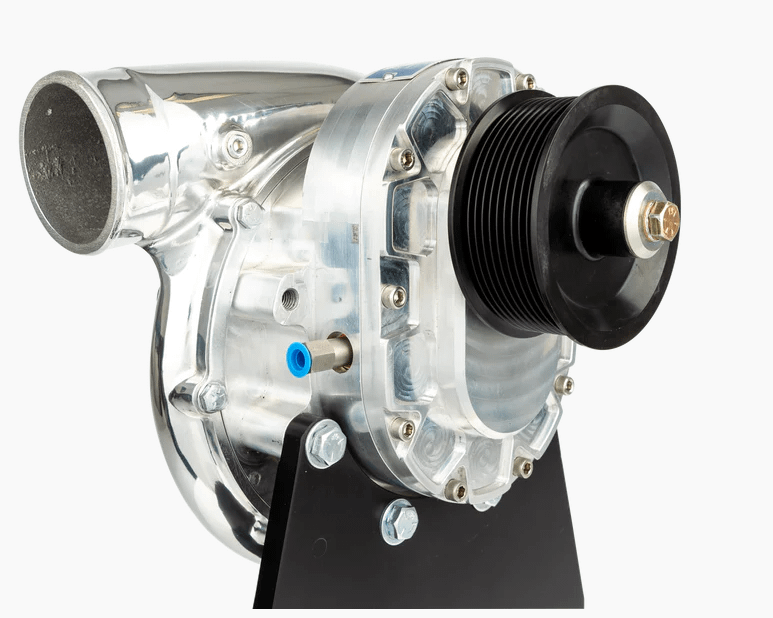

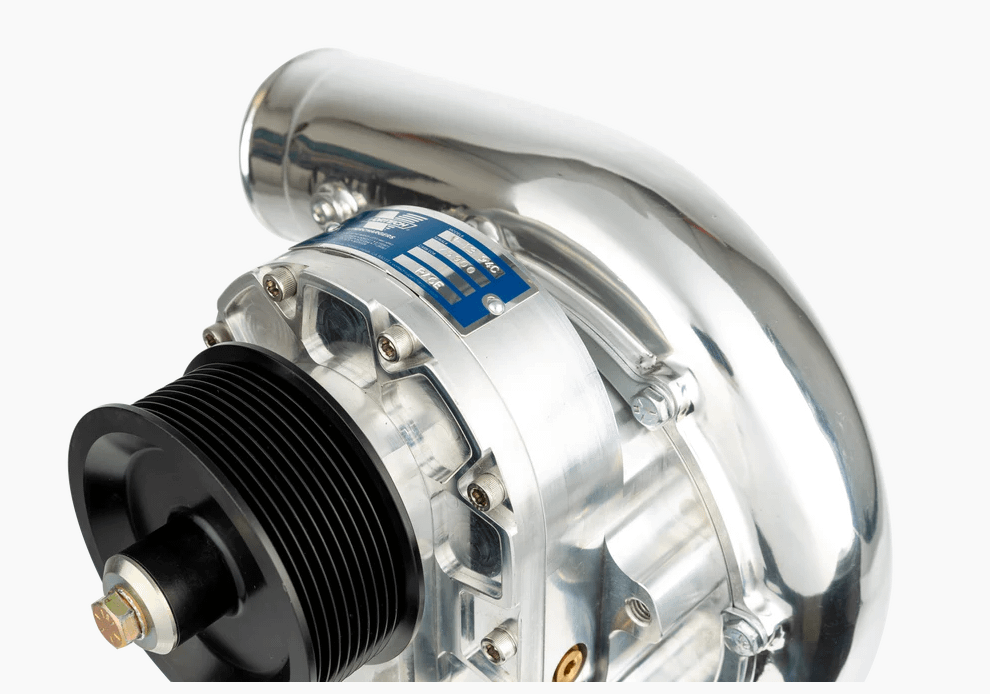

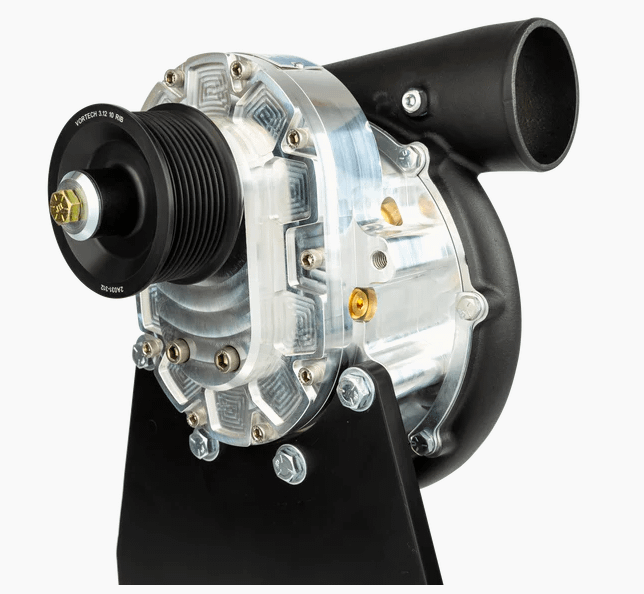

Vortech V-13 ‌V-13 94C S/C Assembly - CCW Rotation - Polished Finish - 2Q129-018

Vortech Engineering is proud to announce the release of the V-13 94C, an all billet heavy duty gear case, centrifugal supercharger. The V-13 is the real deal; an actual “big power in a compact compressor”, and it is here today. Designed to be a direct upgrade for those looking for the next logical horsepower step beyond the legendary V-7 Supercharger units, the V-13 94C is a continuation of durable, high efficiency Supercharger compressor stages that has kept Vortech as the top choice of horsepower enthusiasts all over the world for generations.

Performance Specs
Internal Step-Up Ratio: 3.45:1
Max Speed: 65,000 RPM
Max Boost: 35+ PSI
Max Flow: 1,950+ CFM
Max Power: 1,500+ HP
Peak Efficiency: 78%

Dimensions
Discharge OD: 3.0"
Inlet OD: 4.0"
Inducer Diameter: 3.70"
