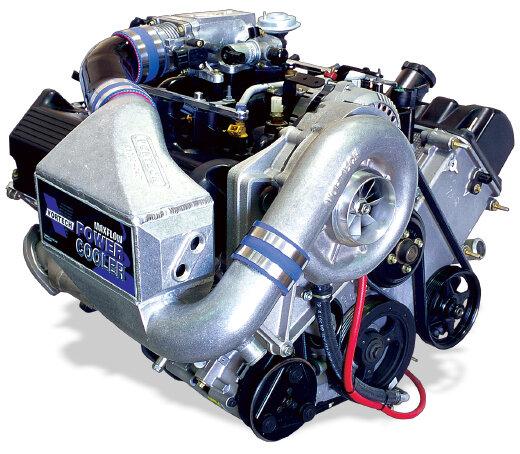

Vortech 2000-2004 GT 4.6L V-3 Si-Trim Tuner Kit (Satin)
The 2000-2004 Mustang GT comes from the factory with an impressive 260 horsepower and 302 ft/lbs of torque. A Vortech supercharging system can safely increase this to 364 horsepower and 371 ft/lbs of torque. You will be impressed by the seamless integration of the supercharger system and the true supercar performance it delivers.
This system features the all-new V-3 Si-Trim supercharger. The V-3 supercharger features an internally lubricated transmission, allowing for supercharger installation and operation without oil lines.
Helical gear design with 3.6:1 step-upIncludes remote fluid drain hose (attached to supercharger) that allows for simple fluid changes without removing the supercharger from the vehicleA ventilated gear case assembly eliminates any potential internal pressure issues that are currently associated with non-vented competitive designsIntegrated gear case baffling for proper oil controlSimple oil slinger design does not require separate shaft or bearing set. This provides proper fluid delivery to gears and bearingsSuperchargers are factory pre-filled with our special synthetic fluid.Integrated dipstick for simple fluid checks
NOTE: Battery MUST be relocated to the trunk to run the V-3 Si-Trim Blower
Vortech Tuner Kit Components
Vortech tuner kits do not include fuel or engine management, which must be provided by the installer for proper engine operation. The following items are included (unless otherwise noted):
<All-new Vortech V-3 Series internally lubricated supercharger High performance ignition system with boost timing retard for proper timing curve* High flow air intake system with a reusable air filter and specially formed polypropylene plastic inlet ducts for minimum restriction and superior fit Heat resistant silicone hose coupling Premium grade flex hose Stainless steel clamps Carefully designed and flow tested cast aluminum and/or roto molded urethane air discharge tubing Compressor bypass valve OEM style single cast 356 aluminum mounting brackets heat treated to T-6 specifications for strength Supercharger drive pulley Integrated belt tensioner Premium drive belt Heavy duty mounting hardware Tie wraps Polished finish Heavy duty engine oil lubrication system Step-by-step, fully illustrated installation manual 3-year limited warranty on most systems Mandrel bent, TIG welded and powder coated cooling water re-route kit**some applications
