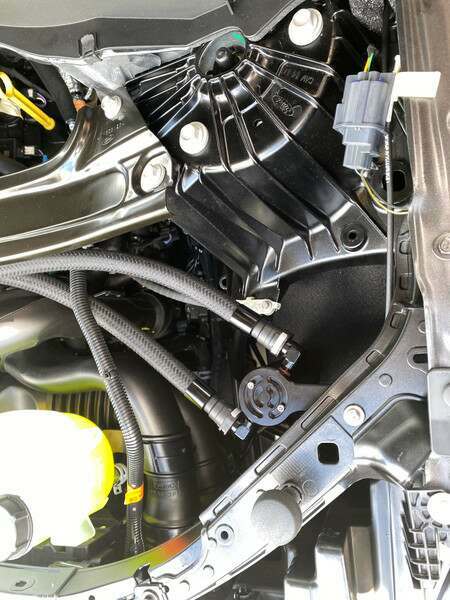

UPR's compact, Plug N Play ™ Oil Separator Catch Can kit for your 2025 Ford Explorer ST 3.0 Ecoboost SUV. This new catch can kit is perfect for customers that do not want to drill or modify their vehicle. Easy 5 minute install that you can do in your driveway! This system is designed to be easy to install, and easy to return to stock if needed for service visits or lease turn in. You can be sure that no other manufacturer can give you the level of quality and performance that UPR's Catch Cans consistently deliver.
Does not require drilling of your factory intake tube. Does not require removing or replacing the driver side orange fitting at the crankcase vent connection. This simple kit will effectively separate the oil that would normally travel from your PCV valve to the intake manifold greatly reducing intake valve deposits and combustion chamber contamination.
This kit is 100% modular and can be fully disassembled or emptied and cleaned in seconds. It utilizes UPR Braided Hose and Billet Hose Ends to give you the Best Looking and Best Performing Setup Possible- No cheap stock lines here that have been cut and spliced on! Featuring the New UPR Plug N Play ™ Catch Can Fittings, you can empty the can without removing the intake cover or catch can lines from your engine. (UPR Exclusive Push Button Fittings) We have hundreds of hours testing our new Multi-Stage Oil Separator to ensure proven results will exceed your expectations. We even double the size of the oil containment chamber compared to other brands. This patented design is the most advanced Internal function from coalescing to condensing every aspect was engineered properly. It cannot be compared or confused with units that have side by inlets and outlets with screen rolled up and shoved in them. The Multi-chamber technology in every UPR catch can will capture and filter all the oil vapor and trash from getting into your air intake tract. This is the most important reason for a catch can.
Manufactured from Domestic T-6 6061 Aluminum bar stock and finished off using only the best Diamond cutters to exceed your expectations of what a superior product should fit and look like.
UPR is the largest aftermarket catch can manufacturer in the country. Continually improving our designs to stay ahead of the competition and give you the cutting edge technology of tomorrow today. We are so confident we offer an unconditional warranty on our products to let you know you can always count on UPR Products.
THIS PART DOES NOT CARRY AN CARB EO NUMBER, AND THEREFORE IS FOR RACING / OFF ROAD USE ONLY. NOT FOR SALE OR USE IN CALIFORNIA DUE TO CARB/EMISSIONS. ALL CALIFORNIA ORDERS WILL BE CANCELLED AND REFUNDED
All UPR catch can kits are ready to install as-is. We offer upgrades to allow you to tailor a kit to your needs. Descriptions of the upgrades are below.
UPR Billet Pro Series Check Valve:
This is a larger, higher flowing check valve than the standard check valve. It will increase the vacuum through the catch can and deliver better crankcase evacuation. The improved crankcase evacuation translates to increased MPG and more responsive low speed driveability.
UPR Billet One-Way Valve Cover Breather:
These are Valve Cover Breathers with a one-way valve inside of it. These are designed to allow excess/positive crankcase pressure to exit through the breather when in boost. Then it closes to return to vacuum while driving to prevent un-metered air from entering to maintain perfect driveability. These are also ideal for vehicles in very cold or freezing weather as it allows crankcase pressure to escape until condensation or frozen condensation in the PCV hoses melts or thaws. This is a must to ensure maximum engine seal life. The UPR filter is washable with just warm water and mild detergent like dish soap.
UPR Adjustable Billet PCV Fitting:
The adjustable Billet PCV fitting includes 4 different size jets. It eliminates the failure prone factory PCV and still allows for the needed restriction. Jet sizes and application basics for Adjustable version are explained below.
» .100 Jet size is slightly more restrictive than the factory PCV fitting to allow you to restrict the PCV for vehicles ingesting too much oil through the PCV and wanting to reduce oil consumption.
» .125 Jet size is slightly less restrictive than the factory PCV fitting to allow you to adjust the pcv to increase flow a bit more than factory for vehicles that only need minor adjustments to eliminate vapor locking in the PCV system.
» .150 Jet size is even less restrictive for the boosted vehicles that tow and are driven harder to increase flow more than factory for vehicles that only need more adjustment to eliminate vapor locking in the PCV system.
» .175 Jet size is the least restrictive compared to the factory PCV fitting and allows for the largest adjustment of the jets for modified vehicles that generate a lot of blow-by / back pressure to eliminate vapor locking / flooding the clean side of the PCV system with oil.
Product Features:
» 6oz Capacity Can
» Show Quality Finish
» Can measures 2 x 6"
» Prevents Oil from Entering Intake Manifold
» Patented Multi-Chamber Design Traps Oil
» High Quality CNC Machined Billet Aluminum
» Plug N Play ™ fittings at Catch Can connections
» 5/8" Oil Resistant Continental Braided Hose included
» Improves Fuel Economy, Throttle Response & Performance
» Available in Satin Silver or Black - Select Finish Above
Installation:
Installs in 5-10 minutes or less.
Includes:
» Adjustable Mounting Bracket
» OEM style 5/8" Factory Connectors
» 5/8 Continental Braided Hose
» Plug N Play ™ quick release connectors & billet fittings
Fits These Vehicles
2025 Ford Explorer ST 3.0L Ecoboost *
* Does not fit Hybrid
