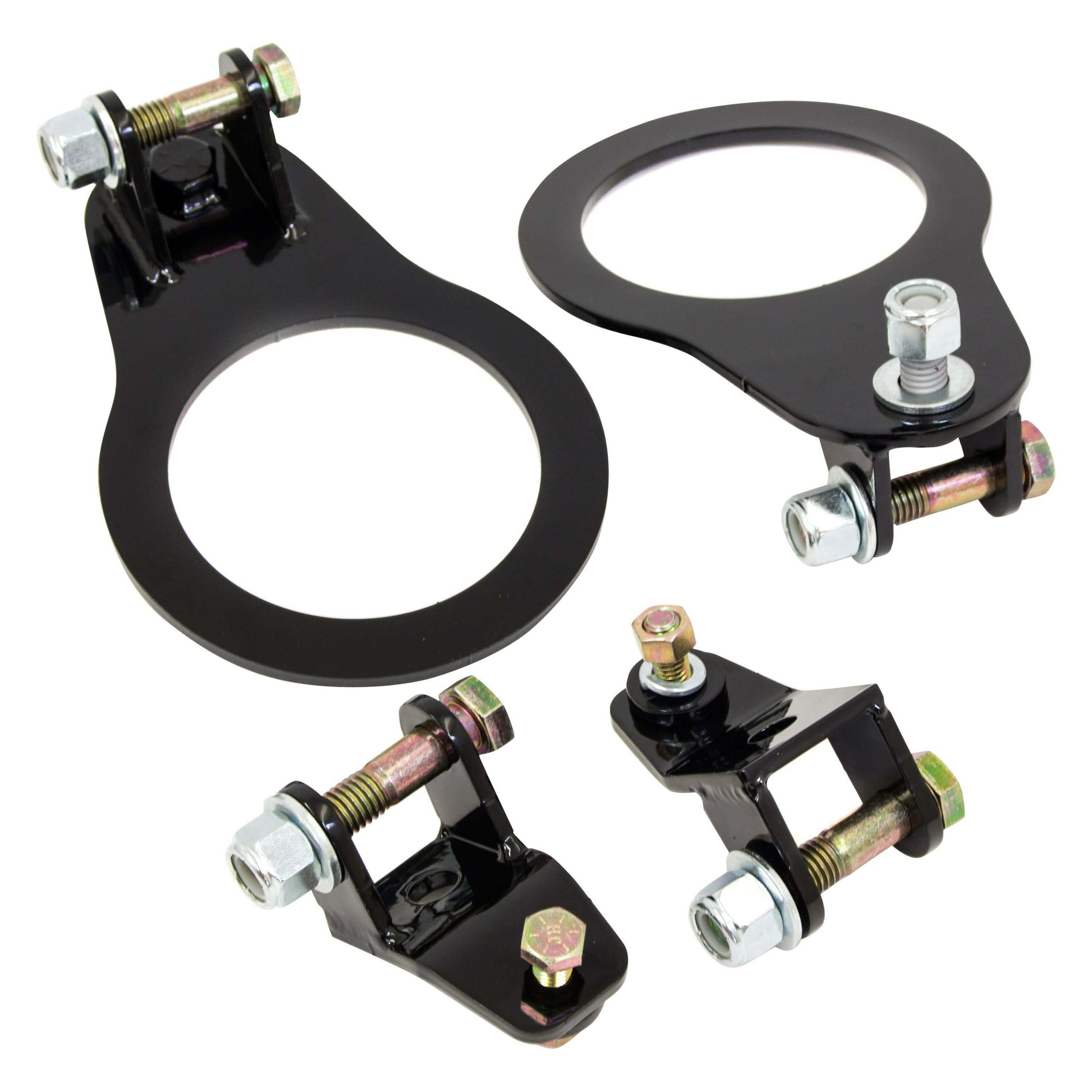

UMI Performance 1982-2002 GM F-Body Rear Coilover Brackets, Bolt In - 2045
UMI Performance, Inc is proud to introduce our P/N 2045 GM F-Body bolt-in rear coilover bracket kit. This kit allows installation of a true double rod end performance shock in place of the standard stud type shock. P/N 2045 can be used with standard type springs as well as most aftermarket lowering springs. An innovative, TIG welded lower bracket holds the shock in double shear and works with standard axle mounts as well as with most common relocation brackets (spacers included). Drilling two 3/8” holes is required (no welding). The teardrop shaped upper mount is also double shear and features a straight pull design for optimum performance. Designed for 14”-16” ride height dampers with a 1.25” width and ½” bushing diameter. Contact UMI for further information. Supplied powder coated black, includes hardware. All UMI components are 100% manufactured in Philipsburg, PA-USA.
UMI Performance bump steer kits relocate the outer tie rod pivot point which results in decreased toe change during wheel travel. Standard kits include sleeves, rod ends, jam nuts and high quality, direct fit tapered studs. Race kits require drilling of the spindle and include heavy duty 5/8 bolts. Race kits are recommended for autocross and road race applications while standard kits are indicated for street/strip use.
