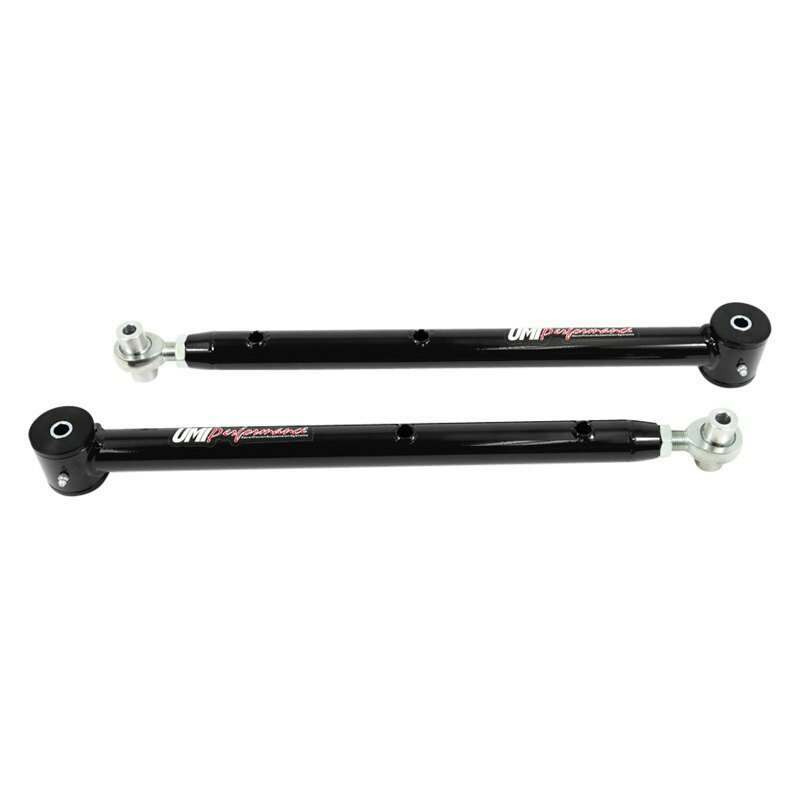

UMI Performance 1978-1988 GM G-Body Tubular Single Adjustable Lower Control Arms - 3014-B
UMI Performance single adjustable lower control arms feature an Energy Suspension polyurethane bushing set-up on one end and a QA1 spherical rod end on the other. This type of set-up allows rear end adjustment when needed while also helping to eliminate and reduce rear end bind. The QA1 rod end allows rear end free movement when high handling, auto cross or road race is a concern, it also allows you to lengthen and shorten the control arms adding additional clearance when trying to squeeze those larger tires under the vehicle. The adjustment of these arms can also be used for custom rear end installs when centering and rear end movement is needed. This type of set-up works excellent as a drag race item, auto cross and street driving. The polyurethane bushings are designed to be bolted to the chassis of the vehicle for a quiet comfortable operation while the QA1 rod end attaches at the rear end. Each control arm features the correct provisions for adding a stock or aftermarket sway bar. Sway bar holes are reinforced with a 0.120" wall thickness steel sleeve TIG welded and sanded into place.
UMI Performance bump steer kits relocate the outer tie rod pivot point which results in decreased toe change during wheel travel. Standard kits include sleeves, rod ends, jam nuts and high quality, direct fit tapered studs. Race kits require drilling of the spindle and include heavy duty 5/8 bolts. Race kits are recommended for autocross and road race applications while standard kits are indicated for street/strip use.
