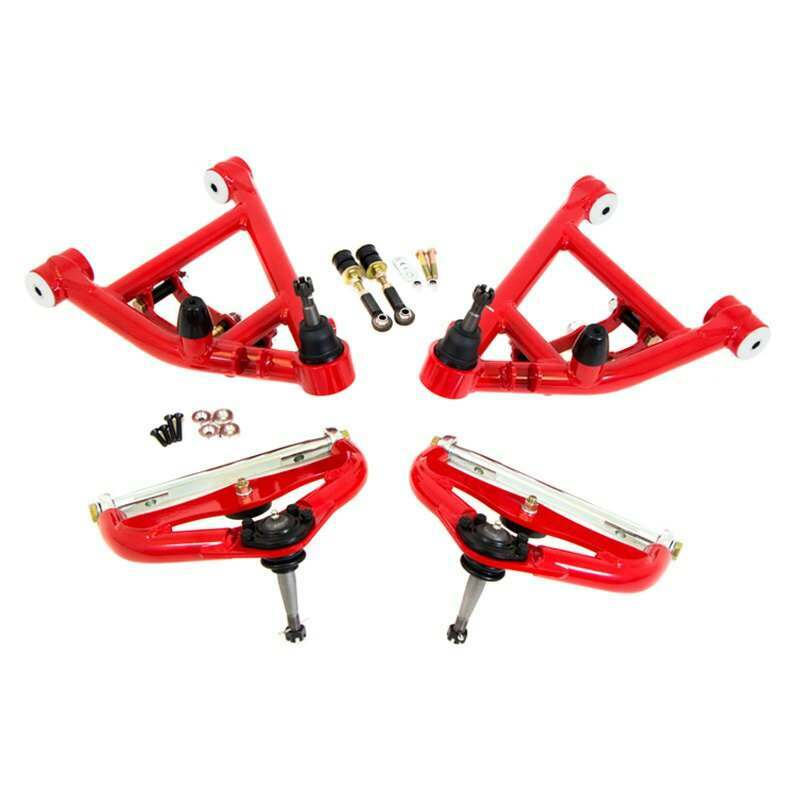

UMI Performance 1978-1988 GM G-Body, 1982-2003 S10/S15 Upper & Lower A-arm, Coilover Only - 305756-3-R
Tremendous front grip and a host of features can be yours with UMI’s 305756-3 kit. This a-arm kit enables 10 degrees caster while maintaining standard track width and wheelbase. The lower shock mount is removable to allow spring/shock changes at the track. The tall lower ball joint optimizes roll center, camber gain, center of gravity and lowers ride height by ½”. Delrin bushings help the lower a-arm to travel smoothly for bind-free operation. The new lower a-arm works in conjunction with our popular 3056-3 adjustable upper arm which features minimal shim adjustability, 1” taller-than-stock ball joints and super smooth rod ends. Also included on the lower a-arm is a double shear sway bar mounting system which accepts UMI sway bars and many other manufacturers stock location aftermarket units. An aluminum steering stop is adjustable and limits steering lock to prevent tire and wheel damage. Available in UMI red or black powder coat. 100% designed, manufactured and raced with pride in the USA. Battle tested on the iconic UMI Green Machine.
UMI Performance bump steer kits relocate the outer tie rod pivot point which results in decreased toe change during wheel travel. Standard kits include sleeves, rod ends, jam nuts and high quality, direct fit tapered studs. Race kits require drilling of the spindle and include heavy duty 5/8 bolts. Race kits are recommended for autocross and road race applications while standard kits are indicated for street/strip use.
