For all cylinder head orders expect build time to be 4-6 weeks.

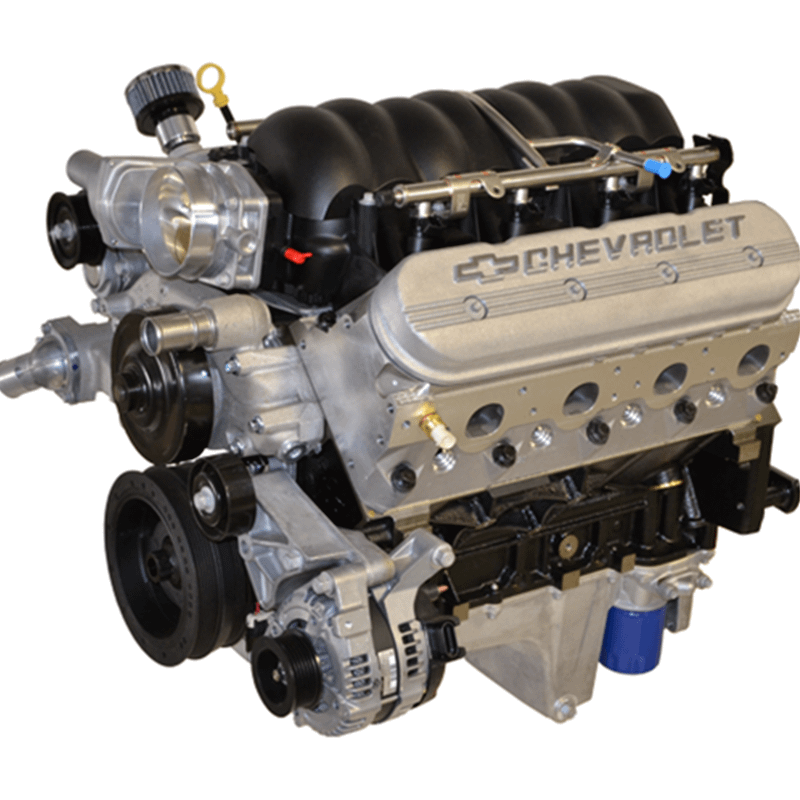

TSP 408 CID "Pre-Runner" Cathedral Port Off-Road Engine Package - TSP-25-TSPPreRunnerPkg
Texas Speed & Performance's off-road engine packages are your ultimate solution for off-road racing! Each package is precision machined with state-of-the-art CNC equipment that allow for the strictest of tolerances, and every TSP engine is hand-assembled by experts that deal ONLY with LSx-based and Gen 5 LT engines! All of our engine machining and assembly, as well as our cylinder head and camshaft production, is in-house and NOT sourced out. All components in our engines are brand new parts, including the block, so you are not buying an engine that uses any remanufactured items! We are the only LS and Gen 5 LT-based company that digitizes and blueprints every engine block on a CNC machine to the factory GM specifications! Our off-road engine packages are designed to provide our customers with a true drop-in engine that is ready to run, and these engines have many upgraded components to withstand the harsh racing environment! These are hand-built engines that receive the care and attention that you should expect when purchasing your engine! Our engines are built for strength, durability, and power, so your new TSP engine is ready for whatever you can throw at it!
The TSP 408 CID "Pre-Runner" Cathedral-Port Off-Road Engine Package will have a lopey idle and will require a minimum of a 3,000 RPM stall speed torque converter. This package will include the following items:
GM 6.0L-Based Cast-Iron Engine Block
Priority Thrust Bearing Oiling to Alleviate Oil Starvation to the Center Thrust Bearing
ARP Main Stud Kit
Texas Speed & Performance Forged 4340 4.00" Stroke Crankshaft
Texas Speed & Performance Forged 6.125" Super I-Beam Connecting Rods
CP Pistons 4.03" Forged Piston Set with Steel Top/Napier 2nd Ring Set & HD Wrist Pins
11.25:1 Compression Ratio
Precision Race Components 247cc Cathedral Port Aftermarket Casting Cylinder Heads with TSP Dual Valve Spring Kit with PAC .700" 1207X Springs & Titanium Retainers
Texas Speed & Performance Custom-Grind Hydraulic-Roller Camshaft: 240/248, .629"/.615", 111 LSA
Texas Speed & Performance Chromemoly Hardened Pushrods
ARP 12-Point Head Stud Kit
Cometic MLS Cylinder Head Gaskets
GM LS1 Rocker Arms with TSP Trunion Upgrade Kit
Stainless Steel Hardware: Intake Manifold Bolts, Timing Cover Bolts, Valley Cover Bolts, Water Pump Bolts, Thermostat Bolts, & Oil Pump Bolts
GMPP LSA Center-Bolt Valve Covers with Ignition Coils
Melling High Pressure Oil Pump
IWIS C7R HD Timing Chain
Johnson Slow Leak Down Short Travel Link Bar Hydraulic Roller Lifters
63 lb./hr. Fuel Injectors (Rated @ 43.5 psi)
GM Hot Rod Oil Pan Kit as Standard
Improved Racing Oil Pan Baffle
Optional Front Drive Systems to Choose From
FAST 102mm Intake Manifold, GM Fuel Rail, and Nick Williams 102mm Cable-Drive Throttle Body
Setup with GM Sensors for 2002 LS1 Camaro/Firebird with 24x Reluctor Wheel
Complete GM Sensors
MSD Spark Plug Wire Kit
NGK Spark Plugs
Optional Engine Harness and ECM Available
GM Starter
12 Quarts of Joe Gibbs/Driven Break-In Oil (Break-In Only! Cannot Be Used During Racing Event)
AC Delco Oil Filter
We build all of our off-road engines with a 24x reluctor wheel and cable-driven throttle body. We can also build it for an electronic throttle body if you prefer for an additional cost. Our standard cost does not include an engine wiring harness or ECM, but these items can be added. Due to the intended use of these engines, we will include a base tune if you do choose to add the harness and ECM to your engine package, but we will require that you have the setup dyno tuned once it is installed and running.
All TSP engines will include two oil changes worth of Driven Racing break-in oil for no additional cost. Proper break-in oil and procedures for your engine are just as important as the build process! The Driven Racing break-in oil allows for proper ring sealing against the cylinder walls upon start-up, as well as for the break-in period once the engine is up and running. Most off-the-shelf engine oils do not have the necessary ZDDP additives to allow for proper break-in of a new engine, and we want to take every precaution possible to ensure that your new TSP engine receives a proper break-in! We also offer the Driven Racing oil for your new engine once your break-in is complete. We recommend using Driven Racing's DT40 5w-40 engine oil once the break-in is complete. The break-in oil is NOT intended to be used for racing, so it is imperative that you change your oil to a non-break-in oil before you race!
