True Motorsports Voodoo Booster on demand Fuel Pump Voltage Booster

Utilizing the scientific theory behind dual phase power supply design, the VooDoo Booster is a voltage booster designed to increase the voltage to your Fuel Pump in order to deliver more fuel under high demand situations. When triggered by an external source, the VooDoo Booster will increase the voltage output to 18.0 Volts so that Fuel Pump can deliver additional fuel to your high horsepower application. This voltage boosting approach is the most cost effective way to overcome fuel deficiency without having to purchase an expensive larger Fuel Pump.

FEATURES AND TECHNICAL SPEC’S:

• When the input trigger is activated, the output voltage will quickly transition to 18.0V output to the Fuel Pump.

• Can source up to 40 Amps of current from an input power source to drive a single Fuel Pump.

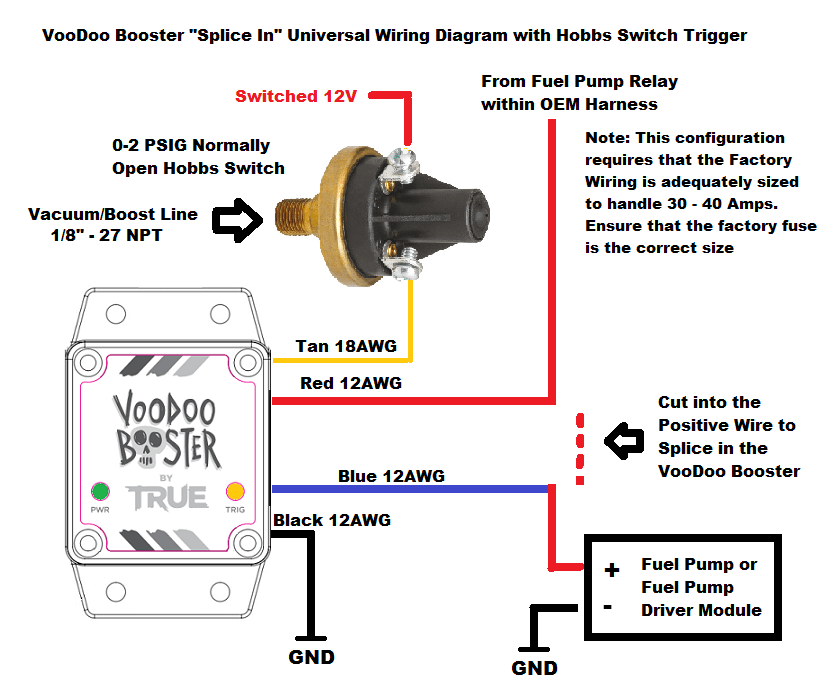

• When not triggered, the VooDoo Booster will pass the input voltage intended for the Fuel Pump directly to the output.

• Can be triggered from a voltage source as low as 5V.

• Dual LED indication to indicate power and trigger inputs.

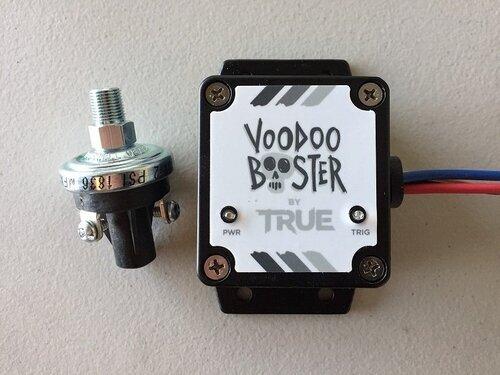

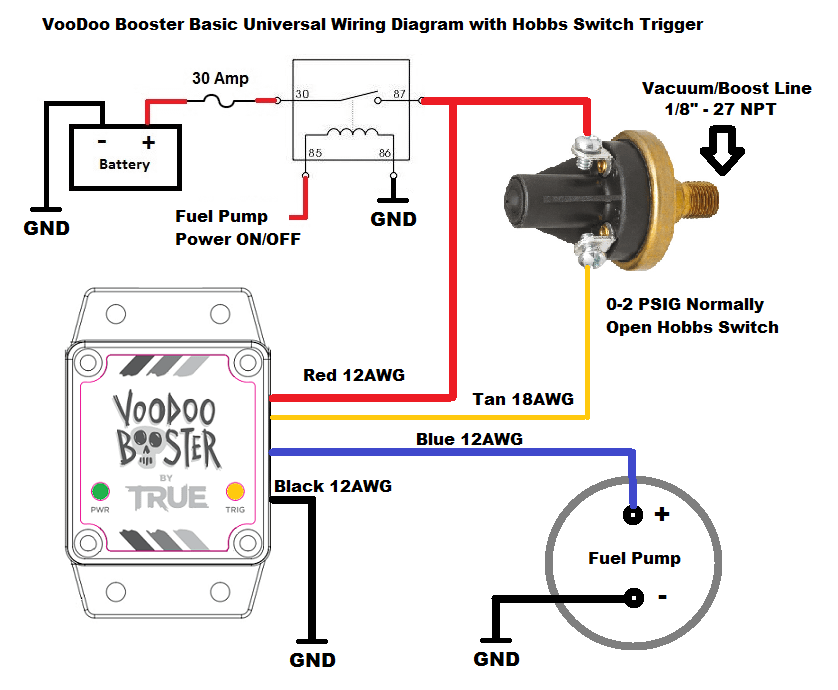

• An adjustable Hobbs switch can be added so that the Voltage Boosting can be applied between 0-2 PSIG of boost (w/Hobbs Switch option)

• Small, Lightweight, Easy to Install, and Power Efficient ( >95% Efficiency)

• The smallest and most efficient Voltage Booster for a Fuel Pump on the market… and MADE IN THE USA!

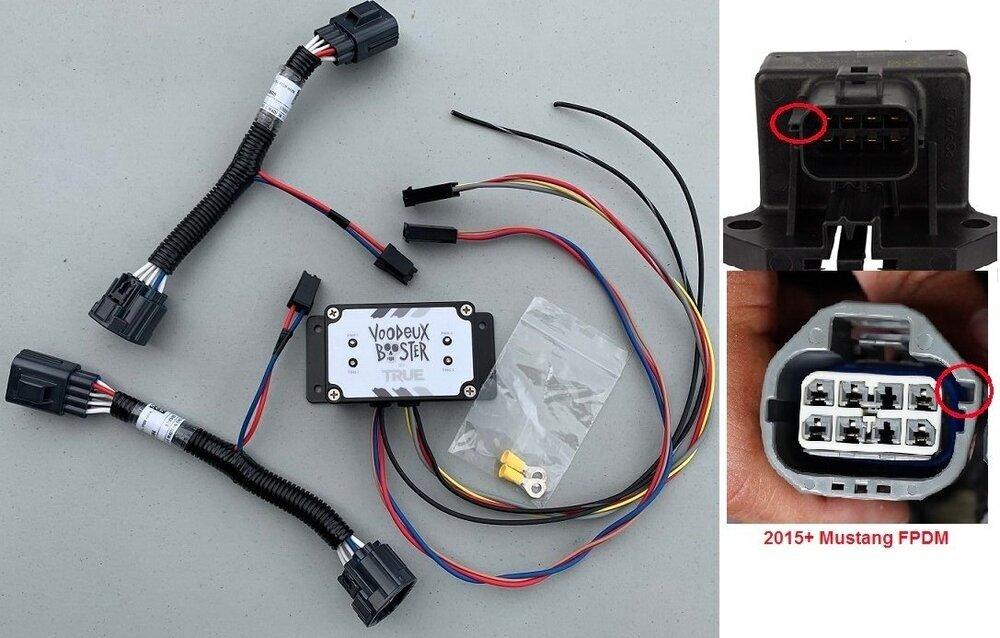

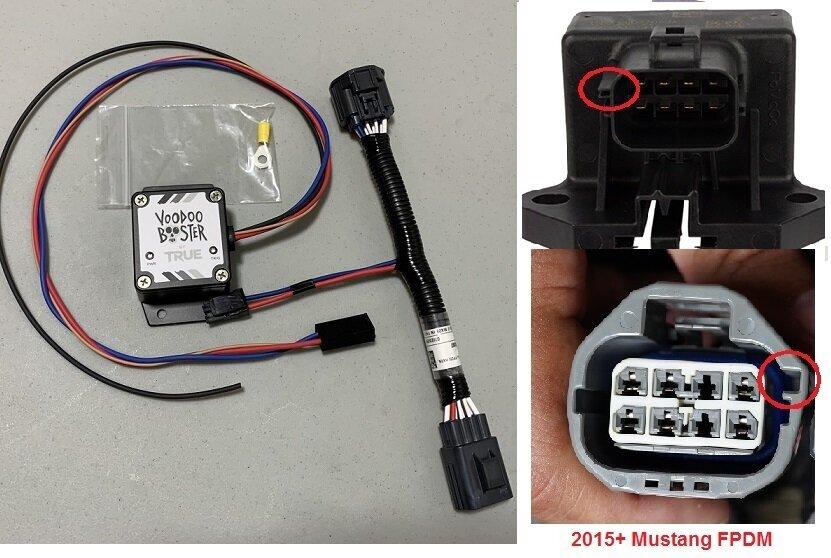

• PLUG AND PLAY OPTIONS ARE AVAILABLE! (Plug and Play Harnesses supply 18.0V to the output continuously to he Fuel Pump Control or Driver Module)
