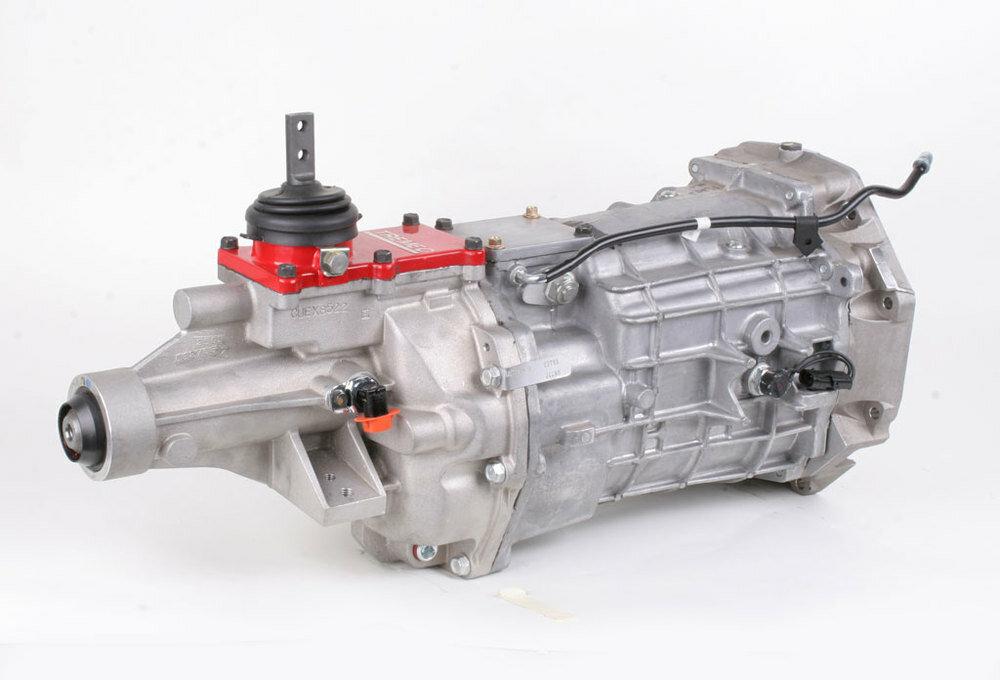

The kingpin of TREMEC's high performance line-up, the T-56 Magnum double-overdrive 6-speed transmission takes the very best from TREMEC's current OEM technologies and pairs it with the most popular features of the TKO 5-speed.
Able to withstand a massive 700 lb-ft. of torque while providing unbelievably crisp shifts, no other manual transmission on the planet offers as much combined strength, versatility, and general ease-of-use as the T-56 Magnum.
Known in its original equipment form as the 'TR-6060', the Magnum is an aftermarket version of the same transmission found in many of today's most celebrated factory super cars – including the ZR1 Corvette and ACR Viper – giving you refinement where you want it and strength where it counts.
The aftermarket's premier 6-speed performance manual transmission
700 lb-ft. of torque capacity
Reasonably light at 135 lbs. dry
Multiple shifter locations & dual speedo pickups for unmatched versatility
Choice of two different gear ratio sets (2.66 or 2.97), with unique double overdrive ratios
Incredibly short, extremely low-effort shift throws, with crisp, precise engagement
Modern OE supercar technology for the ultimate pro-tourers, road-racers, and more.
Ford TUET11010
Engine: Modular
Torque Capacity: 700
Includes Clutch Housing: No
Clutch Type: Mech
Speedo Type: Mech/Elec
Input Shaft Spline: 26
Output Shaft Spline: 31
First Gear Ratio: 2.66
2nd Gear Ratio: 1.78
3rd Gear Ratio: 1.30
4th Gear Ratio: 1.00
5th Gear Ratio: .80
6th Gear Ratio: .63
Reverse: 2.90
