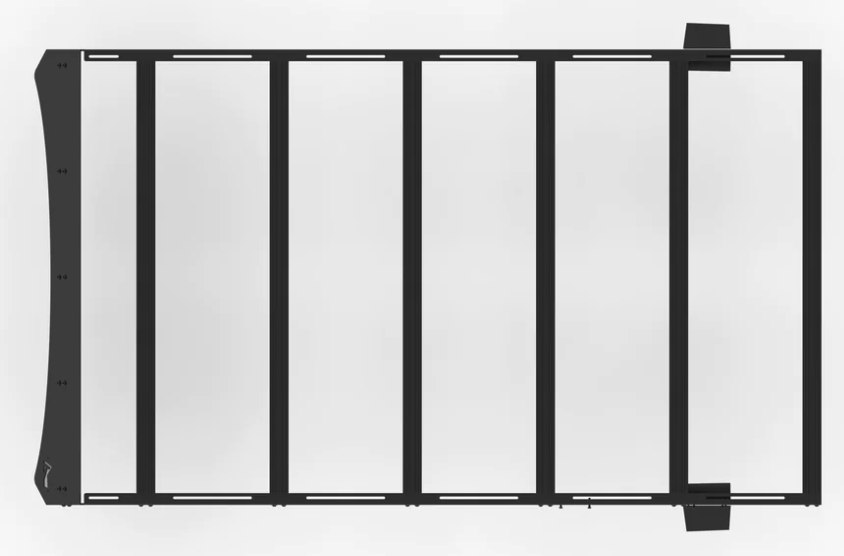

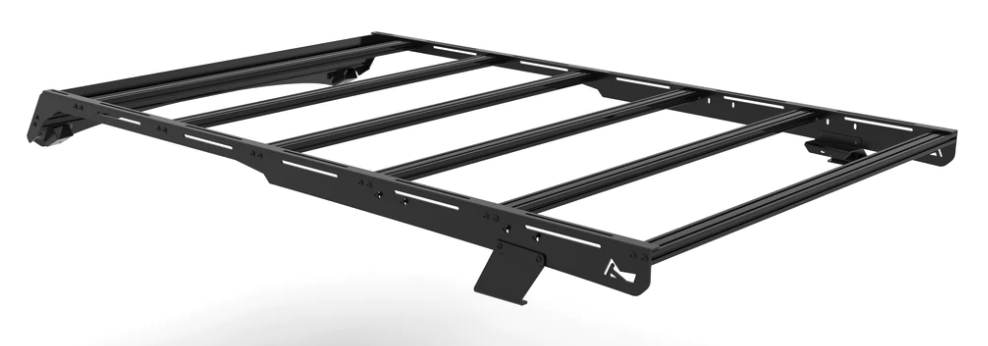

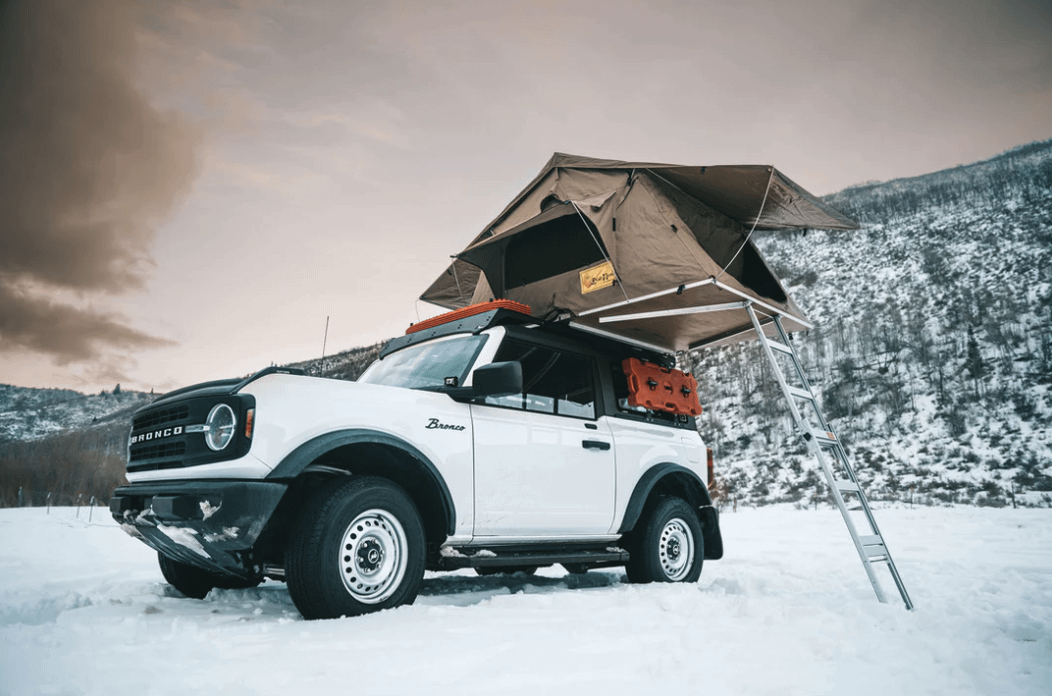

The long-awaited Ford bronco Roof Rack that works with the TrailRax Pak Rax! This Aluminum roof rack offers an assortment of ways to mount gear and tools for your next adventure. We use 5051 3/16" aluminum for the main panels that give extreme rigidness and durability for all the gear you plan to equip your Bronco with. We also have a large number of accessories available with this roof rack that will allow endless combinations and possibilities for the end-user.

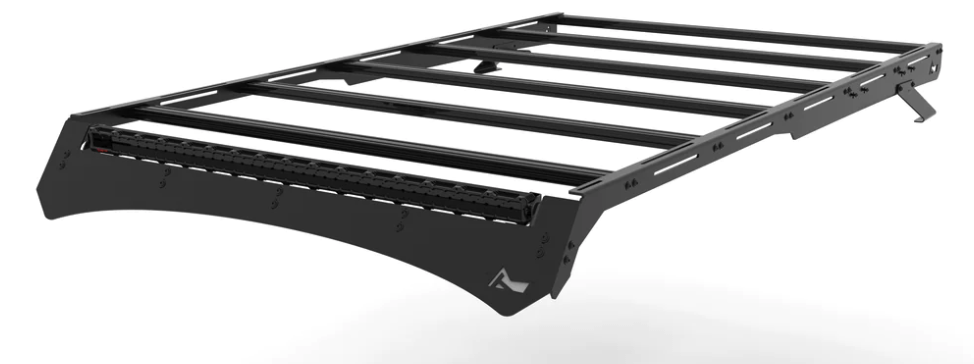

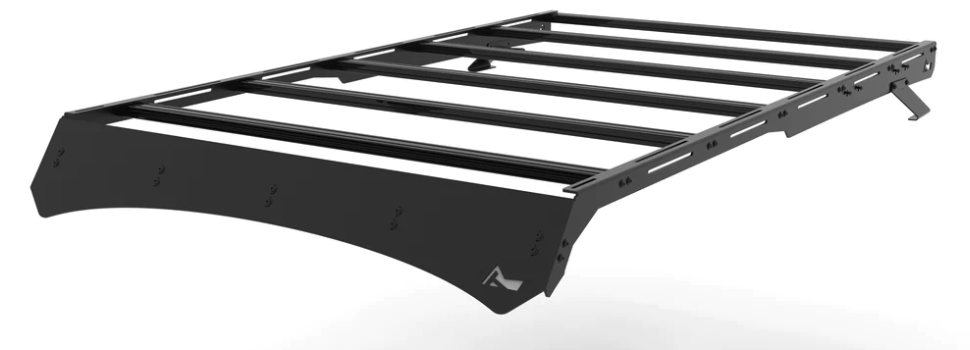

We added a wind deflector to the roof rack to eliminate wind-noise all together. As we test drove broncos with the MIC hardtop and ones with the OEM roof rack, we noticed a ton of wind noise and wanted to eliminate that noise as much as possible. We also worked with our friends at Heretic Studio to work on a cut-out to flush fit an offroad light onto the wind deflector. This combination of our roof rack and Heretic's 40" light will allow the light to sit below the top face of the aluminum TSLOT so that the rack is completely level for those larger items on the rack.
Our Aluminum extrusions/TSLOTS that come with the rack are anodized black and cut to length with absolute precision. The extrusions are made locally here in Utah and have a high-stress rating as well as deflection rating giving the user the best load capacity possible.
Our one-piece side panels for the roof rack offer extreme durability and capacity to the rack itself. It also offers a 90-degree bent channel that gives the end-user a full 360 degree area to mount even more accessories. These panels also come precut with slots to add more extrusions and tools to the side panels, offering more modularity and customization.

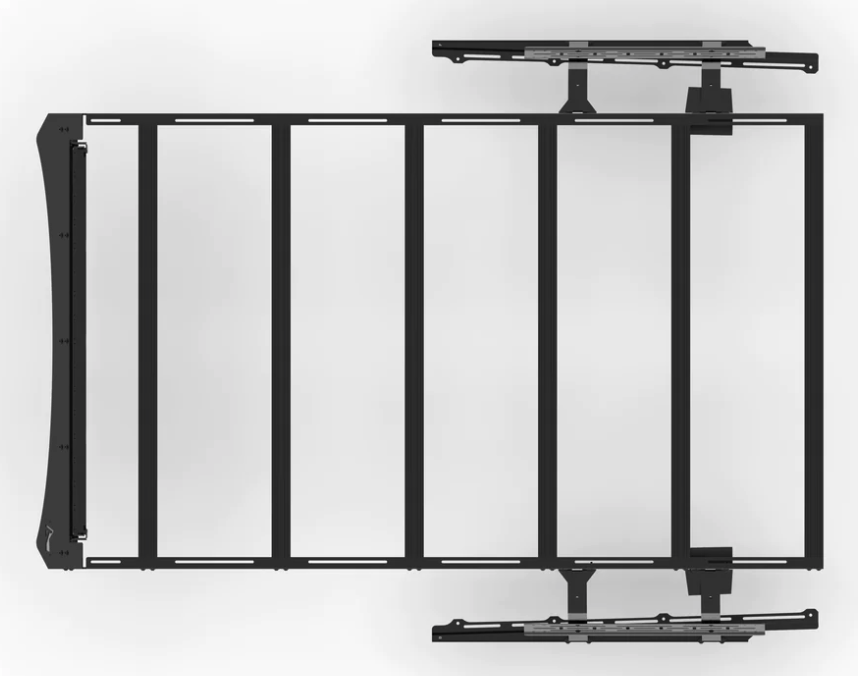

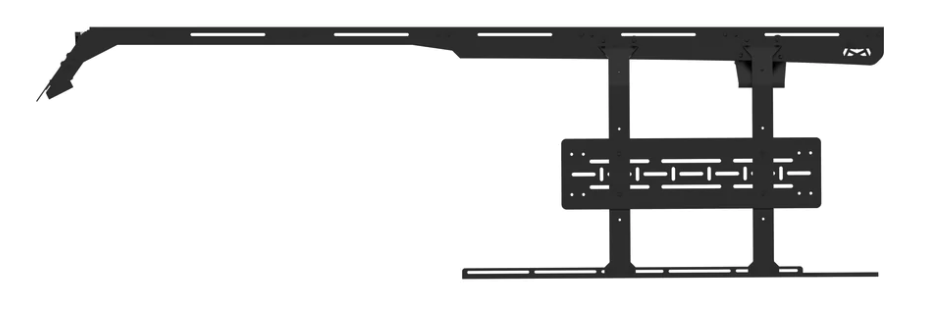

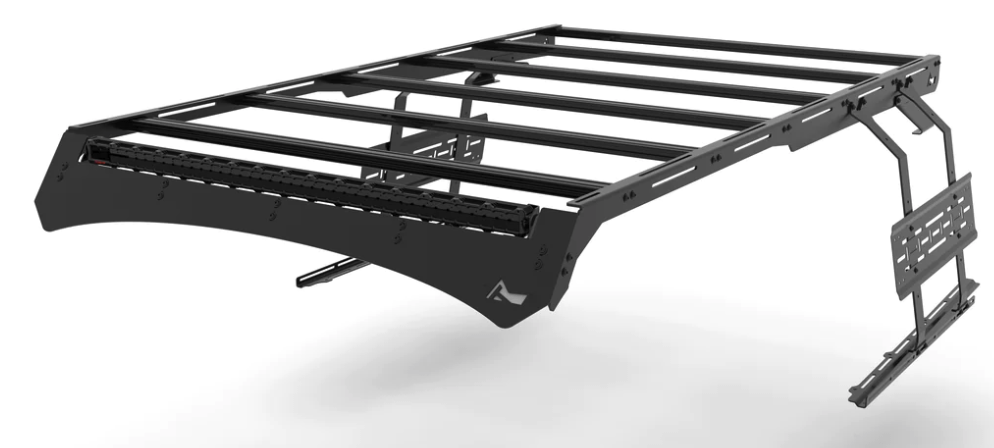

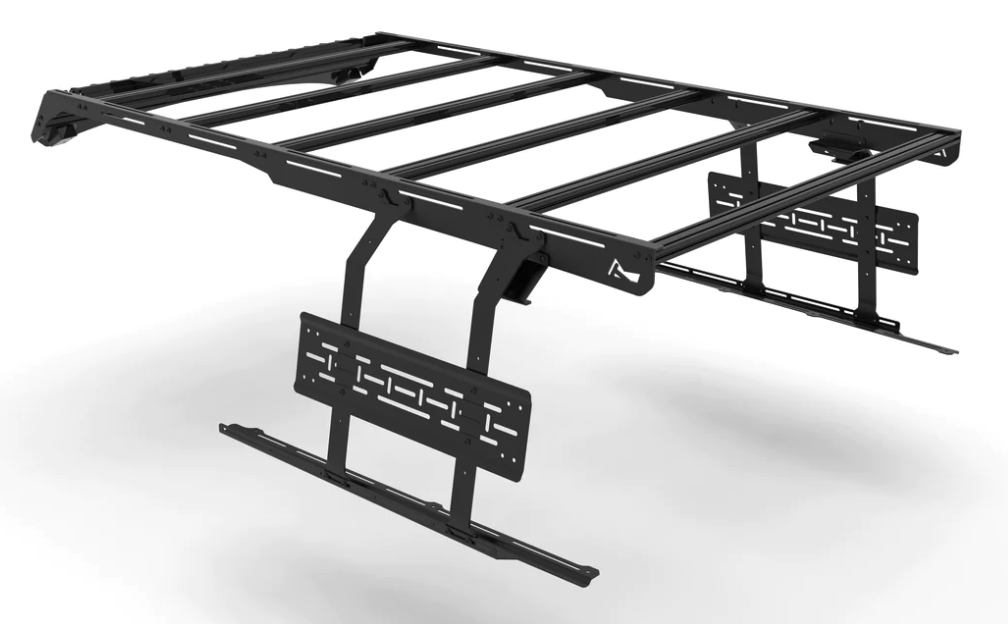

The mounting system uses a clamping system that clamps onto the OEM Ford MIC hardtop that offers an easy bolt-on design. The front of the full-length roof racks mounts into existing studs on the windshield offering a very rigid place to distribute loads on the roof rack. Our Pak Rax for the Ford Bronco mounts directly into the side panel and offers some weight distribution from the rack down to the body of the car which puts less stress on the MIC Hardtop allowing for higher capacity.
Our TrailRax Modular Roof Rack line is a great option for the all-out overlanders or desert racers as well as the entry-level overlanders or off-roaders. This rack gives the end-user the ability to upgrade or add to their roof rack as they need.
MIC Hardtop is required for the product. Fits all models and trims of Ford Bronco with a hardtop.
Brand's and Products recommend using with our TRMR Rack:
While you are not limited to these brands, these brands worked with us along the way in designing the rack. This gives us and them the ability to work with their products within the design to make sure everything fits properly and works together in harmony. If you are looking to accessorize your TRMR Rack, look no further than these brands if you want high-quality products that fit directly to your TRMR Rack with no headaches.
Specs:
- Overall height added to your Bronco- 3.845" from the center of the hardtop or 3.345" from the highest point of the hardtop (outer edges).
- Pak Rax load rating: 70 lbs per side respectively
-
Static load rating of the rack: 850 lbs evenly distributed across the rack
-
Dynamic load rating of the rack: 300 lbs evenly distributed across the rack
- These ratings are rated and measured WITH optioned Pak Rax. The Pak Rax allows for the distribution of weight to the body of the Bronco allowing the best stability and carrying load capacity.
Attributes of the TrailRax Modular Roof Rack for the Ford Bronco:
- Higher weight capacity than the OEM roof rack and others
- Easy bolt-on install
- Wind deflector to minimize annoying wind noise issues
- Cutouts for high-performance Heretic Studio lights
- Majority Aluminum construction to avoid any rust
- Low profile to fit in garages and more
- Offers the ability to remove the front and middle MIC hardtop panels while the rack is installed
Ford rates the Bronco roof with a factory rack at "Max load 110 lbs dynamic and 450 lbs static evenly distributed." All these weights will be at your discretion as they are above Ford's "recommended" capacities. We build our rack to be capable on its own of withstanding 850 lbs static, and 300 lbs dynamic. GVWR and other factors such as roof materials, the center of gravity, and wind dynamics all apply to any load you put on top of a vehicle, and you, as the user, are responsible for the safe loading and operation of your vehicle. Please review your Owner's Manual to review your recommended payloads for your Bronco.
