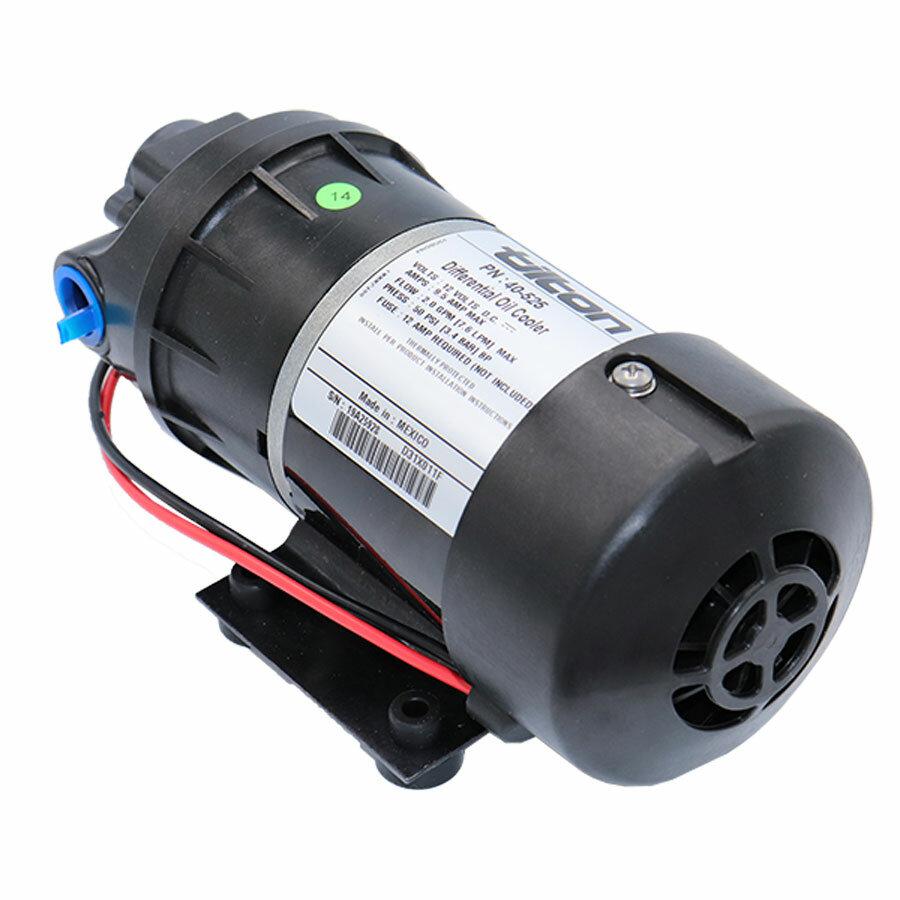

Tilton Racing PUMP, 12 VOLT, VITON, WITH BYPASS - 40-525
Tilton cooler pumps are ideal for pumping oil through transmission and
differential coolers. Cooler pumps feature an internal bypass valve and are
self-priming up to eight feet above the source from which it draws. Tilton
cooler pumps are a positive displacement type of pump, so its output is
directly proportional to the motor speed. For example, if a lighter load
increases the motor speed by 25%, then the flow rate increases by 25% as
well. The
Buna
cooler pump is designed for use with standard oils and coolants, while the
Viton
model is designed for use with corrosive fluids such as alcohol. The
intermittent duty pump is designed for applications where the pump does not
need to be used continuously, such as being turned on/off by the driver or
a relay at established temperatures.
Intermittent use pumps are designed for applications where the cooler pump
does not need to be used continuously, such as being turned on/off by the
driver or a relay at established temperatures. Buna or Viton rubber
diaphragm and check valve options are available.
Continuous duty pumps are designed for applications where the pumps needs
to operate continuously for longer than two hours at a time without cool
down.
