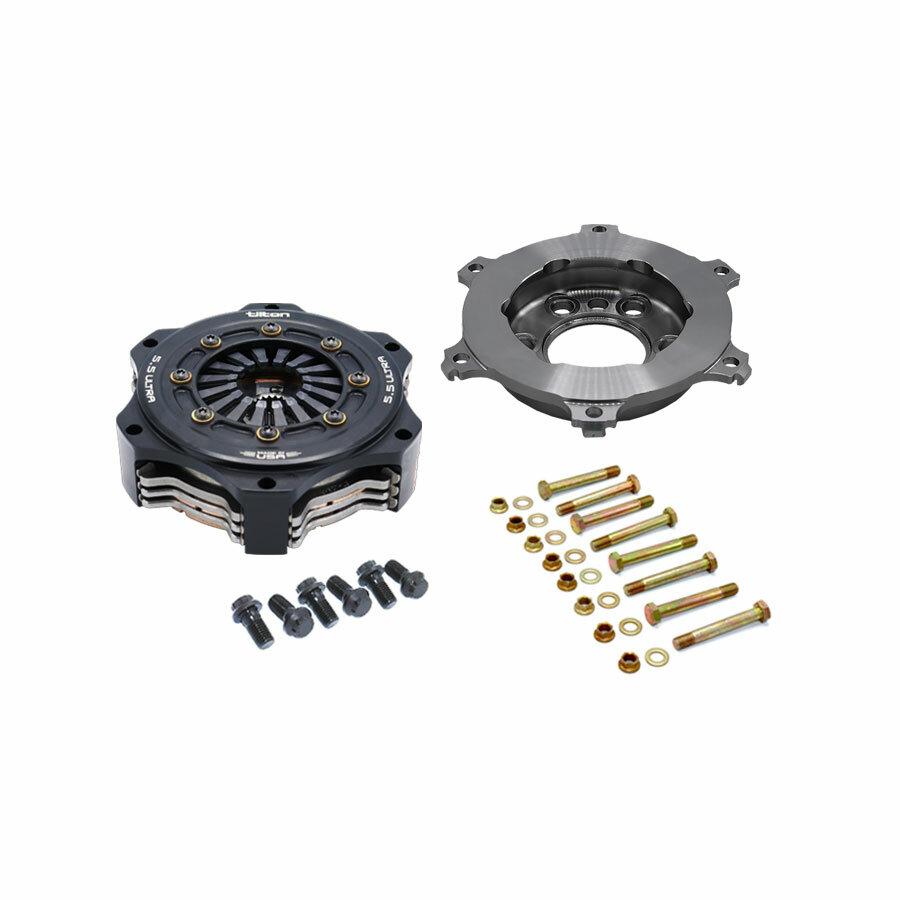

Tilton Racing BUTTON CFA, CHEVY (LS), 5.5" 3PL ULTRA, FINE SPLINE - 57-3436
Tilton’s 6-leg 5.5 ULTRA clutches are a direct replacement, and upgrade,
for the QM Optimum clutch and is Tilton’s lightest weight 5.5” metallic
racing clutch. 5.5 ULTRA clutches are designed & manufactured using
proprietary materials and manufacturing processes that increases service
life of the clutch internals. Featuring a rigid clutch cover that resists
deflection, with hardened steel thrust buttons installed into the legs, 5.5
ULTRA clutches provide the most durability and highest performing clutch
for the money bar none.
Features
– Tilton’s lightest 5.5” metallic racing clutch
– Direct replacement for QM 6-leg 5.5” clutches
– Clutch cover leg design, with hardened steel thrust buttons, is the most
durable on the market
– Accepts Tilton or QM 99-tooth and 110-tooth cover-mount ring gears
– 750 lb-ft capacity for 3-plate clutch. 500 lb-ft capacity for 2-plate
clutch.
Weight
2-Disc Button Clutch Weight:
7.0 lbs
3-Disc Button Clutch Weight:
8.4 lbs
2-Disc Clutch & Discs: 4.9 lbs
3-Disc Clutch & Discs: 6.3 lbs
5.5 ULTRA Button Clutch Assemblies
include clutch, friction discs, button flywheel, clutch bolts and flywheel
bolts.
