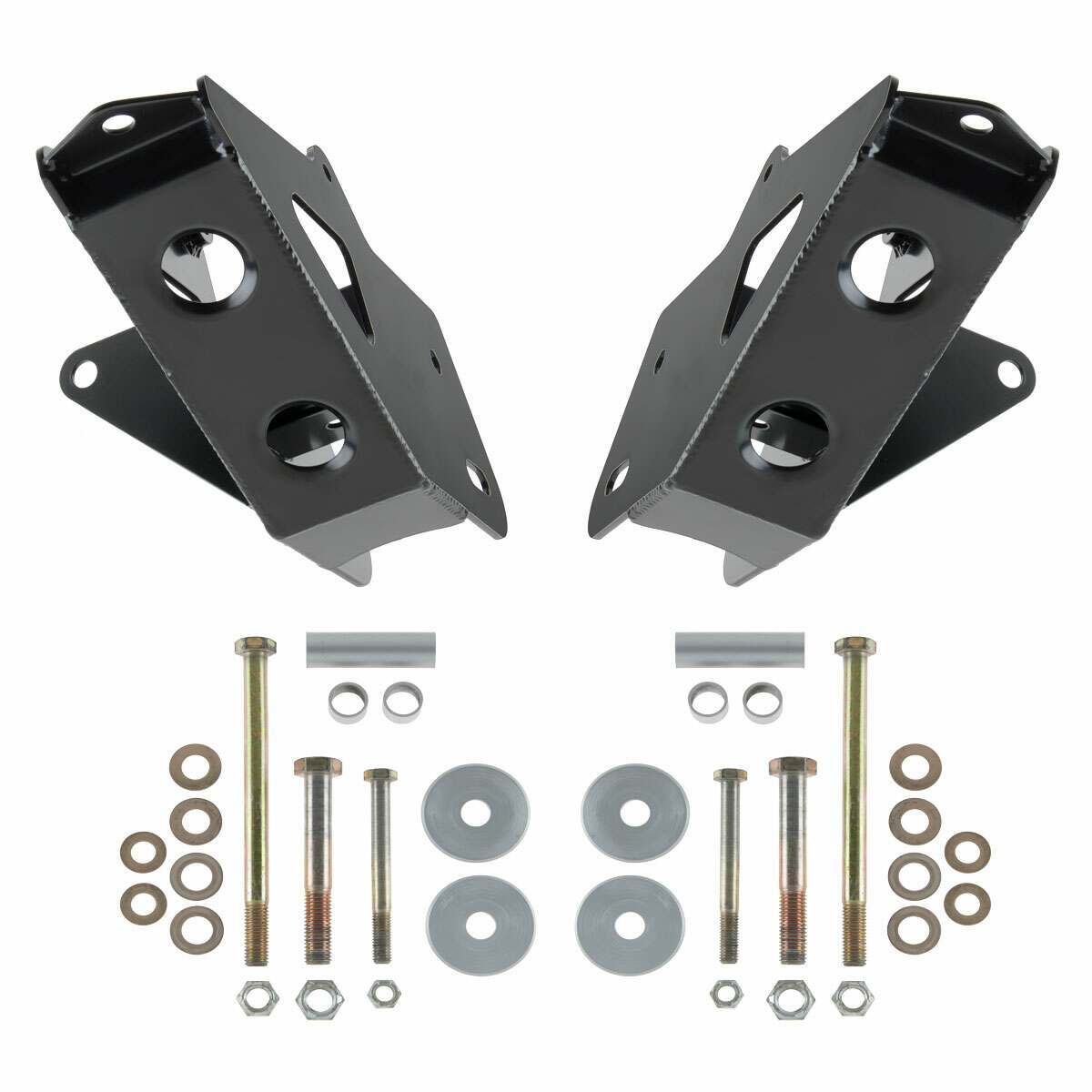

Synergy MFG Ram Front Radius Arm Drop Brackets Synergy MFG (2013-2018 3500, 2500) - 2494667
Synergy Ram Truck Radius Arm Drop Brackets improve ride quality by lowering the radius arm mounting locations at the frame to maintain factory front suspension geometry for leveled and lifted trucks. Flippable cam spacers in the drop brackets allow the user to run the axle 1/2 inch forward for leveled trucks or 1-1/2 inches forward to clear larger tires and taller lifts.
Fits: 2014-present RAM 2500/2013-present RAM 3500
Features:
- Improved ride quality by maintaining factory suspension geometry at lifted ride heights.
- Adjustable axle placement for oversized tires and taller lifts.
- Drop brackets lower the front control arm mounting position 3 inches at the frame side.
- Maintains factory geometry on lifted vehicles. Bolt-on design allows installation with simple hand tools.
- CAD designed from heavy duty 3/16 inch steel plate and includes an integrated, crush resistant, grade 50 A-572 steel skid plate.
- Stainless steel flippable cam spacers allow the axle to be located 1/2 inch forward or 1-1/2 inches forward to allow clearance for larger tires and taller lifts.
- Drop brackets do not need to be removed to service the drivetrain.
- Suspension components feature an abrasive resistant powder coat finish for maximum durability and corrosion resistance.
Notes:
- Designed to be used with 2.5 - 6 inch front lift springs.
- Recommend having the truck aligned after installation.
- Running the axle 1-1/2 inches forward may require a driveshaft spacer or lengthened driveshaft.
- Running larger tires with the axle 1-1/2 inches forward will require an aftermarket front bumper or trimming of the stock bumper.
- Running the axle 1-1/2 inches forward may require sway bar relocation brackets.
