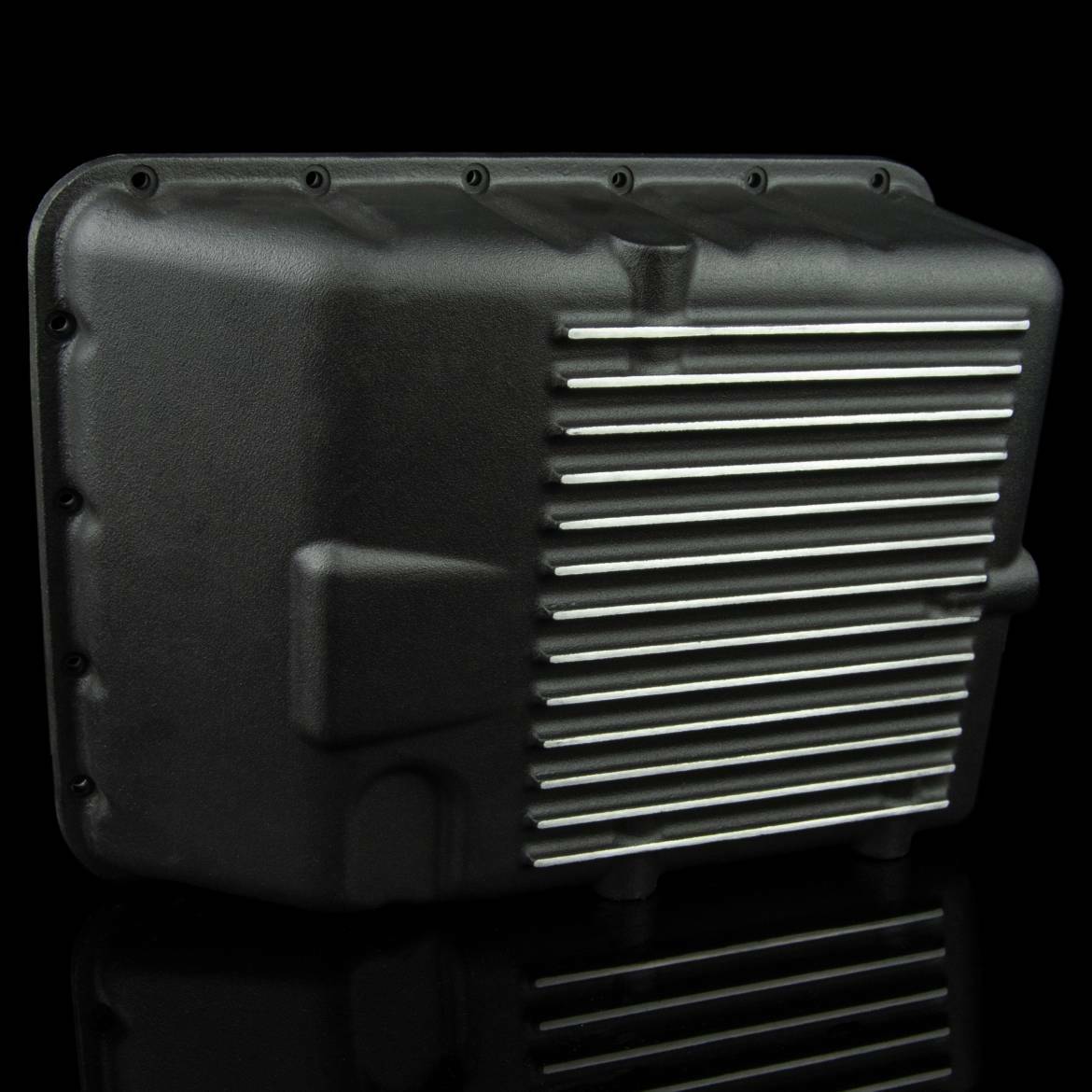

SunCoast Performance AS69RC PML DEEP PAN - CAST BLACK FINISH - SC-AS69-DB
AS69RC PML DEEP PAN Features Include The Following: - Increased oil capacity for cooler temperatures
- Sand-cast aluminum with raised fins
- 3/16-inch thick wall construction to add strength to the transmission case
- 3/8-inch thick gasket flange will not bend when bolts are tightened
- Machined gasket surface for a secure seal
- Boss cast into pan can be machined for a temperature sensor
- Drain hole and magnetic drain plug for easier, less messy maintenance
The Aisin AS69RC transmission is found in 2013 and newer Ram 3500, 4500, 5500 trucks with the 6.7 Cummins Diesel. This PML pan features heavy duty construction, extra capacity, drain, and cooling fins. PML designed this pan to provide as much clearance as possible to the bolts at the rear of the pan. There is a cross member below these bolts and to access them on the stock pan or the PML pan, you will probably need to jack up the transfer case. This pan works with the stock gasket and filter. PML provides new mounting bolts and a magnetic drain plug with the pan.
