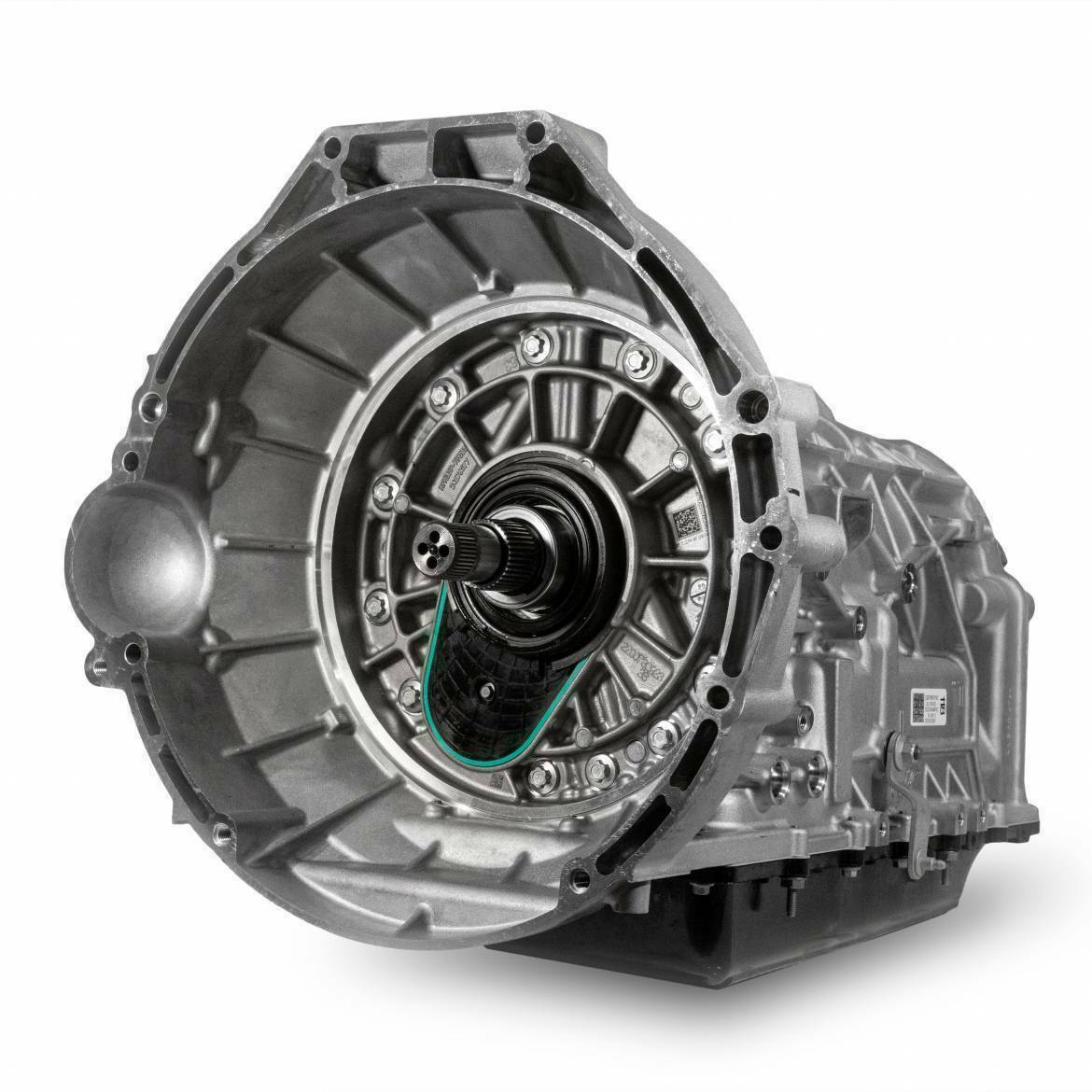

SunCoast Performance 600Hp Category 1 10R80 Transmission - SC-10R80-1-TRANS
Car makers don’t often collaborate on projects, especially when they’re direct competitors. However, looming government fuel economy and emissions mandates can make strange bedfellows. And so, the Ford 10R80 10-speed automatic transmission was born. It was co-developed with General Motors, although Ford apparently took the engineering lead on the design. The mission was to create a 10 speed transmission that could improve both the fuel efficiency and performance of high-horsepower engines. The resulting Ford 10R80 transmission was advanced enough to handle the power of the Ford Mustang GT 5.0 and Ford F150 Raptor, while improving the efficiency of the Ford Expedition and Lincoln Navigator.
Like it or not, a CVT transmission is one of the most efficient gearboxes ever invented. Because there are no actual gears, optimal engine speed can be continuously maintained depending on the load. This allows for seamless acceleration under hard throttle, and lower fuel consumption when you’re just cruising. On a traditional geared transmission, a certain amount of energy gets lost every time a gear ratio is changed. This penalizes both fuel economy and performance, because the engine has to climb back to the RPMs it was just at. The Ford 10R80 10-speed transmission is designed to combine the efficiency benefits of a CVT, with the stepped feel of a traditional automatic transmission.
To create this optimal blend of performance and efficiency, the 10R80 transmission has a wide 7.39 gear ratio spread and a low 4.70 first gear for maximum performance off-the-line. Even though this Ford 10-speed automatic transmission has such a wide gear ratio, it has extremely small steps between the gears. This means the engine RPM only drops (approximately) 20% with each shift, which keeps the engine in the ideal RPM range to achieve either peak performance or efficiency (much like a CVT transmission). The Ford 10R80 also has three overdrive gears, which it can downshift from very quickly.
10R80 Transmission Gear Ratios
First – 4.70
Second – 2.99
Third – 2.15
Fourth – 1.80
Fifth – 1.52 |
Sixth – 1.28
Seventh – 1.00
Eighth – 0.85
Ninth – 0.69
Tenth – 0.64 |
As shown above this, transmission offers a beautiful shift recovery in every gear, which lends itself the perfect unit for narrow power bands. This allows the use of much larger camshafts in a naturally aspirated application. If you are looking into going to a forced induction setup, this shift recovery allows for larger turbo and AR housing for max performance.
Newly Designed Thermal Flow Control Filter
This 10R80 transmission has a newly designed filter has two types of media: fine and course. The course medium is common in most filters (orange filter paper), while the fine filtration (White paper) is the newer material. There is a thermal plate inside the filter that separates the course and fine media. When the oil is colder (higher viscosity) at startup, the fluid will flow through both the fine and course filter media.
As the fluid heats up (less viscosity), the thermal plate will bend and restrict the coarse section; directing most of the fluid through the fine medium, and therefore, catching more of the finer debris once the fluid is heated, giving it a far superior filtration system.
This new SunCoast 10R80 transmission comes with a new factory filter to ensure zero flow issues.
The 10R80 Transmission
This Suncoast 10R80 transmission comes with Raybestos GPZ clutches and upgraded steels in all clutch packs. Raybestos Powertrain GPZ friction plates greatly increase transmission performance and durability. This state-of-the-art friction material far exceeds OE material to withstand high stress, high temperatures and repeated cycling. GPZ's outstanding performance benefits are perfect for heavy-duty vehicles and high-stress driving. Testing of GPZ revolutionary friction material shows that it outperforms OE materials by as much as 20%. Plus, its performance improves as the power increases.
These new GPZ clutches withstand higher horsepower and the increased friction coefficient allows a greater torque capacity. This increased torque capacity is critical when using the vehicle under more demanding driving situations. This, coupled with our upgraded Pro-loc 10R80 Valve Body and our improved high-output Pump Assembly make this a great transmission replacement for mid-level performance vehicles.
Advantages:
- Withstands high horsepower
- Greater torque capacity
- Maintains piston travel
- Optimum performance
- Higher heat resistance
- Smooth engagements
- Enhanced shift feel
The Pro-Loc Valve Body
The SunCoast 10R80 Pro-Loc Valve Body begins as a new OE Ford valve body. We then proceed to address a few of the critical circuits we have experienced premature failure on.
This new SunCoast 10R80 Valve Body corrects issues with the lock-up circuit. This problem can be magnified in situations where there is higher driver demands, such as heavy towing or aftermarket converters with higher turbine slip, ultimately leading to accelerated torque converter clutch degradation. The SunCoast 10R80 Valve Body corrects this circuit, delivering cleaner and quicker converter apply. This prevents not only excessive heat, but also prevents premature clutch failure.
The Pro-Loc High Output 10R80 Pump
With the Ford 10R80 Transmission, we have witnessed inconsistent pressures and cavitation at higher RPM. This can be witnessed in critical high RPM shifting above 8,000 RPM. The new SunCoast Pro-Loc High Output 10R80 Transmission Pump will increase line pressure by approximately 60psi across the entire line pressure curve without any additional tuning. With factory tuning, line pressure will go from 65psi at idle to 135psi and at wide open as much as 350psi. We also eliminate the self-regulating feature, keeping consistent and reliable line pressure across the entire RPM range. This new pump comes in every new SunCoast 10R80 transmission.
- NEW SOLENOID STRATEGIES MUST BE REPROGRAMMED UPON REPLACEMENT OF THIS NEW VALVE BODY THROUGH FORD IDS OR FORSCAN.
- This Transmission comes without a new torque converter; at power levels above factory 500 horsepower, the factory converter clutch is not recommended due to its inability to successfully hold the additional torque.
