Features
• Independent external adjusters
• 3 1/8 turns of extension adjustment
• 13 compression settings
• Provides a wide range of control
• Allows quick adjustments for varying conditions
• Integral coil-over body
• Permits easy changes in ride height
• Custom valving available upon request
• Ability to be rebuilt or revalved
Application
2015-2026 Mustang
Description

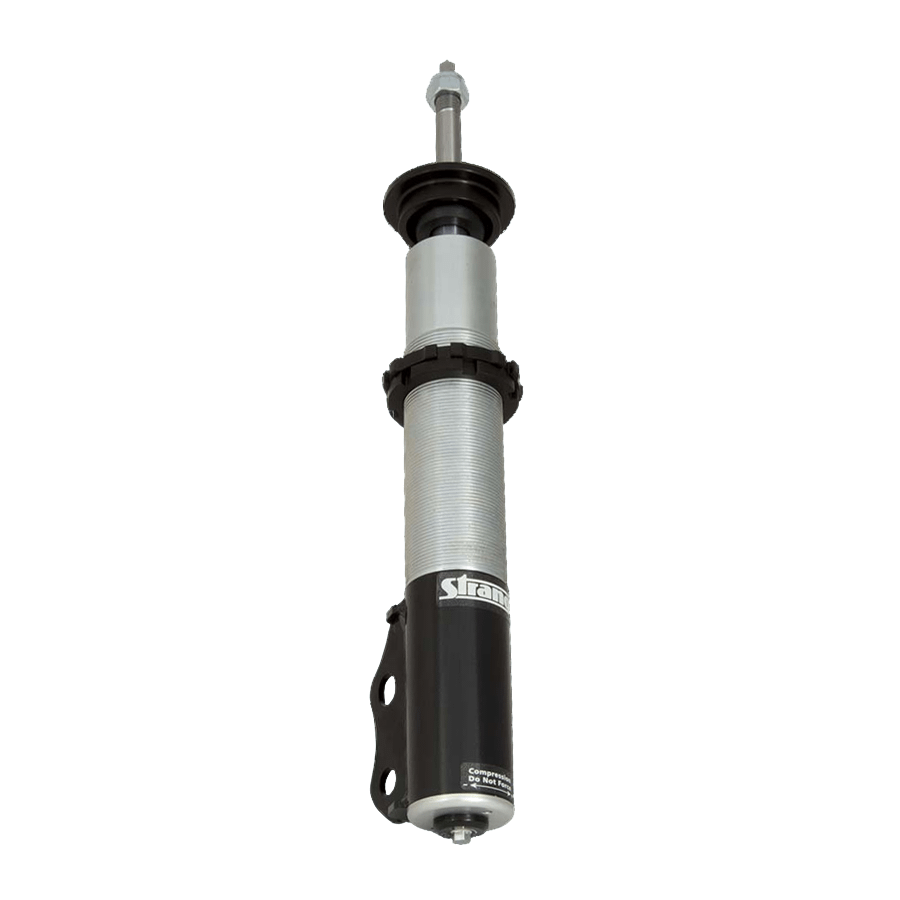

Double Adjustable Steel Strut
Drag Race Only – Sold as each
Struts are not equipped with tabs for sway bar, brake lines, or ABS sensors
Insufficient clearance for GT500 Shelby wheels
Requirements
Caster / Camber Kit
14″ x 2.5″ ID Spring
Adjustments
Extension Settings
Softer – Allows for more weight transfer
Stiffer – Enables quicker reaction times
Compression Settings
Softer – Improves reaction to bumps in the track
Stiffer – Dampens impact forces from wheel stands
Spring – Sold Separately
Recommendation
14″ x 2.5″ ID spring – 150 lbs
Some builders may prefer a different rate or 12″ spring
Consult your chassis builder for any suggestions
Related Components
14″ x 150 lbs springs……………… SP14150
Spring seat bearing kit……………. S1409
Spring seat adjuster wrench…… S1413
