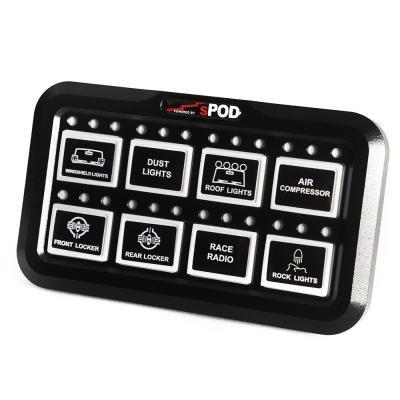

sPOD Add On HD Switch Panel For 8 Circuit Systems - 8800HDADD
Add-On HD Switch Panel For 8 Circuit Systems.
Included:
- 10 Foot Ethernet control cable
- HD Switch Panel w/ mounting bracket (see picture) and necessary hardware (other universal mounting options are available)
- Legends (sheet of 72 standard switch reusable labels)
- Installation Instructions
HD Switch Panel Features:
- Encased in an aluminum billet machined housing, powdercoated black, utilizing tactile switches encapsulated in silicone.
- Silicone Buttons with positive touch feedback.
- Bluetooth LE
- Panel is designed to withstand the harshest environments with all weather conditions taken into account.
- Compact in size: 2-7/8W x 4-7/8L x 1/2 Thick (smaller than an iPhone).
- Universal back with two pressed-in 1/4-20 studs x 5/8 inches long for flat mounting.
- Standard universal articulating mount for a multitude of mounting options.
- One standard RJ45 jack on back for communication cable between HD panel and the Source.
- HD can be located up to 25 feet from the Source using standard CAT-6 Ethernet cable.
- Built in Bluetooth LE allows you to program and control our system with iPhones, iPad, iPad Mini, sPOD HD app. (free download)
- Each switch programmable for dimming, flash, momentary, strobe, and switch linking (program any switch to be a master to control other switches).
- All 8 switches are RGB backlit.
- Adjustable timer to turn backlight off and a simple touch on any switch to reactivate.
- Quickly turn backlight off by holding 2 designated buttons.
- Backlight color and intensity can be changed to any color to match vehicle interior dash lighting.
- Legends can be applied (comes standard with one sheet of 72 legends).
- Each switch has 3 status lights: Red (left) = On, White (center) = Flash/Strobe active, Blue (right) = Active visual feedback when button is pushed.
- Status lights can be dimmed.
- Additional HD smart controller can be added for different locations.
- HD can run in conjunction with our SE Touchscreen, Bluetooth and SE 8 Switch panel.
Bluetooth Requiments:
- Download sPOD Bantam app from iTunes or Google Play Store
- Bluetooth 4.0 compatible
- Compatible with Android devices
- iPhone 4s or newer, iPad 2 or newer, iPad mini iOS 7 or newer
- Existing sPOD system
- Access to iTunes App Store or Google Play Store
Notes:
- The HD will go into Deep Sleep after 6 hours of inactivity (ie: no usage of the HD or not running the engine). Once in deep sleep, the HD will turn off any accessories that were left on (including refrigerators!).
- The primary reason for the Bluetooth integrated into the HD panel is for programming purposes, and not for remote control due to the limited range.
- HD housings are precision machined billet aluminum which contribute to the distance limitations.
- Ranges may vary from 5 feet up to 15 feet depending on location of the HD, the surroundings, phone type, phone cover and many other variables.
