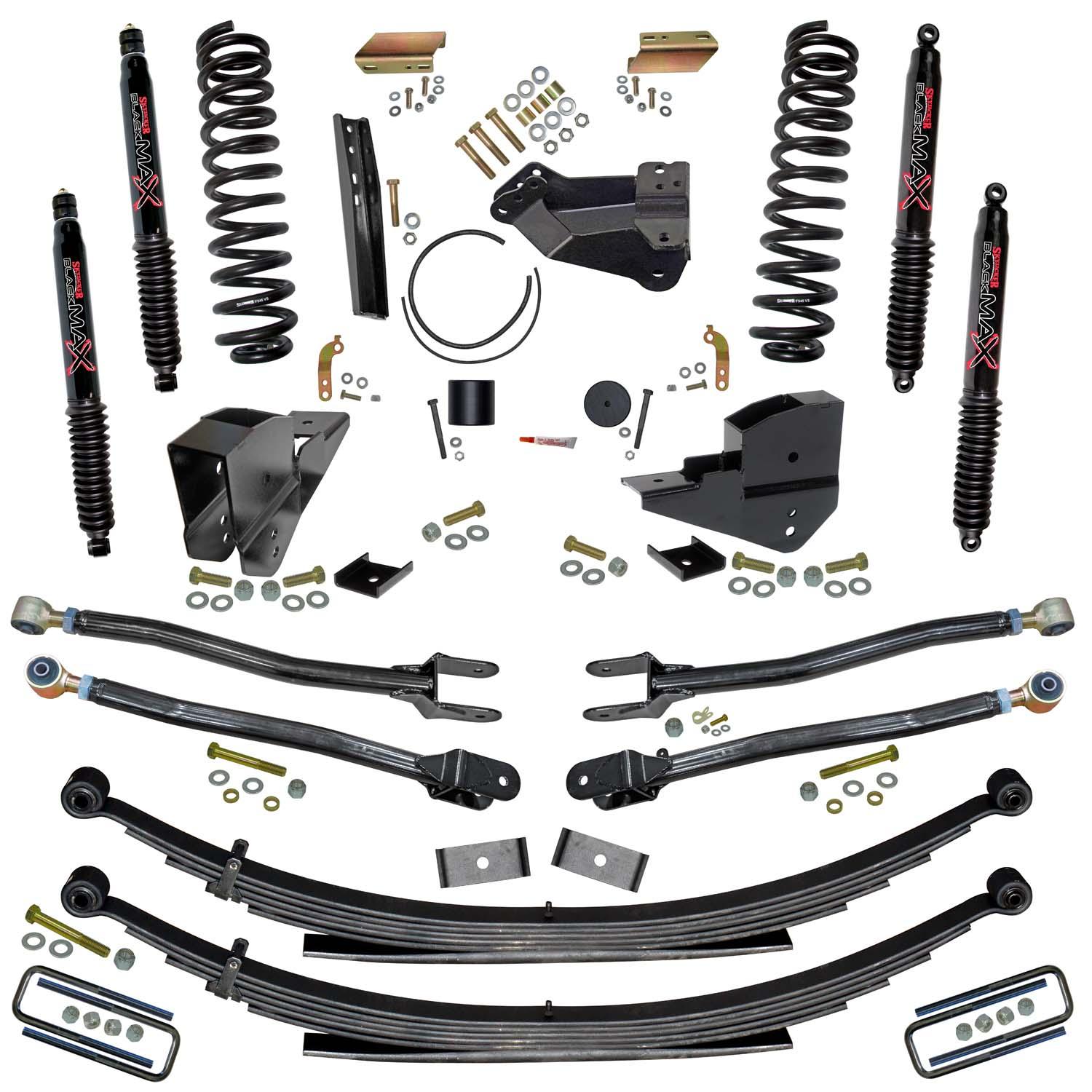

Skyjacker 4 Inch Lift Kit with Coils, Leafs, 4-Link Conversion and Black MAX Shocks (2023-2024 F-250 Super Duty, F-350 Super Duty) - F234524KS-B
Skyjacker re-engineered the Super Duty's suspension via an impressive 4-Link Conversion. Replace your OEM radius arms with integrated radius arm drop brackets plus upper and lower adjustable control arms. Formed from 2-inch OD x 0.188 wall DOM tubing, both pairs of control arms are adjustable Flex Links. The adjustability allows proper caster settings to improve handling.
Flex Links have a forked clevis end at the lower axle mount. The upper bracket mount has 1-1/4 inch forged rod end with Rubber Encased bushing.
Skyjacker's legendary Softride technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the coil spring. Skyjacker specifically engineered this Variable Rate Coil Spring for the F250 4WD Diesel to deliver a smoother ride.
An ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement in this critical high-stress area and to keep the axle centered. The sway bar lowering brackets realign the front sway bar working angle to achieve maximum sway control.
Drop spacers reposition the front bump stops. Front brake line extension brackets correctly reposition the brake lines. A heavy-duty steering stabilizer relocation bracket corrects and enforces the stabilizer connection.
Skyjacker Softride leaf springs are individually shot-peened with hard steel pellets at very high velocities. Softride springs also have tapered leafs to distribute loads more evenly and to create more flex at the leaf ends. Teflon wear pads between leafs and bolt style spring clips prevent binding and eliminate friction.
Shocks are a key link in-between the chassis and the moving parts of your suspension. Front and Rear damper capacity enhanced with Black MAX Shocks. Black MAX Shocks have specific valving and stroke for this application. Black MAX's Advanced Foam-Cell technology increases performance and style to deliver a smooth, comfortable ride.
Together this complete kit improves handling with incredible ride quality. Reap the benefits: On-Road Refinement and Off-Road Readiness.
Features:
- Black MAX Has Nitrogen Gas Charged\Twin-Tube Construction.
- Black MAX Engineered with Advanced Foam-Cell Technology.
- Black MAX Valve Tuned Specific with 30 Percent More Fluid.
- Black MAX Shocks Have 180 Degrees Directional Mounting.
- 35's Improve Your Off-Road Stance and Gain Ground Clearance.
- Increase Travel with Impressive 4-Link Flex Ride Enhancement.
- Yields More Lift in the Front for a More Level Stance.
- Softride Technology Enhanced Variable Rate Coil Springs.
- Skyjacker Softride Technology Heightened Leaf Springs.
- Radius Arm Mount Drop Brackets Properly Corrects Caster.
- Ultra Heavy-Duty Track Bar Bracket Keeps the Axle Centered.
- Bump Stop Spacers Keep Suspension Travel Safely in Check.
Includes:
- 4 In. Lift Kit With Front Coil Springs
- Track Bar Bracket
- Stabilizer Bracket
- Sway Bar Brackets
- Brakeline Brackets
- Radius Arm Brackets
- 4-Link Arms
- Rear Leaf Springs
- U-bolts
- Black MAX Shocks
Fits:
- 2023-2024 Ford F-250/F-350 Super Duty Diesel
Fit Notes:
- Does Not Fit Models With Gas Engine.
- Does Not Fit Dually Models.
- Does Not Fit Models With 4 Inch Axle Tubes.
- Does Not Fit Models Equipped With LED Projector Headlights/Auto Leveling Headlight Function.
- Does Not Fit Models Equipped With Onboard Scales/Smart Hitch.
- Tremor Models Will Not Achieve Full 4 Inches Over OEM Ride Height.
