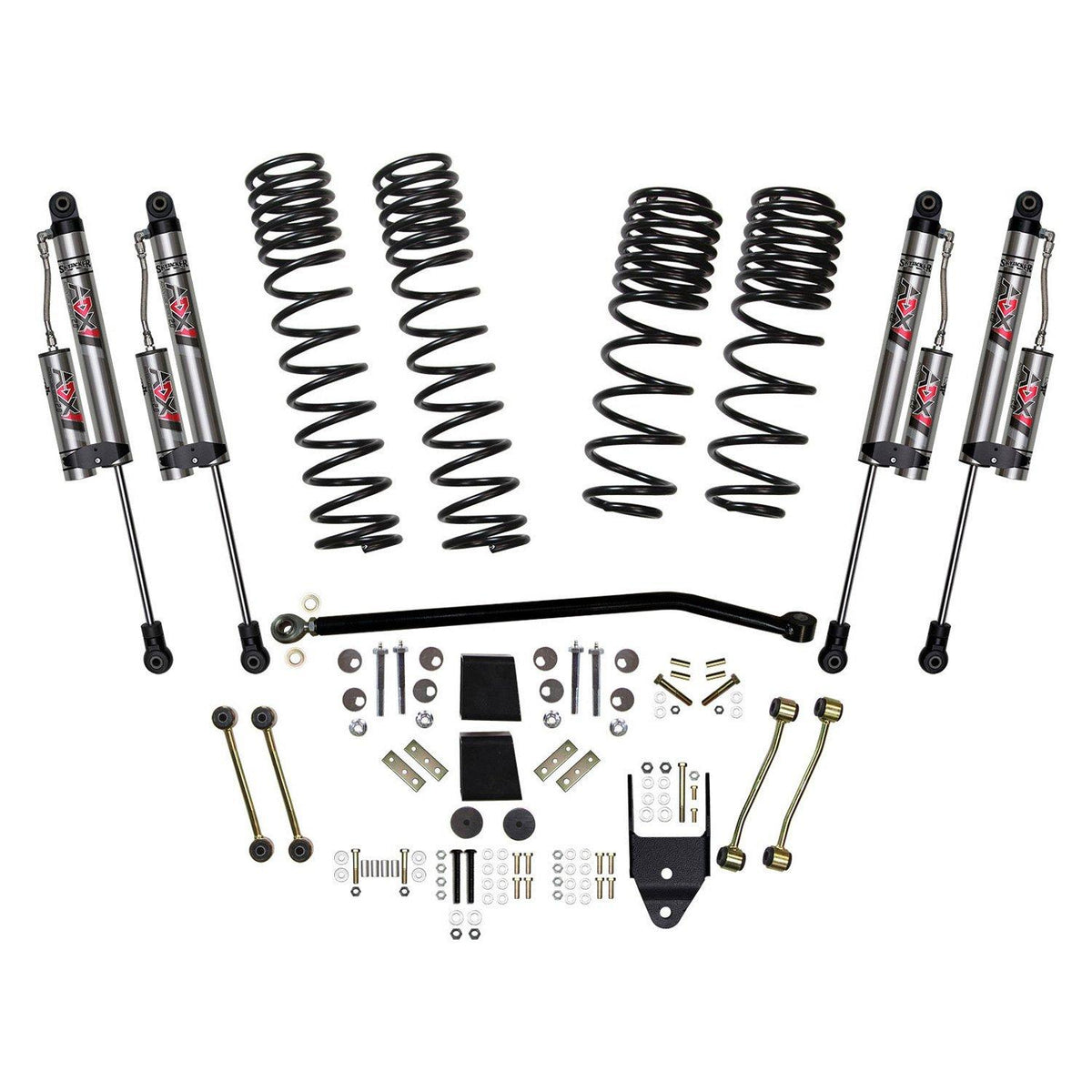

Skyjacker 3.5 In. Suspension Lift System - JL35R3BKXLT
The biggest determining factors in ride quality and suspension performance are coil springs and shocks. Skyjacker specifically engineered a progressive 2-stage dual rate long travel coil. Spring rate progression is from a 1st Flex Rate to a 2nd Ride Rate. The 1st Flex Rate stage delivers a comfortable ride with the ability to flex for increased articulation. The flex rate expands during full articulation as the suspension drops (full droop). This keeps the coil springs seated in the upper coil mount/bucket and the tires in contact with the terrain. The 2nd Ride Rate stage only engages after compression past the flex rate. Engineered to coordinate with the Wrangler's distinctive suspension handling characteristics the rear coils are side specific. Shocks are a key link in-between the chassis and the moving parts of your suspension. Skyjacker's ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks deliver modern technology in the design with an innovative off-road race-inspired full-displaced valving system. Engineered for higher speed applications remote reservoir shocks still perform at crawl. The external remote reservoir separates the nitrogen gas from the oil with an Internal Floating Piston (IFP). The majority of the reservoir contains pressurized nitrogen gas. The IFP prevents the gas and oil from mixing or foaming (cavitation). The replacement Front Adjustable Track Bar includes Skyjacker installed pressed-in HD OEM style rubber bushing and an adjustable 3/4- in. Heavy-Duty Rod End Jam Nut and Alignment Bushings. A heavy duty Rear Track Bar Upper Mount Bracket is included to center the axle under the vehicle properly. Front and Rear Bump Stop Spacers bolt onto the axle bump pads and keep the suspension travel safely in check. Front and Rear Extended Length Sway Bar End Links allow full articulation as the suspension drops (full droop). These sway bar end links include Skyjacker installed pressed-in HD OEM style rubber bushings.
More Aggressive Off-Road Stance With Comfort And Stability
Works With OEM Electronic Stability Control (ESC) System
Straight Bolt-On/Direct Fit/Simple Remove And Replace
Aggressive Look/Unparalleled Performance/Impressive Ride
Flex Stage/Ride Stage Dual Rate Long Travel Coil Springs
Extended Length Sway Bar End Links Allow Full Articulation
ADX 2.0 Reacts Quicker To Improve Handling And Stability
ADX 2.0 Aluminum Monotube Provides Better Heat Dissipation
ADX 2.0 Teflon Banded Piston True Reaction Adds Stability
IFP Technology Provides Quickest Shock Reaction Time Ever
Drives Like A Performance Handling Suspension Package
Engineered To Maintain Proper OEM Suspension Geometry
