Crankcase Vent Side Catch Can Kit
Under normal conditions, the crankcase side of the ventilation system is the point where fresh air is drawn into the crankcase. However, under high engine loads, this becomes an exit point for crankcase pressure. When this happens, it is a good idea to have a catch can on the line to catch any oil blow-by that is coming out before it ends up in the air induction tube. The Radium catch can kit for the CCV side (p/n 20-0563) is an excellent bolt-in solution.

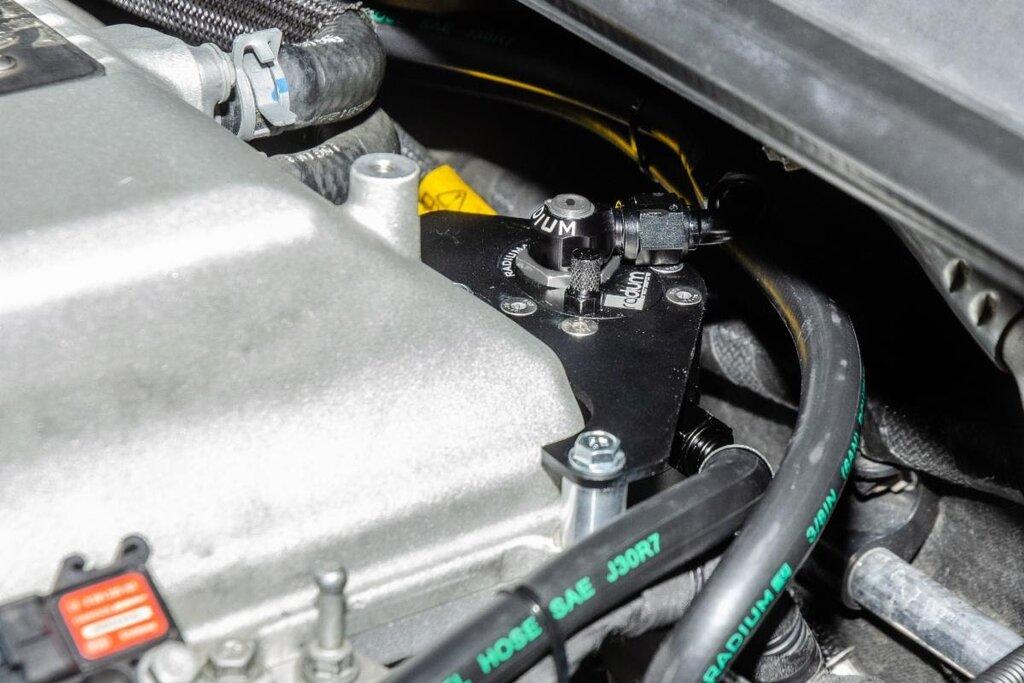

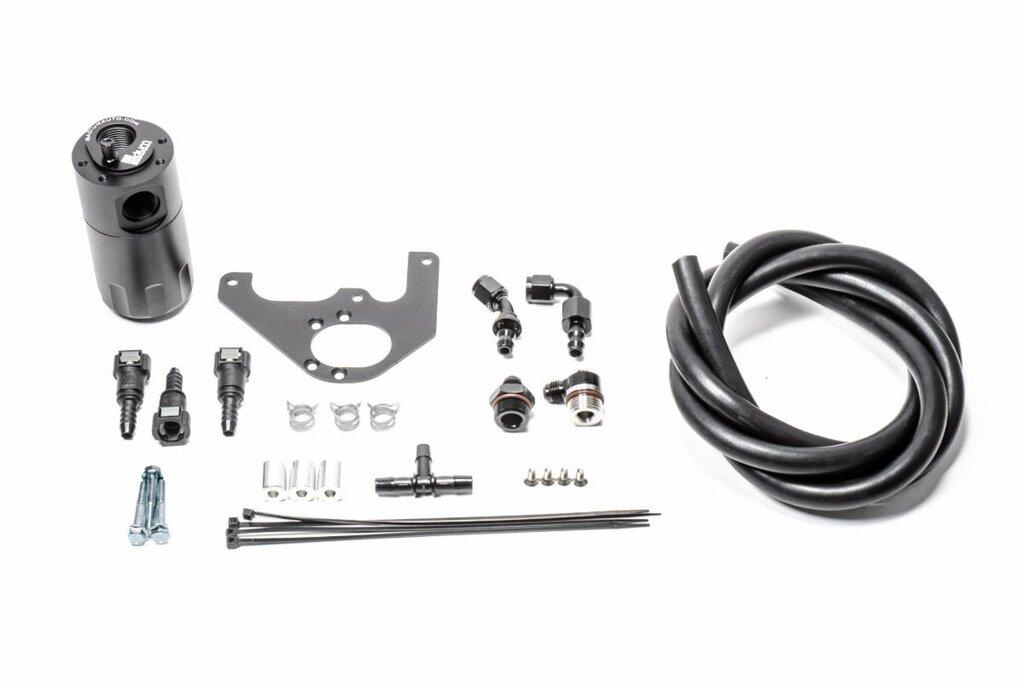

The kit includes a specially designed bracket that secures the catch can to the back of the supercharger, as shown in the above photo. The vents on the rocker covers are Y'ed together and route to the catch can inlet with 3/8" hose. The outlet of the catch can connects to the air intake pipe.
